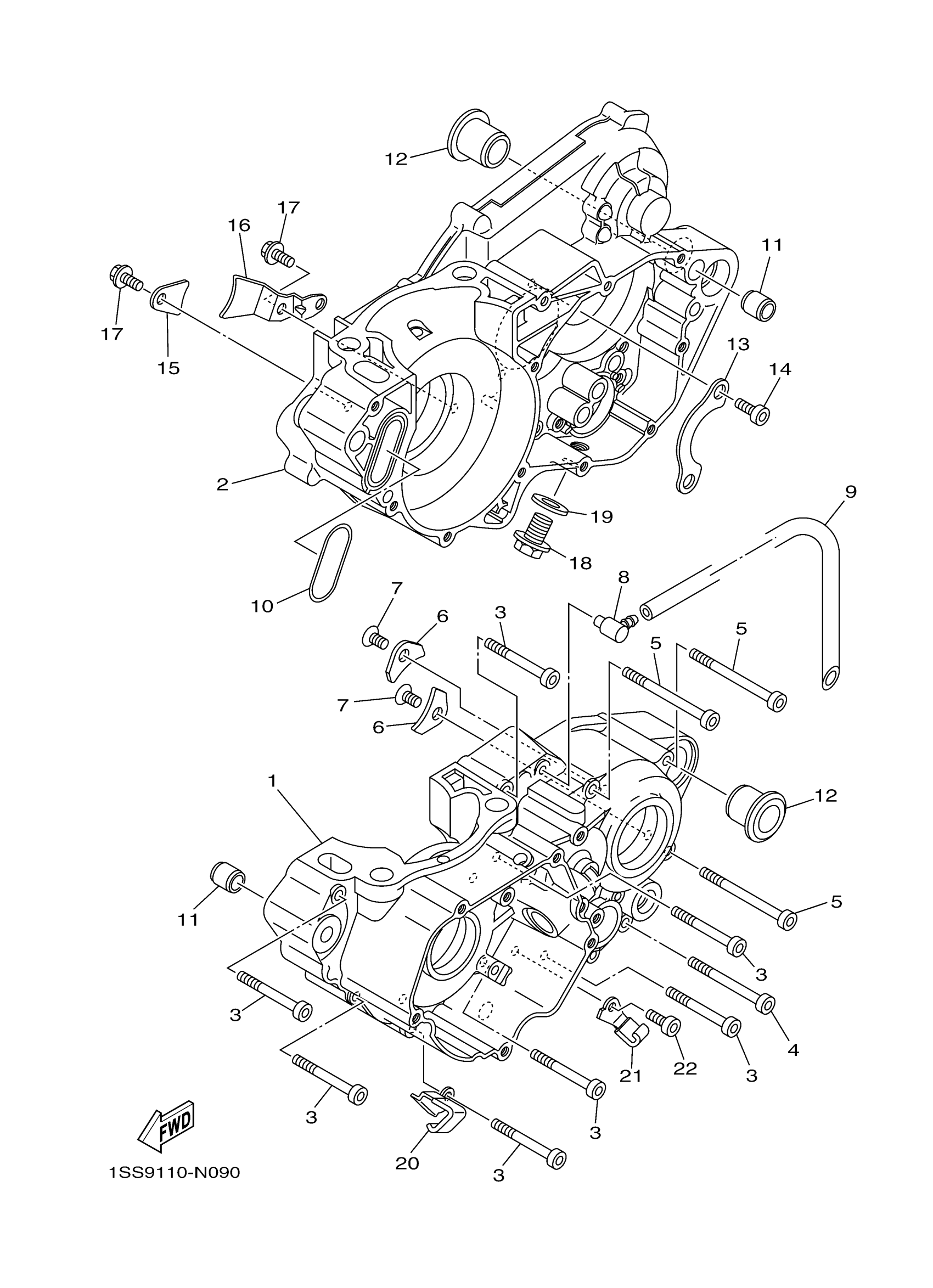

Yamaha YZ250RSE (YZ250 50TH) BCRK 2024 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

1P8-15111-01-00

$858.99

2

CRANKCASE 2

BF1-15121-01-00

$1,019.99

3

BOLT

91312-06050-00

$4.72

4

BOLT

91312-06060-00

$10.49

5

BOLT

91312-06070-00

$4.19

6

PLATE, BEARING COVER

4JT-15381-01-00

$13.49

7

SCREW, COUNTERSUNK

90151-06052-00

$8.49

8

CONNECTOR, SUCTION PIPE

353-13115-01-00

$6.99

9

HOSE (L340)

90445-08684-00

$4.29

10

GASKET 1

5CU-15454-00-00

$18.49

11

PIN, DOWEL(4XL)

93612-16254-00

$5.60

12

COLLAR

90387-18007-00

$34.99

13

PLATE, COVER

4L0-17471-00-00

$20.99

14

BOLT,SOCKET

91317-06012-00

$8.49

15

HOLDER

4V4-15118-00-00

$29.99

16

HOLDER

5CU-15118-10-00

Unavailable

17

BOLT, FLANGE

95817-06012-00

Unavailable

18

PLUG, STRAIGHT SCREW

90340-12006-00

Unavailable

19

GASKET (3JD1)

90430-12207-00

Unavailable

20

CLAMP

90462-08040-00

Unavailable

21

CLAMP

90462-08041-00

Unavailable

22

BOLT,SOCKET

91317-06012-00

$8.49
