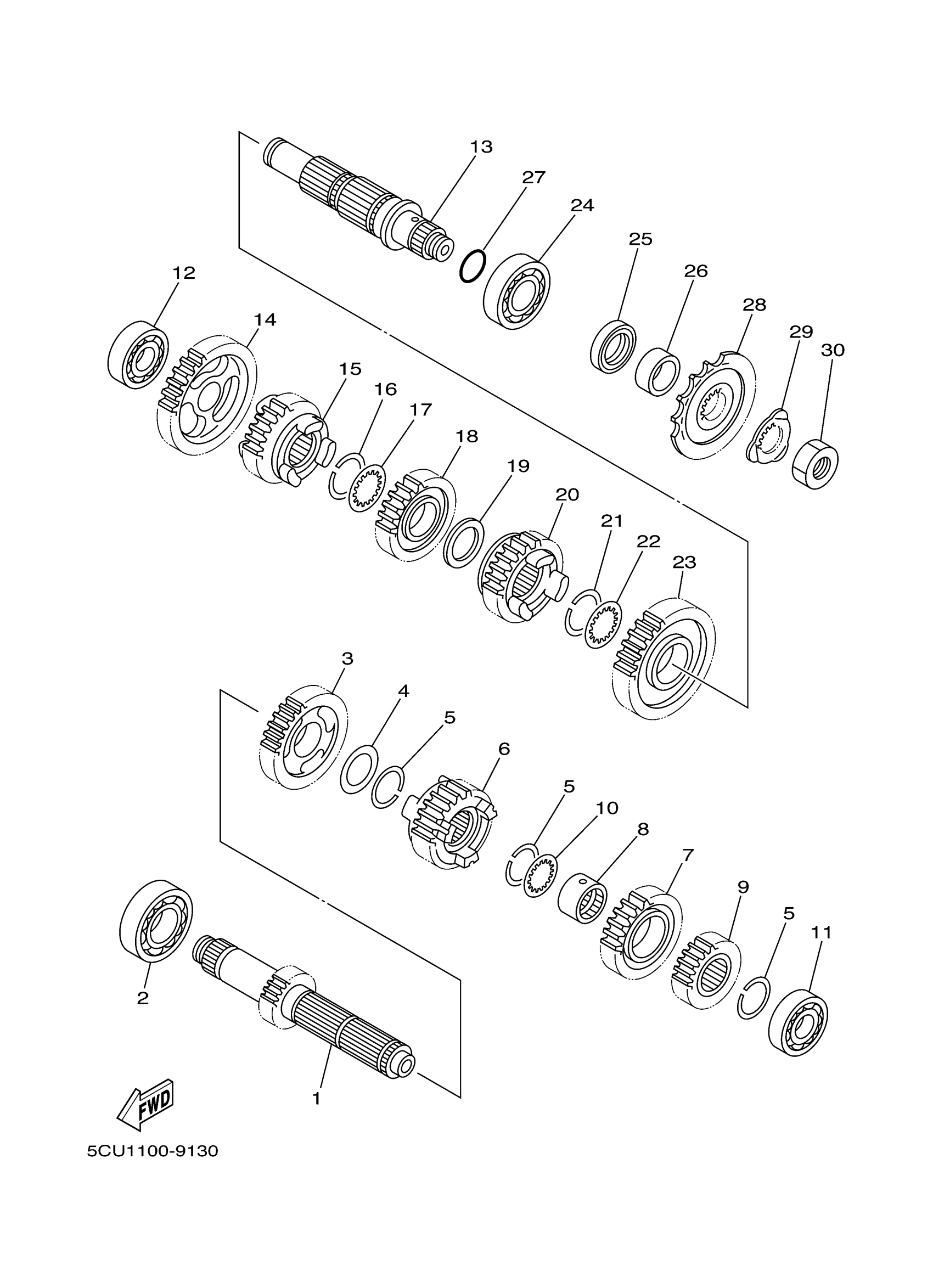

Yamaha YZ250RL (YZ250) BCRF 2024 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

5BE-17411-00-00

$135.99

2

BEARING (3R5)

93306-20540-00

$57.99

3

GEAR, 5TH PINION

5BE-17151-00-00

$85.99

4

WASHER, PLATE(59W)

90201-253K0-00

$8.49

5

CIRCLIP (4L0)

93440-25084-00

$5.60

6

GEAR, 3RD PINION

5CU-17131-01-00

$152.99

7

GEAR, 4TH PINION

5BE-17141-30-00

$138.99

8

COLLAR

90387-2113G-00

$40.99

9

GEAR, 2ND PINION

5JG-17121-10-00

$75.99

10

WASHER(3VD)

90209-21332-00

$7.49

11

BEARING(3XV)

93306-00442-00

$41.99

12

BEARING (5Y1)

93306-00426-00

$42.99

13

DRIVE AXLE ASSY

5BE-17402-00-00

$162.99

14

GEAR, 1ST WHEEL

5BE-17211-00-00

$131.99

15

GEAR, 5TH WHEEL

5BE-17251-10-00

$138.99

16

CIRCLIP (4L0)

93440-25084-00

$5.60

17

WASHER(3VD)

90209-21332-00

$7.49

18

GEAR, 3RD WHEEL

5BE-17231-00-00

Unavailable

19

WASHER, PLATE(59W)

90201-253K0-00

$8.49

20

GEAR, 4TH WHEEL

5JG-17241-00-00

Unavailable

21

CIRCLIP (2H7)

93440-28062-00

Unavailable

22

WASHER

90209-26348-00

Unavailable

23

GEAR, 2ND WHEEL

5JG-17221-10-00

Unavailable

24

BEARING(43G)

93306-20562-00

Unavailable

25

OIL SEAL (697)

93102-32M07-00

Unavailable

26

COLLAR

90387-2515B-00

Unavailable

27

O-RING

93210-22298-00

Unavailable

28

SPROCKET, DRIVE (13T)

9383E-13216-00

Unavailable

28

SPROCKET, DRIVE (14T)

9383E-14215-00

Unavailable

29

WASHER, LOCK(1KT)

90215-21256-00

Unavailable

30

NUT (2K7)

90179-20255-00

Unavailable
