Description

Price

1

FENDER, FRONT

BR9-21511-00-00

$32.99

2

COLLAR

90387-06259-00

$8.49

3

BOLT, WITH WASHER

90119-06268-00

$2.28

4

REAR FENDER COMP.

BCR-21610-01-00

$36.99

5

NUT, REAR FENDER

5XE-21635-10-00

$13.49

6

COLLAR

90387-06069-00

Unavailable

7

COLLAR

17D-14449-00-00

$7.99

8

COLLAR

90387-06009-00

$10.49

9

NUT, SPRING

90183-060A7-00

$8.49

10

BOLT, FLANGE

90105-06100-00

$7.49

11

WASHER, PLATE

90201-06032-00

$8.49

12

BOLT, FLANGE

90105-06102-00

$3.50

13

WASHER, PLATE

90201-06033-00

$2.97

14

BOLT, WITH WASHER

90119-06149-00

$8.49

15

GUARD, FLAP

5TA-21642-00-00

$39.99

16

SCREW, TAPPING

97702-60016-00

Unavailable

17

LABEL, CAUTION

3XJ-2415E-A2-00

Unavailable

18

LABEL, CAUTION

5PA-2118K-01-00

Unavailable

19

PLATE, COMPETITION USA

17D-2812P-00-00

Unavailable

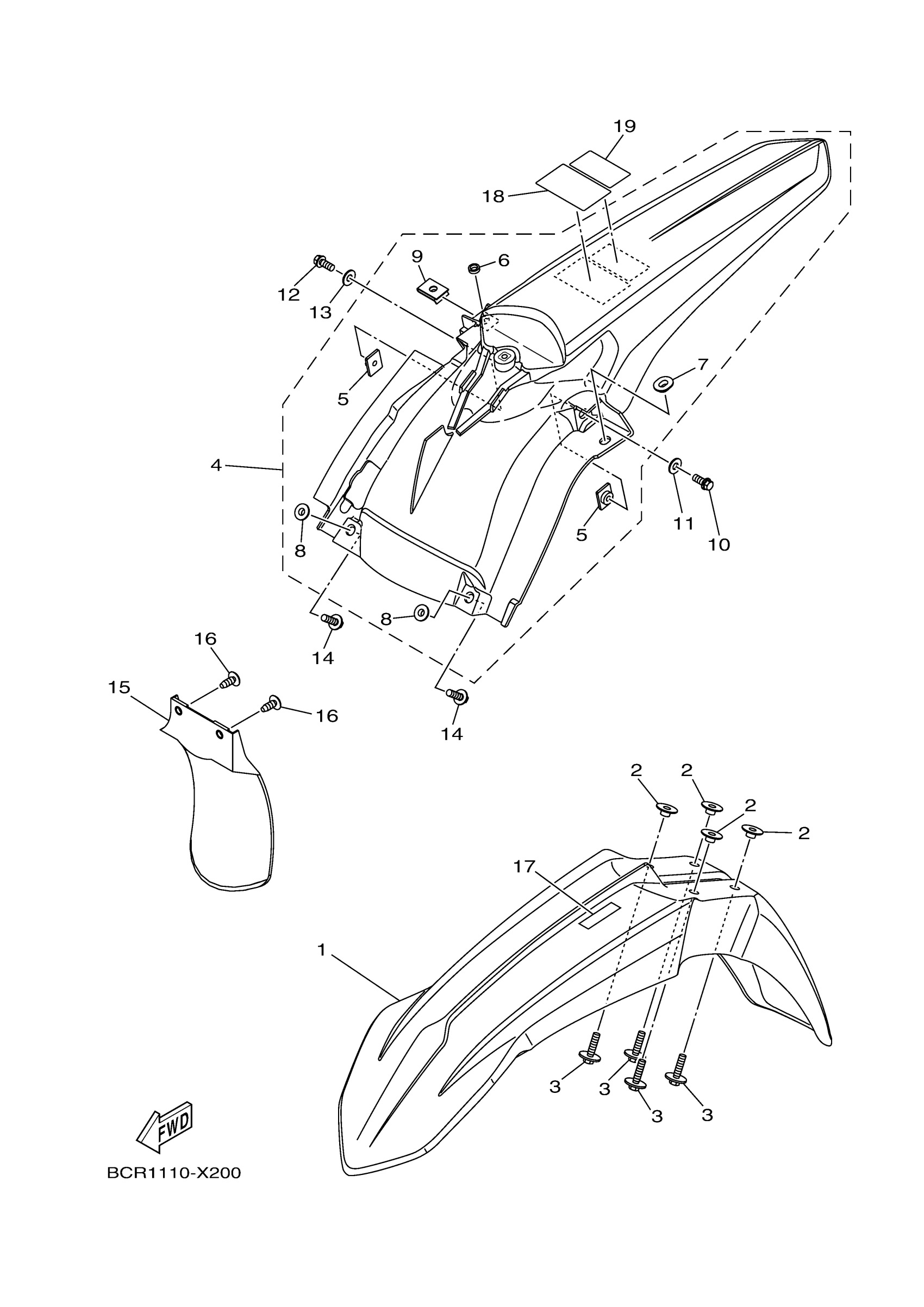

Yamaha YZ250RL (YZ250) BCRF 2024 FENDER Diagram

FENDER, FRONT

COLLAR

BOLT, WITH WASHER

REAR FENDER COMP.

NUT, REAR FENDER

COLLAR

COLLAR

COLLAR

NUT, SPRING

BOLT, FLANGE

WASHER, PLATE

BOLT, FLANGE

WASHER, PLATE

BOLT, WITH WASHER

GUARD, FLAP

SCREW, TAPPING

LABEL, CAUTION

LABEL, CAUTION

PLATE, COMPETITION USA
