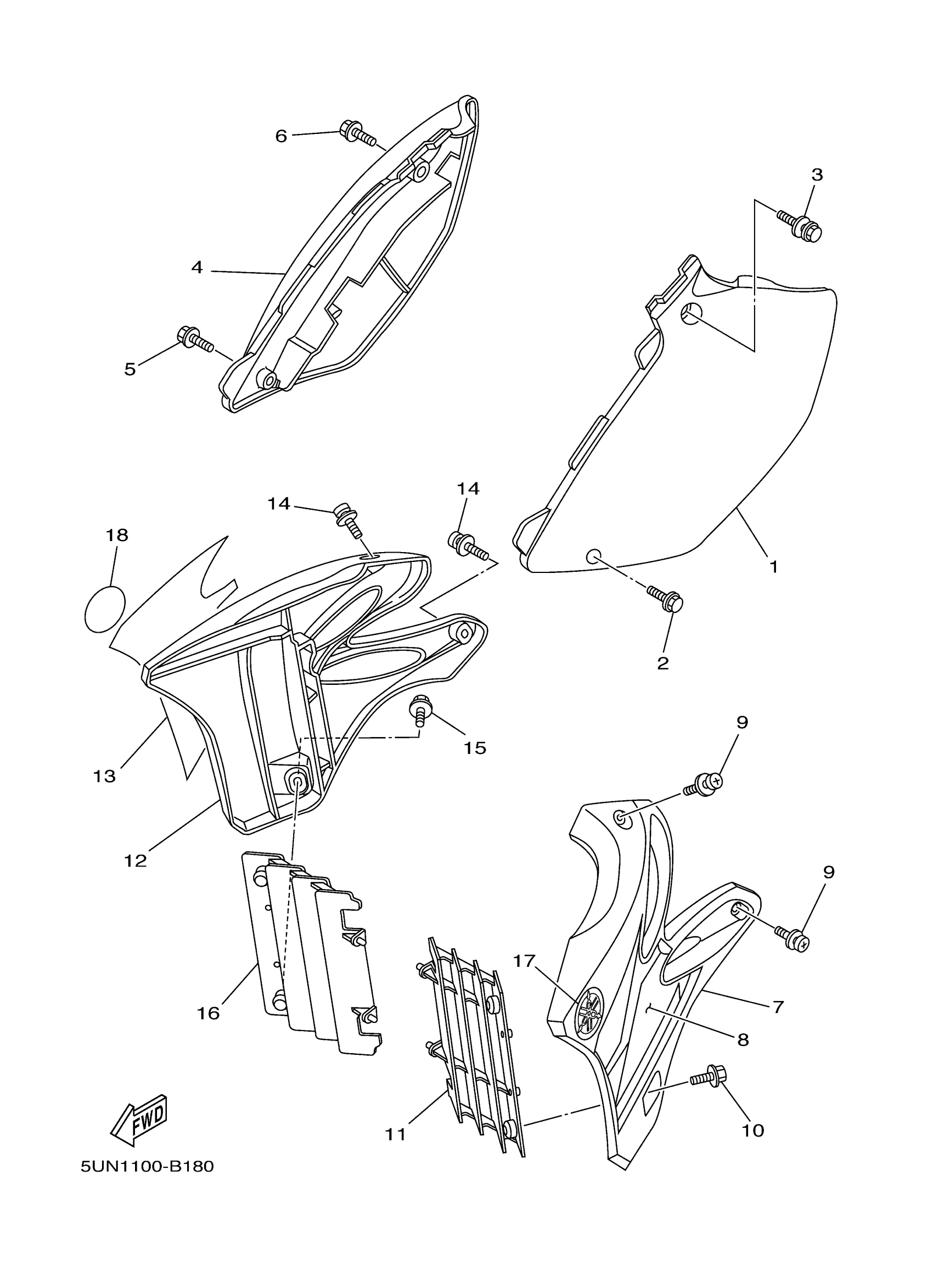

Yamaha YZ250R (YZ250) 5UP1 2003 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

5NY-21711-00-00

$31.99

2

BOLT, FLANGE

95817-06016-00

$2.75

3

BOLT, WITH WASHER

90119-08238-00

$4.29

4

COVER, SIDE 2

5NY-21721-00-00

$31.99

5

BOLT, FLANGE

95817-06016-00

$2.75

6

BOLT, WITH WASHER

90119-08238-00

$4.29

7

SIDE COVER ASSY 3

5NY-21730-00-00

$32.99

8

GRAPHIC 1

5UN-2173E-00-00

Unavailable

9

SCREW, WITH WASHER(3YJ)

90159-06182-00

$9.49

10

SCREW, WITH WASHER (34K)

90159-06078-00

$9.49

11

PANEL 1

5NL-2172A-20-00

$21.99

12

SIDE COVER ASSY 4

5NY-21740-00-00

Unavailable

13

GRAPHIC 2

5UN-2173F-00-00

Unavailable

14

SCREW, WITH WASHER(3YJ)

90159-06182-00

$9.49

15

SCREW, WITH WASHER (34K)

90159-06078-00

$9.49

16

PANEL 1

5NL-2172A-20-00

$21.99

17

TUNING FORK MARK

5MV-2175C-00-00

Unavailable

18

TUNING FORK MARK

5MV-2175C-00-00

Unavailable
