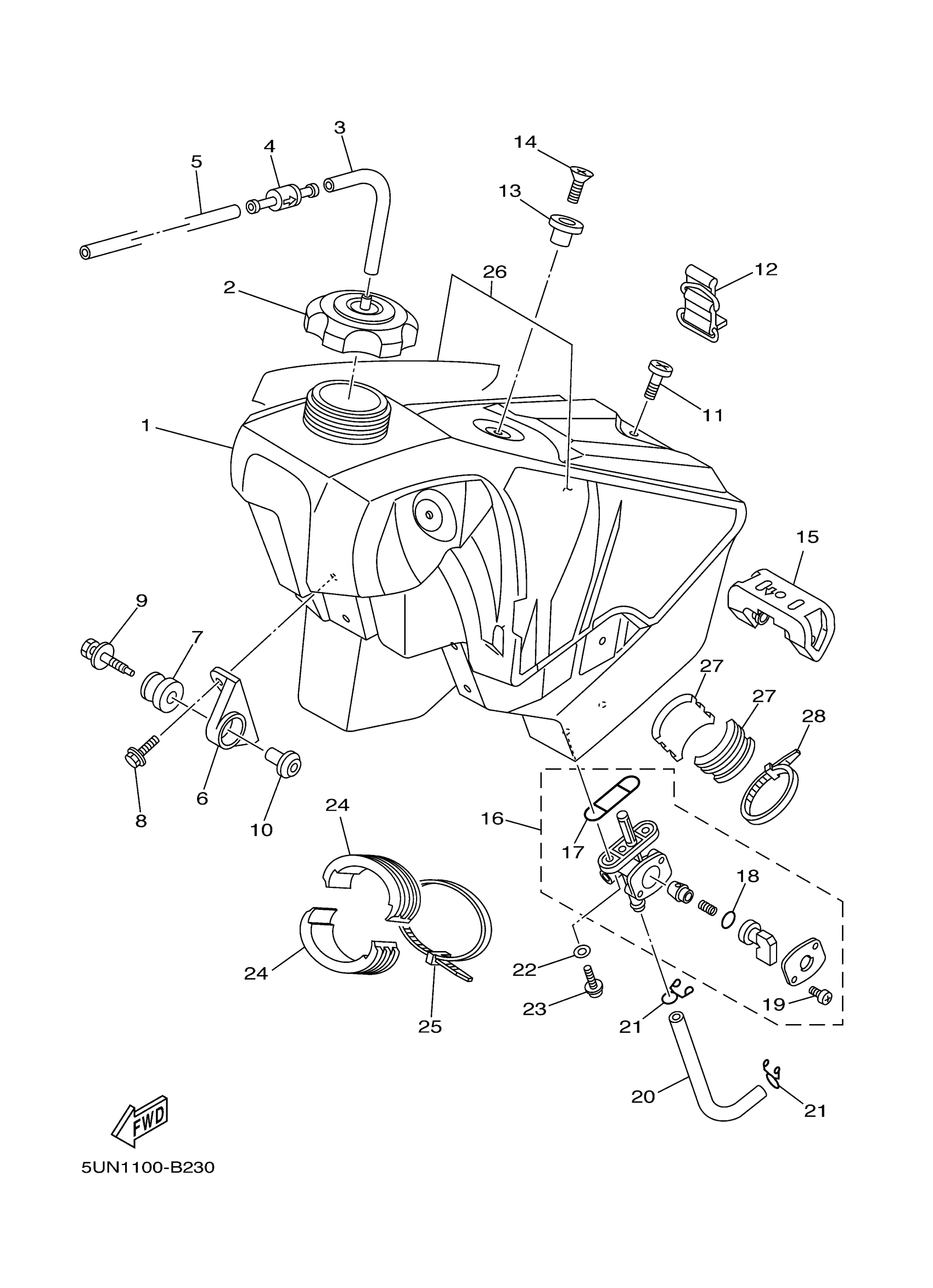

Yamaha YZ250R (YZ250) 5UP1 2003 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

5XE-24110-00-00

$677.99

2

CAP ASSY

5NY-24610-10-00

$61.99

3

PIPE 5

5RB-24315-00-00

$7.99

4

PIPE JOINT ASSY

3XJ-24380-00-00

$36.99

5

HOSE (L1500)

90445-090F6-00

$31.99

6

HOLDER, DAMPER

5XE-24144-00-00

$23.99

7

GROMMET(4AA)

90480-18549-00

$10.49

8

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

9

BOLT, WITH WASHER(3XP)

90119-06214-00

$8.49

10

WASHER, SPECIAL

5NY-24186-00-00

$20.99

11

SCREW, BINDING

98907-06025-00

$8.49

12

BAND, TANK FITTING 1

3SP-24173-00-00

$22.99

13

BRACKET, SEAT

4EW-2412F-00-00

$14.49

14

SCREW, FLAT

98707-06025-00

$8.49

15

DAMPER, LOCATING 1

4SS-24181-00-00

Unavailable

16

FUEL COCK ASSY 1

3JD-24500-20-00

Unavailable

17

O-RING

4X8-24512-00-00

Unavailable

18

SEAL, COCK

3AJ-24534-01-00

Unavailable

19

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

20

HOSE (L210)

90445-110F5-00

Unavailable

21

CLIP

90467-100A1-00

Unavailable

22

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

23

SCREW 256241430000

90149-06011-00

Unavailable

24

DAMPER, LOCATING 2

5NY-24182-00-00

Unavailable

25

CLAMP(MF1)

90464-15152-00

Unavailable

26

GRAPHIC SET

5UN-24240-00-00

Unavailable

27

DAMPER, LOCATING 3

5NY-24183-10-00

Unavailable

28

CLAMP

1UY-82591-00-00

Unavailable
