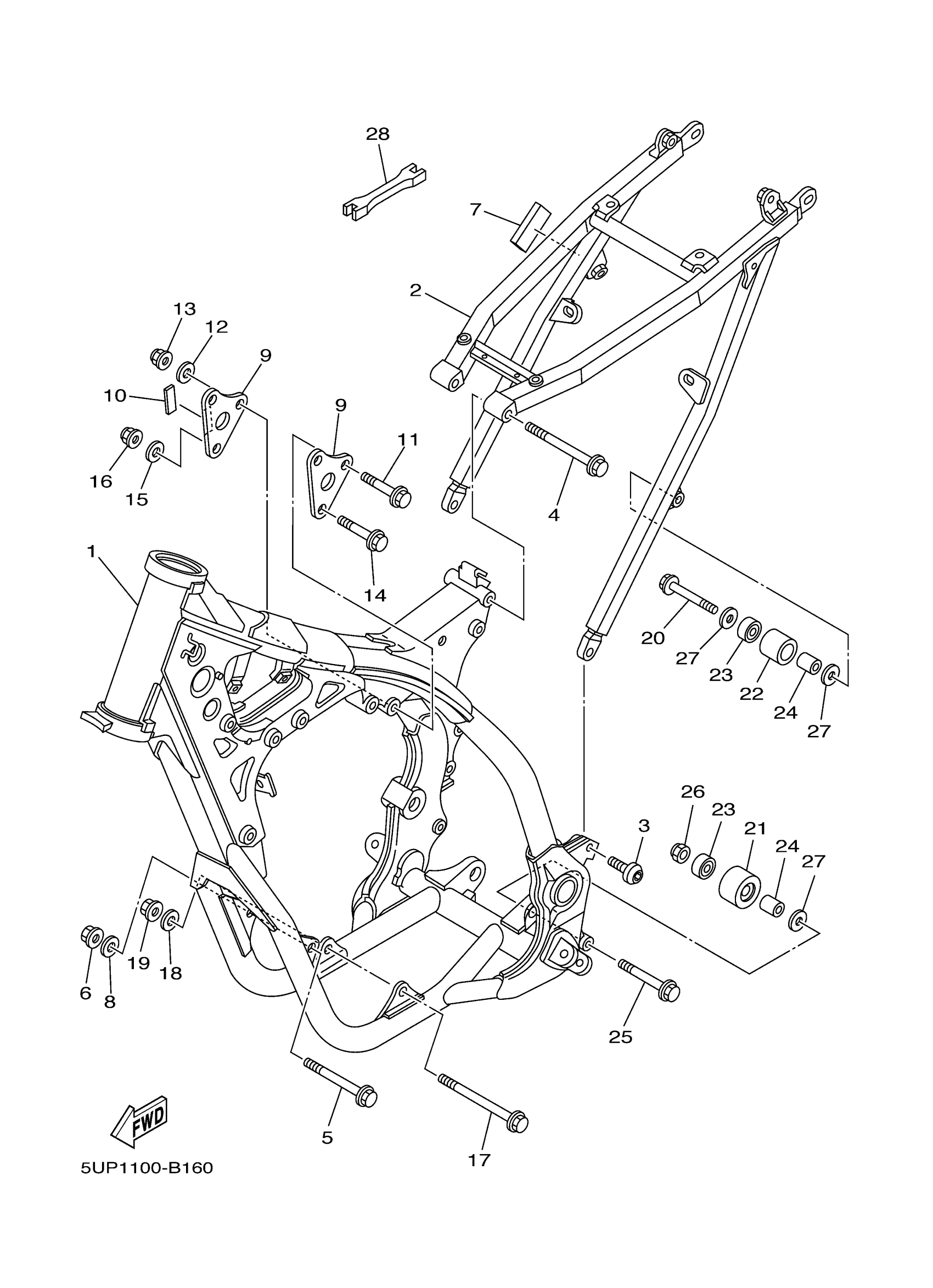

Yamaha YZ250R (YZ250) 5UP1 2003 FRAME Diagram

#

Description
Price

1

FRONT FRAME COMP.

5UP-21101-00-00

Unavailable

2

REAR FRAME COMP.

5XE-21190-00-00

Unavailable

3

BOLT, HEXAGON SOCKET HEAD(53Y)

90110-08096-00

$10.49

4

BOLT, WASHER BASED (401)

90105-08120-00

$9.49

5

BOLT, FLANGE(6TA)

95817-10110-00

$7.49

6

NUT, SELF-LOCKING

90185-10002-00

$8.49

7

DAMPER

5GJ-21717-00-00

$5.49

8

WASHER, PLATE

90201-10033-00

$8.49

9

BRACKET, REAR UPPER 1

5NX-21425-00-00

$22.99

10

DAMPER

4GG-21488-00-00

Unavailable

11

BOLT, WASHER BASED

90105-08225-00

Unavailable

12

WASHER, PLATE (12X)

90201-087F0-00

$5.60

13

NUT, SELF-LOCKING

90185-08169-00

$8.49

14

BOLT, FLANGE(8AB)

95817-10050-00

$7.49

15

WASHER, PLAIN(3BM)

92907-10200-00

$4.99

16

NUT, SELF-LOCKING

90185-10002-00

$8.49

17

BOLT, WASHER BASED (5E3)

90105-10183-00

Unavailable

18

WASHER, PLATE

90201-10033-00

$8.49

19

NUT, SELF-LOCKING

90185-10002-00

$8.49

20

BOLT, FLANGE(4MY)

95027-08040-00

Unavailable

21

TENSIONER

3JD-22178-20-00

Unavailable

22

TENSIONER

4EW-22178-01-00

Unavailable

23

BEARING (3X3)

93300-60804-00

Unavailable

24

COLLAR(1NL)

90387-086N4-00

Unavailable

25

BOLT, SMALL FLANGE

95027-08055-00

Unavailable

26

NUT

90185-08055-00

Unavailable

27

WASHER, PLATE(3XP)

90201-086P8-00

Unavailable

28

WRENCH, HEXAGON

5ET-28166-10-00

Unavailable
