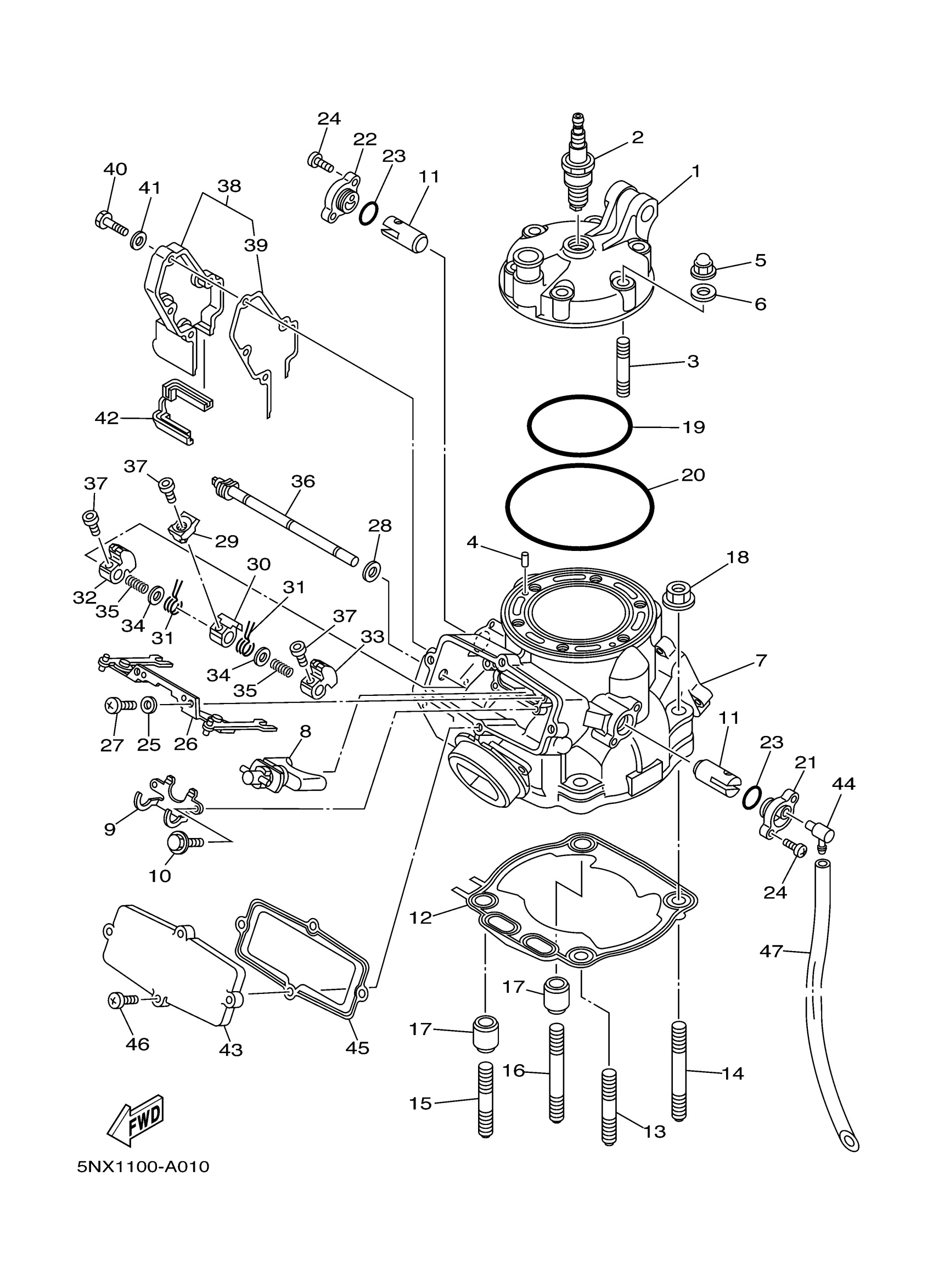

Yamaha YZ250R (YZ250) 5UP1 2003 CYLINDER HEAD Diagram

#

Description
Price

1

HEAD, CYLINDER 1

5UP-11111-00-00

Unavailable

2

PLUG, SPARK (NGK BR8EG)

BR8-EG000-00-00

Unavailable

3

BOLT, STUD (5V6)

90116-08394-00

$11.49

4

PIN, DOWEL (278)

93604-08071-00

$8.49

5

NUT, CROWN (4G0)

90176-08026-00

$14.99

6

WASHER, PLATE

90201-080L8-00

$4.41

7

CYLINDER 1

5UP-11311-21-00

$852.99

8

VALVE ASSY

5NX-1131D-01-00

Unavailable

9

HOLDER 3

5CU-1131U-10-00

$22.99

10

BOLT

90109-05002-00

$8.49

11

VALVE 2

5CU-1132A-00-00

$63.99

12

GASKET, CYLINDER

5UP-11351-00-00

$39.99

13

BOLT, STUD (3R4)

90116-10314-00

$4.46

14

BOLT, STUD 3

95617-10660-00

$11.49

15

BOLT, STUD (3R4)

90116-10314-00

$4.46

16

BOLT, STUD 3

95617-10660-00

$11.49

17

PIN, DOWEL(4JT)

99590-14016-00

Unavailable

18

NUT

90179-10M35-00

Unavailable

19

O-RING (1J7)

93210-74316-00

Unavailable

20

O-RING(55X)

93211-02703-00

Unavailable

21

HOLDER 1

5CU-1131E-01-00

Unavailable

22

HOLDER 4

5CU-1131P-00-00

Unavailable

23

O-RING (32N)

93210-15639-00

Unavailable

24

SCREW, PAN

98517-05012-00

Unavailable

25

WASHER, PLATE(39X)

90201-057H5-00

Unavailable

26

LINK ASSY

5CU-11830-00-00

Unavailable

27

SCREW, BINDING

98907-05012-00

Unavailable

28

OIL SEAL (8X12X3-371)

93104-08040-00

Unavailable

29

HOLDER

5NX-11395-00-00

Unavailable

30

LEVER, LINK

4SS-11832-00-00

Unavailable

31

SPRING, TORSION

90508-155B8-00

Unavailable

32

PULLEY 1

5MW-1132E-00-00

Unavailable

33

PULLEY 2

5MW-1132F-00-00

Unavailable

34

WASHER, PLATE (24X)

90201-081G0-00

Unavailable

35

SPRING, COMPRESSION

90501-046L6-00

Unavailable

36

SHAFT 1

5CU-1131V-00-00

Unavailable

37

BOLT,SOCKET

91317-04008-00

Unavailable

38

HOUSING 1

5CU-11991-01-00

Unavailable

39

GASKET

5CU-11993-00-00

Unavailable

40

BOLT(3JK)

97027-05020-00

Unavailable

41

WASHER(1RW)

92907-05600-00

Unavailable

42

SEAL, HOUSING

5CU-11995-00-00

Unavailable

43

COVER

5CU-1131M-11-00

Unavailable

44

CONNECTOR, SUCTION PIPE

353-13115-01-00

Unavailable

45

GASKET

5CU-11354-00-00

Unavailable

46

SCREW, BINDING

98907-05016-00

Unavailable

47

HOSE (L420)

90445-092K1-00

Unavailable
