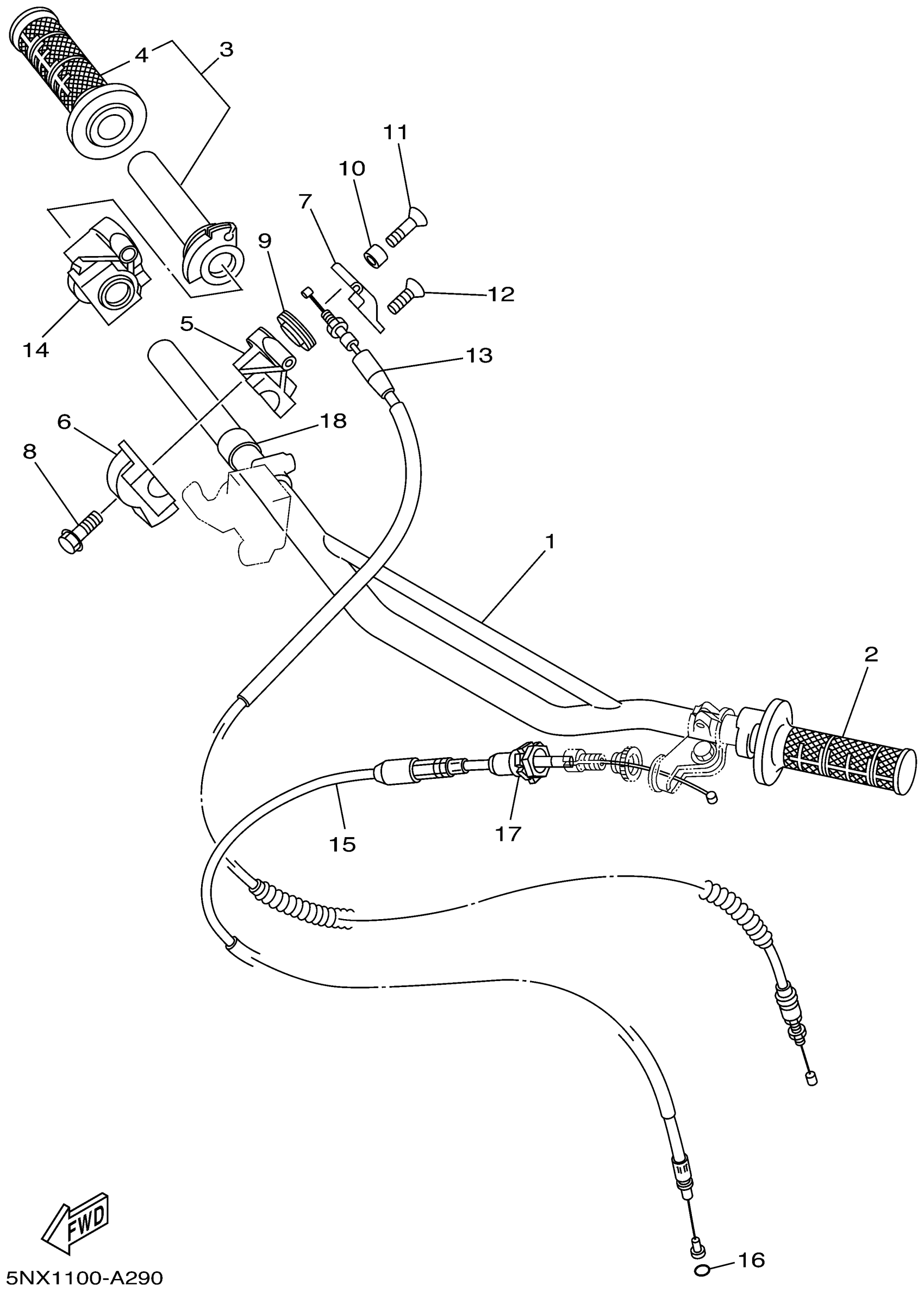

Yamaha YZ250P (YZ250) 5NX1 2002 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

5UN-26111-00-00

Unavailable

2

GRIP (LEFT)

4GY-26241-00-00

$29.99

3

GRIP ASSY

4XM-26240-00-00

$64.99

4

GRIP (RIGHT)

4GY-26242-00-00

$29.99

5

CAP, GRIP UPPER

1C3-26281-90-00

$76.99

6

CAP, GRIP LOWER

1C3-26282-90-00

$50.99

7

CAP, WIRE

1C3-2628H-90-00

$16.49

8

BOLT, SMALL FLANGE

95027-06025-00

$4.16

9

ROTOR

1C3-26273-90-00

$11.99

10

COLLAR

90387-04003-00

$8.49

11

SCREW, FLAT

98707-04016-00

$8.49

12

SCREW, FLAT

98707-04010-00

$8.49

13

CABLE, THROTTLE 1

5HC-26311-00-00

$42.99

14

COVER, CAP GRIP

4SS-26287-01-00

$20.99

15

CABLE, CLUTCH

5HC-26335-10-00

$61.99

16

O-RING (26H)

93210-06632-00

Unavailable

17

BOOT, CABLE

5HD-26342-00-00

Unavailable

18

COLLAR(34X)

90387-227H7-00

Unavailable
