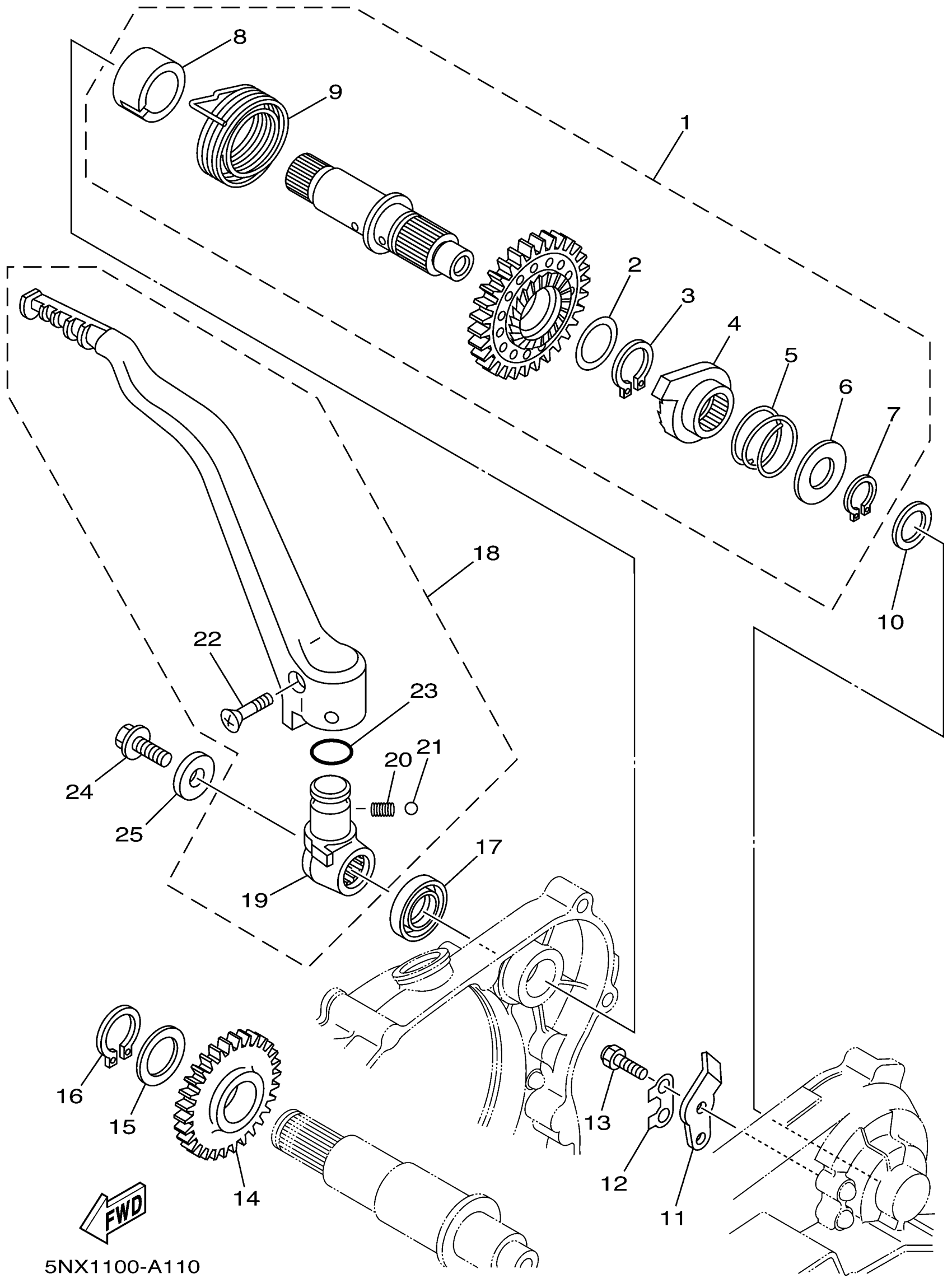

Yamaha YZ250P (YZ250) 5NX1 2002 STARTER Diagram

#

Description
Price

1

KICK SHAFT ASSY

5NX-15601-10-00

$240.15

2

WASHER, PLATE (2K7)

90201-20685-00

$5.61

3

CIRCLIP (525)

93410-20038-00

$2.44

4

WHEEL, RATCHET

4GY-15671-00-00

$82.92

5

SPRING, COMPRESSION

90501-16016-00

$4.53

6

WASHER, PLATE(4GL)

90201-167P7-00

$8.00

7

CIRCLIP(13T)

99009-16400-00

$4.81

8

GUIDE, SPRING

5NL-15664-00-00

$11.65

9

SPRING, TORSION

90508-305B0-00

$11.88

10

WASHER, PLATE (25H)

90201-162H4-00

$7.40

11

GUIDE, RATCHET WHEEL

2NX-15674-00-00

$8.58

12

WASHER, LOCK

214-15686-00-00

$5.96

13

BOLT, HEXAGON

97017-06016-00

$5.76

14

GEAR, KICK IDLE

5CU-15651-00-00

$119.71

15

WASHER PLATE 328171160000

90201-20276-00

$6.12

16

CIRCLIP(1AR)

99009-20400-00

Unavailable

17

OIL SEAL (22U)

93102-18278-00

Unavailable

18

KICK CRANK ASSY

5NX-15620-20-00

Unavailable

19

BOSS, KICK CRANK

5NX-15621-01-00

Unavailable

20

SPRING COMPRESSION278156220000

90501-12081-00

Unavailable

21

BALL (12R)

93507-32031-00

Unavailable

22

SCREW, COUNTERSUNK (5Y1)

90152-06010-00

Unavailable

23

O-RING(36Y)

93210-17570-00

Unavailable

24

BOLT(2KF)

90109-085E2-00

Unavailable

25

WASHER (853)

90201-08326-00

Unavailable
