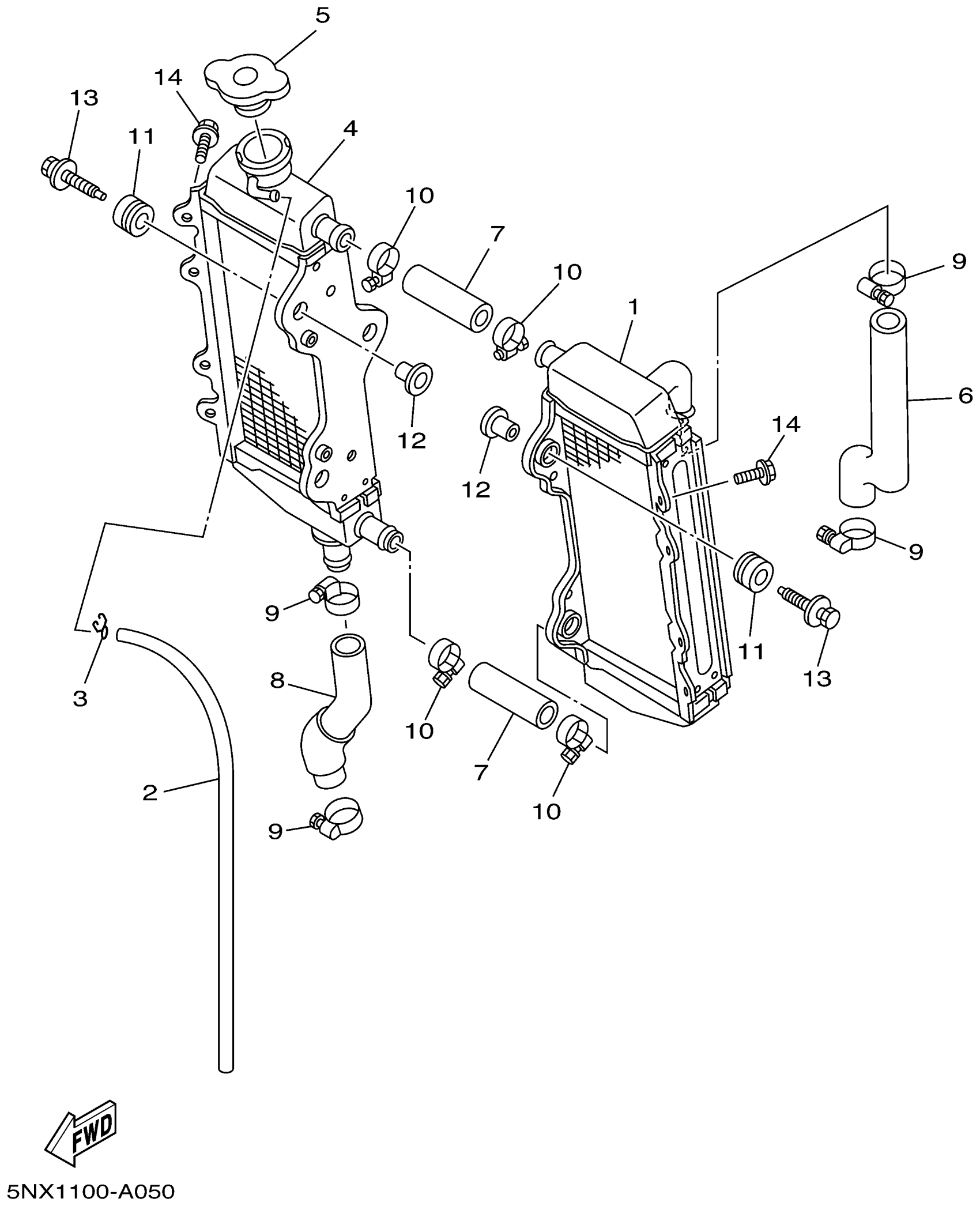

Yamaha YZ250P (YZ250) 5NX1 2002 RADIATOR HOSE Diagram

#

Description
Price

1

RADIATOR ASSY

5NX-1240A-00-00

$200.89

2

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$11.73

3

CLIP

90467-090A2-00

$2.47

4

RADIATOR ASSY

5NX-12461-00-00

$200.89

5

CAP, RADIATOR

4FL-12462-00-00

$53.09

6

PIPE 1

5CU-12481-00-00

Unavailable

7

PIPE 2

5NY-12482-00-00

$6.30

8

PIPE 4

5CU-12484-11-00

Unavailable

9

HOSE CLAMP ASSY

90450-28001-00

$11.70

10

HOSE CLAMP ASSY(64X)

90450-22M14-00

$12.87

11

GROMMET(3RB)

90480-15528-00

$6.22

12

COLLAR

90387-0614M-00

$7.70

13

BOLT, WITH WASHER

90119-06038-00

$5.75

14

BOLT, FLANGE

95817-06010-00

$3.65
