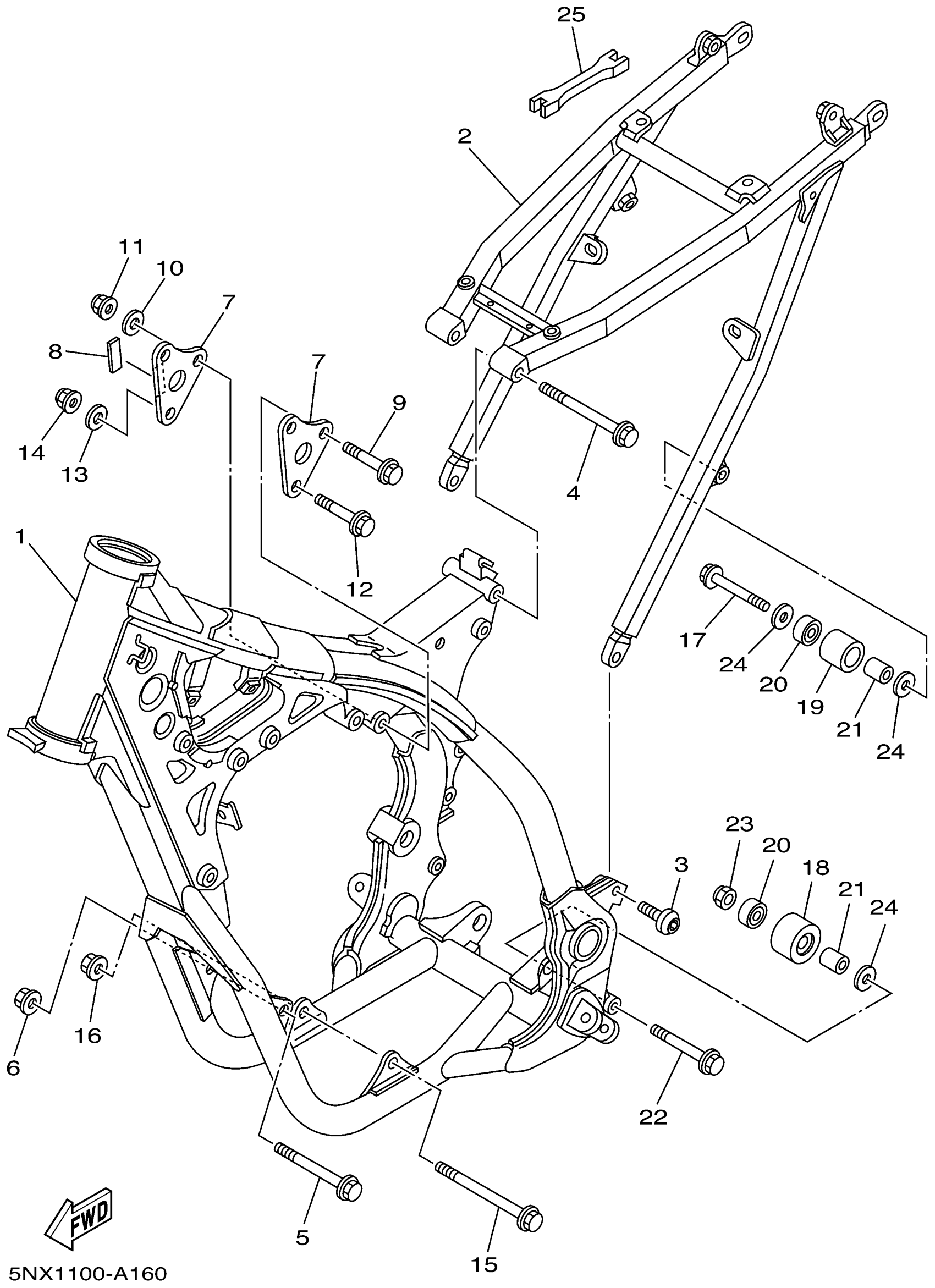

Yamaha YZ250P (YZ250) 5NX1 2002 FRAME Diagram

#

Description
Price

1

FRONT FRAME COMP.

5NX-21101-00-00

Unavailable

2

REAR FRAME COMP.

5XE-21190-00-00

Unavailable

3

BOLT, HEXAGON SOCKET HEAD(53Y)

90110-08096-00

$10.49

4

BOLT, WASHER BASED (401)

90105-08120-00

$9.49

5

BOLT, FLANGE(6TA)

95817-10110-00

$7.49

6

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

7

BRACKET, REAR UPPER 1

5NX-21425-00-00

$22.99

8

DAMPER

4GG-21488-00-00

Unavailable

9

BOLT, WASHER BASED

90105-08225-00

Unavailable

10

WASHER, PLATE (12X)

90201-087F0-00

$5.60

11

NUT, SELF-LOCKING

90185-08169-00

$8.49

12

BOLT, FLANGE(8AB)

95817-10050-00

$7.49

13

WASHER, PLAIN(3BM)

92907-10200-00

$4.99

14

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

15

BOLT(30W)

90109-101A0-00

Unavailable

16

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

17

BOLT, FLANGE(4MY)

95027-08040-00

Unavailable

18

TENSIONER

3JD-22178-20-00

Unavailable

19

TENSIONER

4EW-22178-01-00

Unavailable

20

BEARING (3X3)

93300-60804-00

Unavailable

21

COLLAR(1NL)

90387-086N4-00

Unavailable

22

BOLT, SMALL FLANGE

95027-08055-00

Unavailable

23

NUT

90185-08055-00

Unavailable

24

WASHER, PLATE(3XP)

90201-086P8-00

Unavailable

25

WRENCH, HEXAGON

5ET-28166-10-00

Unavailable
