Description

Price

1

FENDER, FRONT

5HD-21511-00-00

$42.99

2

COLLAR

3JD-21748-00-00

$5.49

3

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

4

EMBLEM YAMAHA

4ES-2153E-02-00

$14.49

5

REAR FENDER COMP.

5XE-21610-00-00

$61.99

6

NUT

90179-06022-00

Unavailable

7

BOLT, WITH WASHER(3RB)

90119-06192-00

$8.49

8

BOLT, SMALL FLANGE

95027-06030-00

$3.98

9

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

10

GUARD, FLAP

5BE-21642-00-00

$45.99

11

BOLT, WITH WASHER(4JX)

90119-06225-00

$9.49

12

COLLAR

90387-06009-00

$10.49

13

SCREW, TRUSS TAP.

97707-60016-00

$1.70

14

WASHER, PLATE

90201-06557-00

$3.30

15

EMBLEM YAMAHA

4ES-2153E-02-00

$14.49

16

EMBLEM 1

5NX-2163G-00-00

Unavailable

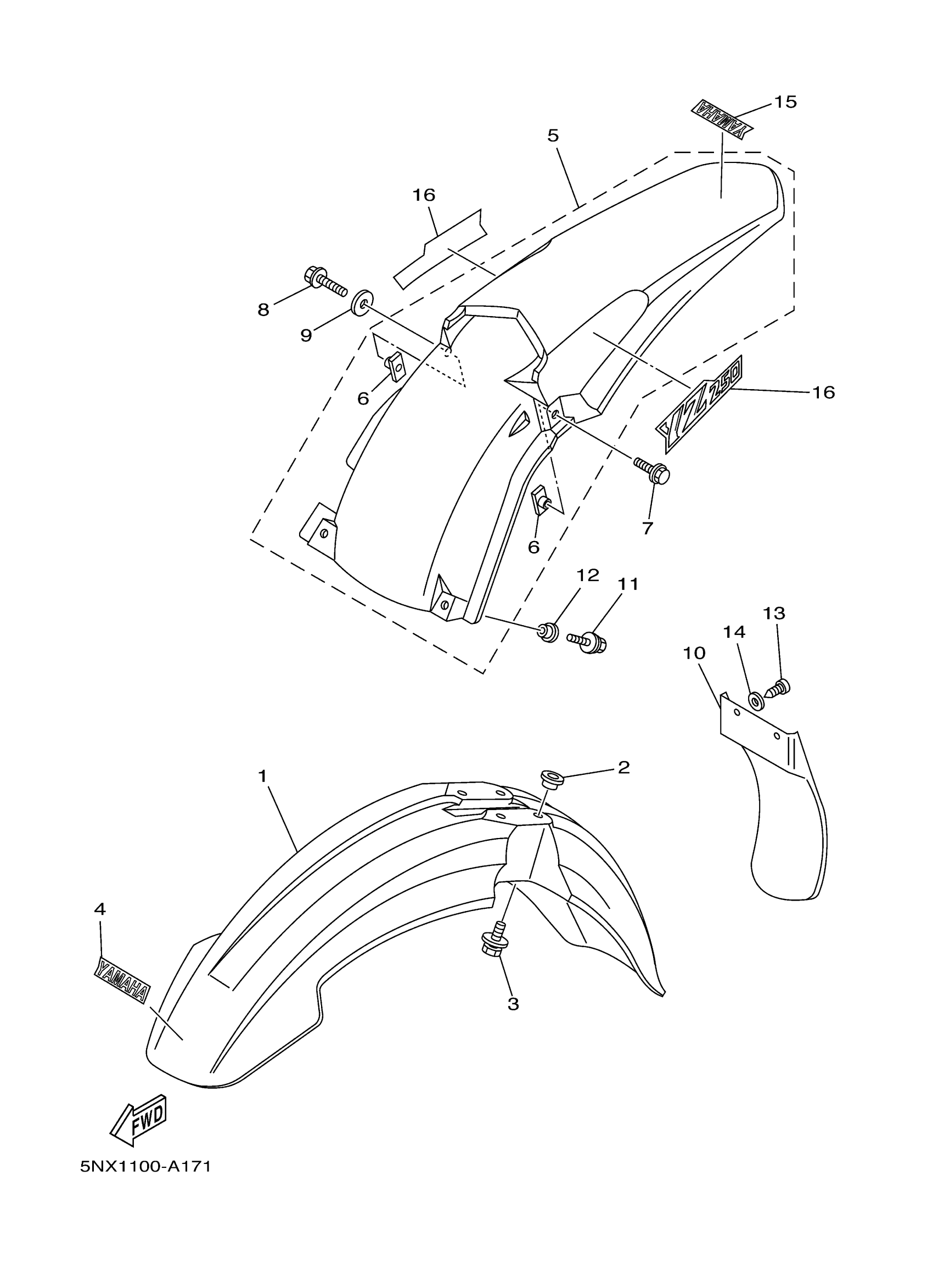

Yamaha YZ250P (YZ250) 5NX1 2002 FENDER Diagram

FENDER, FRONT

COLLAR

BOLT, WITH WASHER (30X)

EMBLEM YAMAHA

REAR FENDER COMP.

NUT

BOLT, WITH WASHER(3RB)

BOLT, SMALL FLANGE

WASHER, PLATE(36Y)

GUARD, FLAP

BOLT, WITH WASHER(4JX)

COLLAR

SCREW, TRUSS TAP.

WASHER, PLATE

EMBLEM YAMAHA

EMBLEM 1
