Partiron

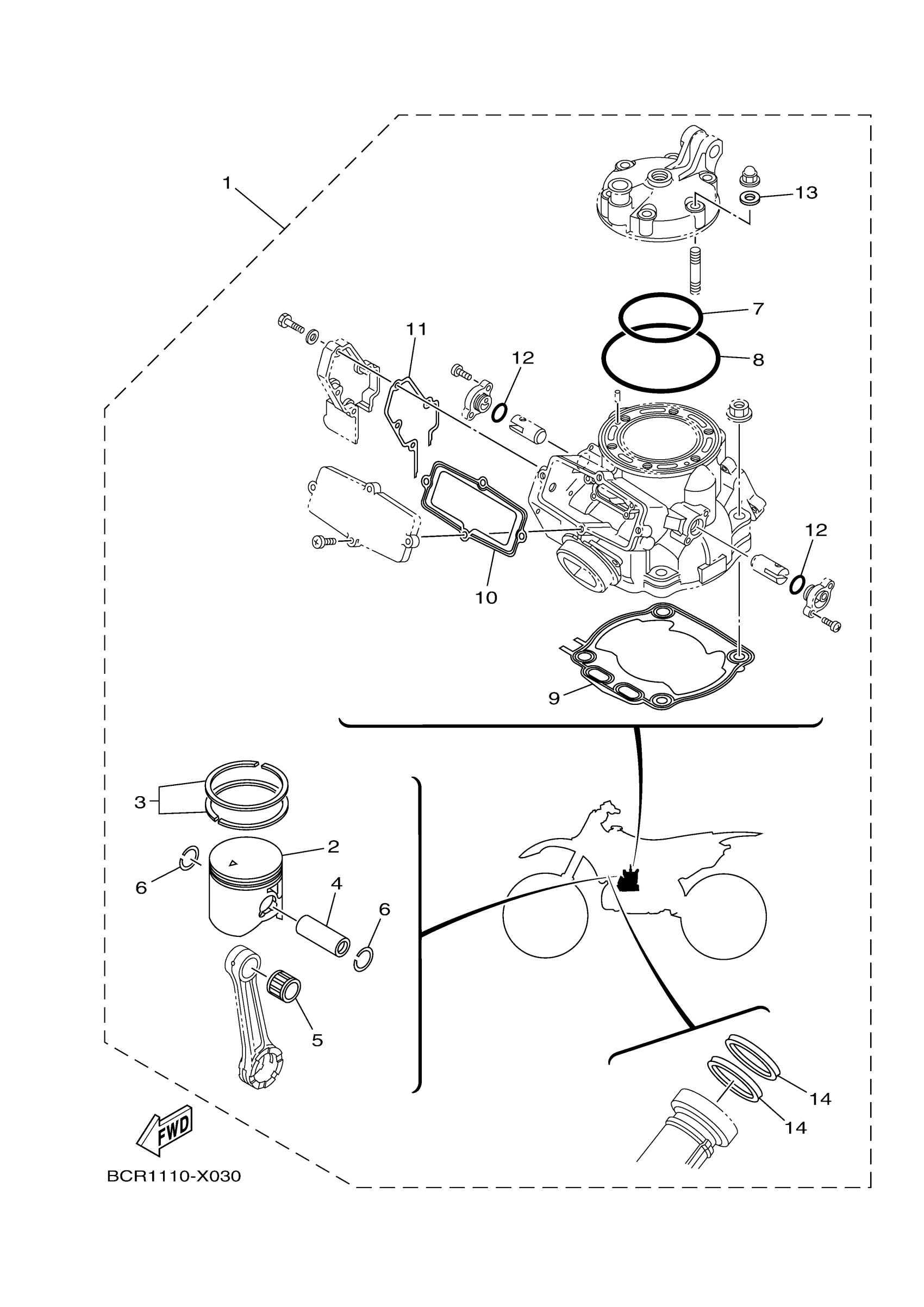

Yamaha YZ250N2ME (YZ250 MONSTER) BCR5 2022 4 PISTON REBUILT KIT Diagram

#

Description
Price

1

PISTON REBUILT KIT

1P8-WB033-00-A0

$135.26

1

PISTON REBUILT KIT

1P8-WB033-00-B0

$113.36

1

PISTON REBUILT KIT

1P8-WB033-00-C0

$133.00

1

PISTON REBUILT KIT

1P8-WB033-00-D0

$137.76

2

PISTON (STD)

1P8-11631-00-A0

$109.00

2

PISTON (STD)

1P8-11631-00-B0

$98.03

2

PISTON (STD)

1P8-11631-00-C0

$109.00

2

PISTON (STD)

1P8-11631-00-D0

$109.00

3

PISTON RING SET (STD)

5CU-11603-11-00

$42.31

4

PIN, PISTON

5UP-11633-00-00

$28.89

5

BRG,CYL-CAL ROLLER 15.6G KY

93310-218A6-00

$31.54

6

CIRCLIP (2F1)

93450-19052-00

$5.17

7

O-RING (1J7)

93210-74316-00

$7.91

8

O-RING(55X)

93211-02703-00

$8.37

9

GASKET, CYLINDER

5UP-11351-00-00

$32.59

10

GASKET

5CU-11354-00-00

Unavailable

11

GASKET

5CU-11993-00-00

Unavailable

12

O-RING (32N)

93210-15639-00

Unavailable

13

WASHER, PLATE

90201-080L8-00

Unavailable

14

SEAL, EXHAUST

5MW-14642-00-00

Unavailable
