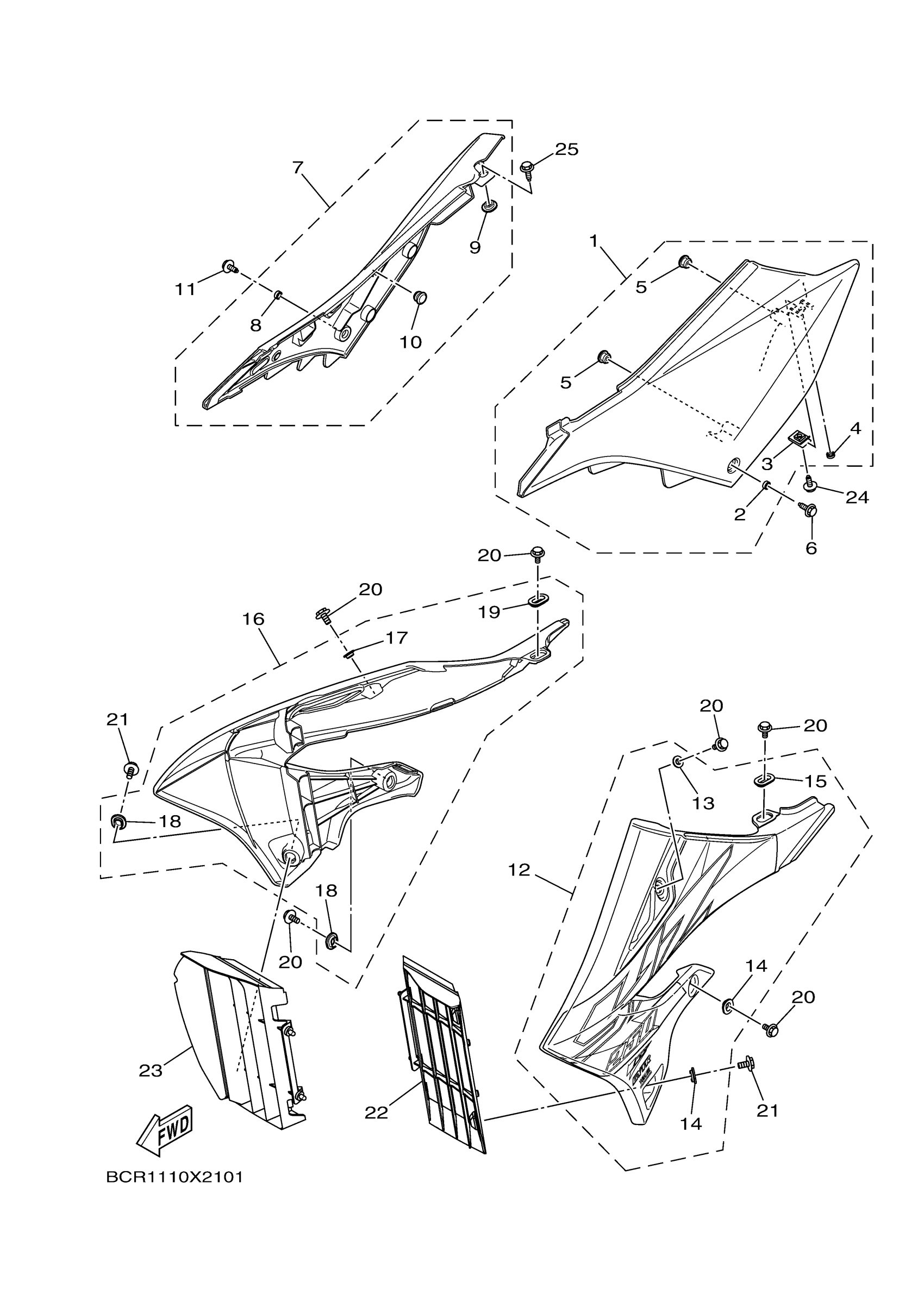

Yamaha YZ250N2L (YZ250) BCR1 2022 SIDE COVER Diagram

#

Description
Price

1

SIDE COVER ASSY 1

BCR-21710-00-00

$26.67

2

COLLAR

90387-07015-00

$0.93

3

NUT, SPRING

90183-060A7-00

$6.05

4

COLLAR

90387-06069-00

Unavailable

5

GROMMET (397)

90480-10068-00

$6.32

6

BOLT, FLANGE

90105-06178-00

$3.79

7

SIDE COVER ASSY 2

BCR-21720-00-00

$25.93

8

COLLAR

90387-07015-00

$0.93

9

COLLAR

17D-14449-00-00

$6.29

10

GROMMET (397)

90480-10068-00

$6.32

11

BOLT, FLANGE

90105-06178-00

$3.79

12

SIDE COVER ASSY 3

BCR-21730-00-00

$32.89

12

SIDE COVER INSERT

BCR-217R0-G0-00

$184.99

13

COLLAR

90387-06009-00

$7.37

14

COLLAR

5TA-21749-00-00

$9.00

15

COLLAR

1SL-21748-00-00

Unavailable

16

SIDE COVER ASSY 4

BCR-21740-00-00

Unavailable

16

SIDE COVER INSERT

BCR-217S0-G0-00

Unavailable

17

COLLAR

90387-06009-00

$7.37

18

COLLAR

5TA-21749-00-00

$9.00

19

COLLAR

1SL-21748-00-00

Unavailable

20

BOLT, FLANGE

90105-06064-00

Unavailable

21

BOLT, WITH WASHER

90119-06166-00

Unavailable

22

PANEL 1

BCR-2172A-00-00

Unavailable

23

PANEL 2

BCR-2172F-00-00

Unavailable

24

BOLT, WITH WASHER

90119-06322-00

Unavailable

25

BOLT, WITH WASHER

90119-06322-00

Unavailable
