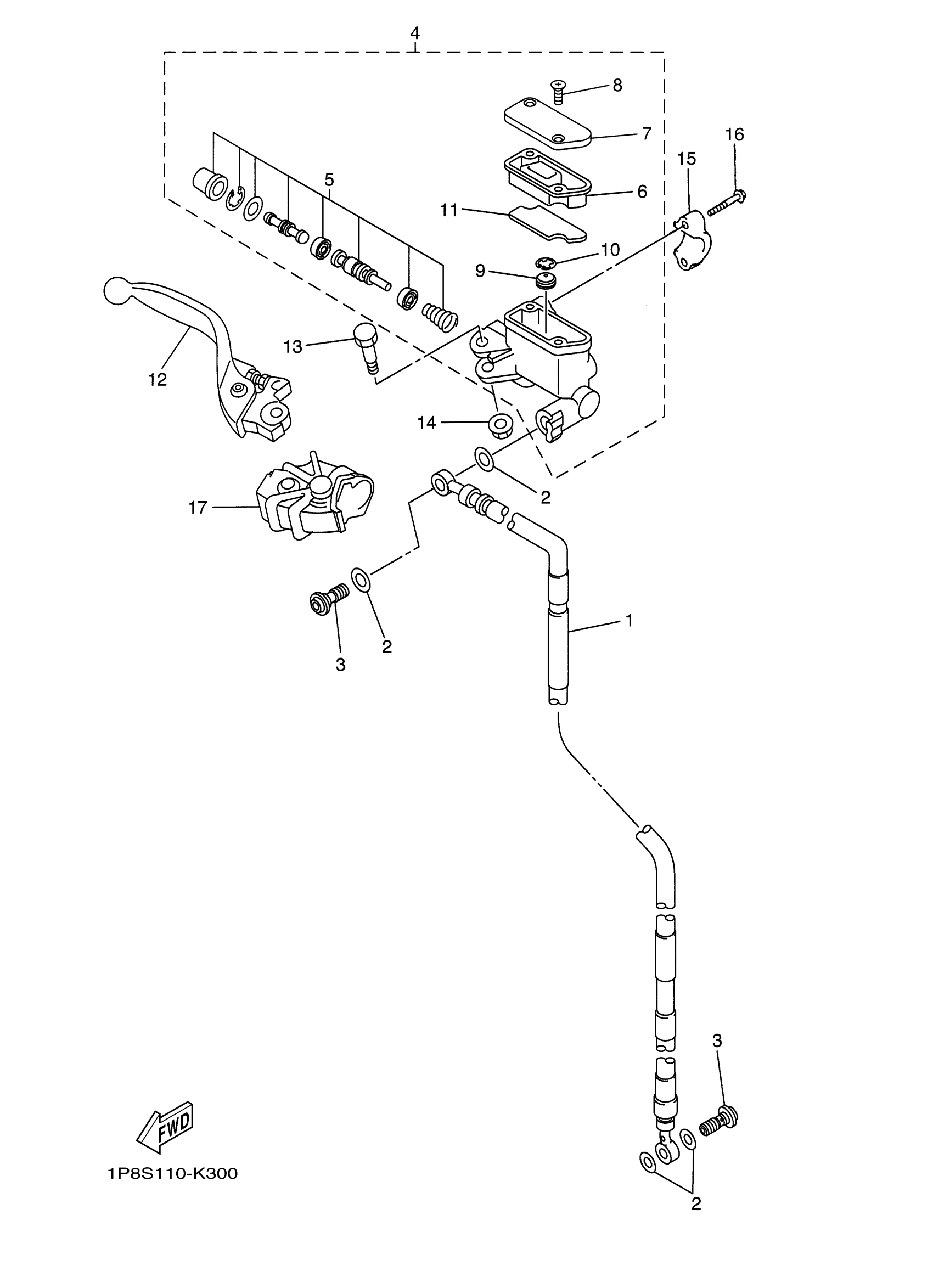

Yamaha YZ250N2L (YZ250) BCR1 2022 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

HOSE, BRAKE 1

5XC-25872-L0-00

$170.99

2

GASKET

90430-10005-00

$9.49

3

BOLT, UNION

90401-10172-00

$5.60

4

MASTER CYLINDER SUB ASSY

5XC-W2587-00-00

$296.99

5

CYLINDER KIT, MASTER

5XC-W0041-00-00

$61.99

6

DIAPHRAGM, RESERVOIR

5XC-25854-G0-00

$13.49

7

CAP, RESERVOIR

5XC-25852-G0-00

$23.99

8

SCREW, FLAT

98707-04012-00

$2.18

9

SEPARATOR ASSY

5CG-25715-00-00

$13.49

10

CIRCLIP

5CG-2585G-00-00

$5.49

11

FLOAT, RESERVOIR

5XC-25853-G0-00

$5.49

12

LEVER 2

B2W-83922-00-00

$43.99

13

BOLT, LEVER

5MV-2589F-00-00

$6.99

14

NUT, FLANGE(7NB)

95780-06500-00

$2.60

15

BRACKET, MASTER CYLINDER

5MV-25867-00-00

$20.99

16

BOLT, FITTING

5MV-25833-00-00

Unavailable

17

COVER, HANDLE LEVER 1

5XC-26372-G0-00

Unavailable
