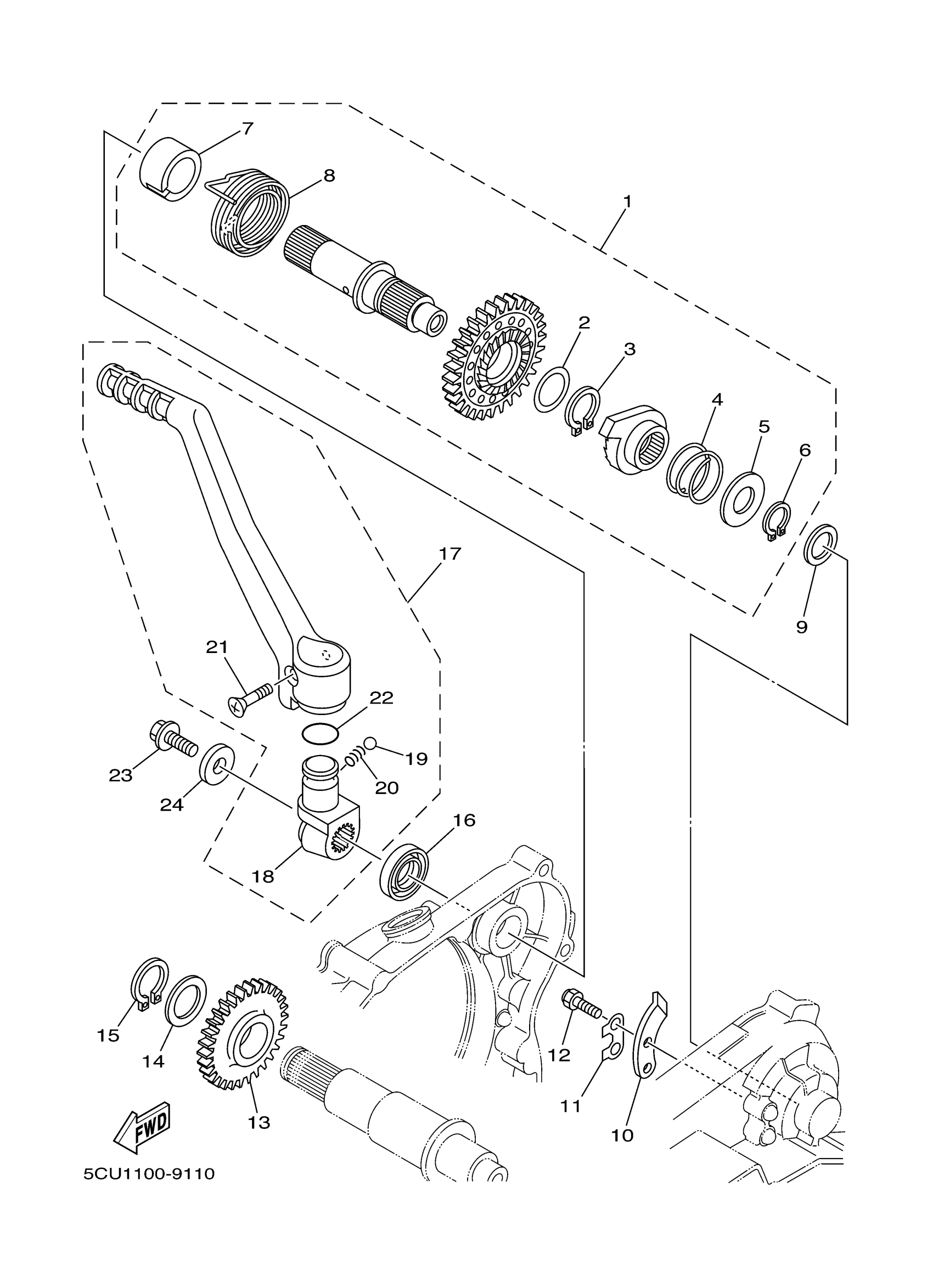

Yamaha YZ250N1 (YZ250) 5MW1 2001 STARTER Diagram

#

Description
Price

1

KICK SHAFT ASSY

5CU-15601-01-00

Unavailable

2

WASHER, PLATE (2K7)

90201-20685-00

$7.49

3

CIRCLIP (525)

93410-20038-00

$3.76

4

SPRING, COMPRESSION

90501-16016-00

$5.60

5

WASHER, PLATE(4GL)

90201-167P7-00

$9.49

6

CIRCLIP(13T)

99009-16400-00

$5.60

7

GUIDE, SPRING

5GR-15664-00-00

$28.99

8

SPRING, TORSION

90508-305B0-00

$14.99

9

WASHER, PLATE (25H)

90201-162H4-00

$9.49

10

GUIDE, RATCHET WHEEL

3Y6-15674-00-00

Unavailable

11

WASHER, LOCK

214-15686-00-00

$7.99

12

BOLT, HEXAGON

97017-06016-00

$8.49

13

GEAR, KICK IDLE

5CU-15651-00-00

$128.99

14

WASHER PLATE 328171160000

90201-20276-00

$8.49

15

CIRCLIP(1AR)

99009-20400-00

$8.49

16

OIL SEAL

93102-20484-00

Unavailable

17

KICK CRANK ASSY

4EW-15620-02-00

Unavailable

18

BOSS,KICK CRANK

3SP-15621-02-00

Unavailable

19

BALL

93501-04011-00

Unavailable

20

SPRING, COMPRESSION (23X)

90501-13720-00

Unavailable

21

SCREW, COUNTERSUNK (5Y1)

90152-06010-00

Unavailable

22

O-RING

93210-19216-00

Unavailable

23

BOLT, SMALL FLANGE

95027-08020-00

Unavailable

24

WASHER, PLATE (8L8)

90201-087A9-00

Unavailable
