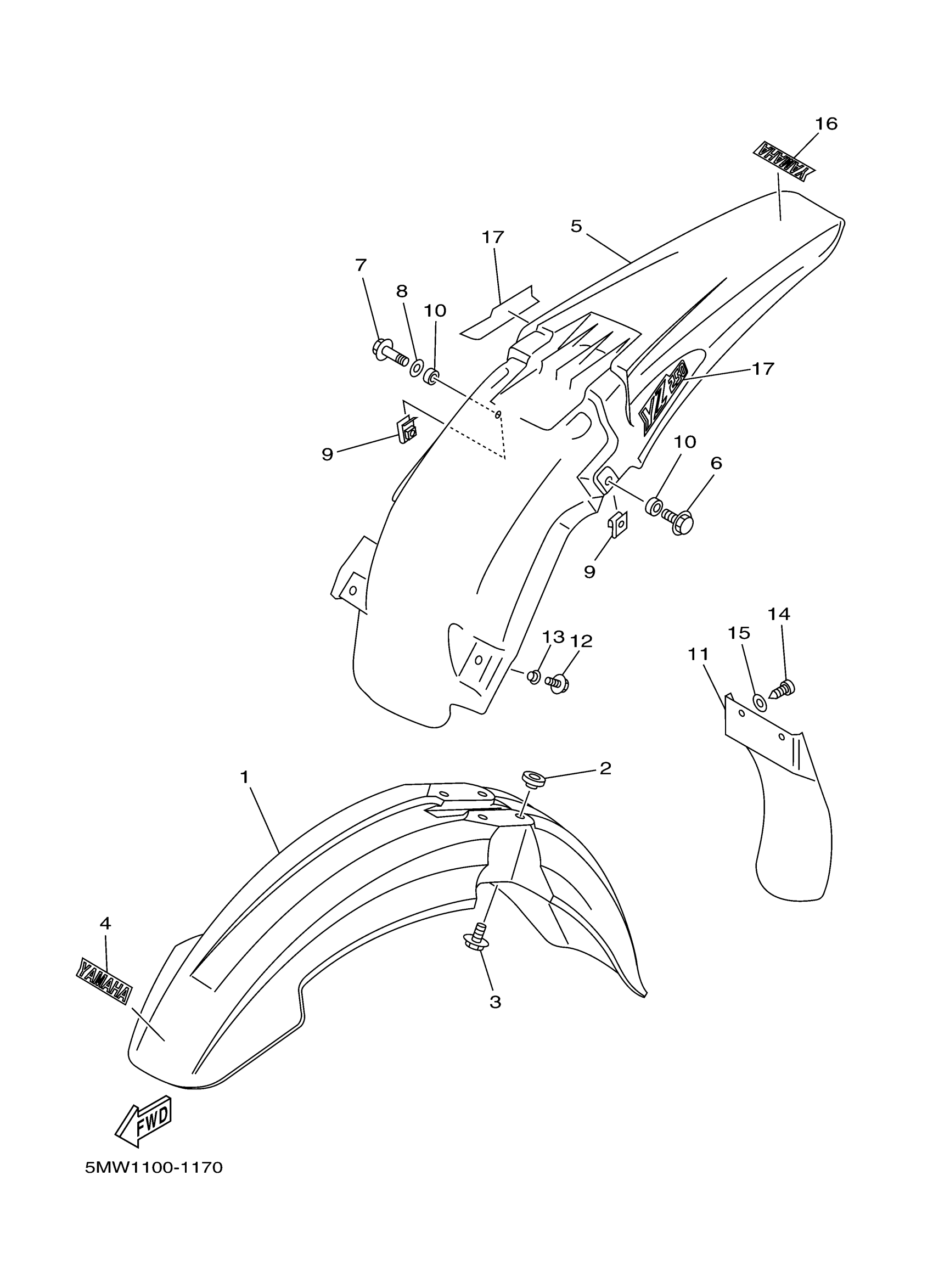

Yamaha YZ250N1 (YZ250) 5MW1 2001 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

5HD-21511-00-00

$34.08

2

COLLAR

3JD-21748-00-00

$4.01

3

BOLT, WITH WASHER (30X)

90119-06096-00

$2.88

4

EMBLEM YAMAHA

4ES-2153E-02-00

Unavailable

5

FENDER, REAR

5BE-21611-10-00

$59.85

6

BOLT, WITH WASHER(3RB)

90119-06192-00

$5.76

7

BOLT, SMALL FLANGE

95027-06030-00

$3.40

8

WASHER, PLATE(36Y)

90201-063J2-00

$4.15

9

NUT, SPRING (26H)

90183-06023-00

$6.94

10

COLLAR(4EW)

90387-0701A-00

$6.22

11

GUARD, FLAP

5BE-21642-00-00

$42.21

12

BOLT, WITH WASHER(4JX)

90119-06225-00

$6.15

13

COLLAR

90387-06009-00

$7.37

14

SCREW, TRUSS TAP.

97707-60016-00

$0.98

15

WASHER, PLATE

90201-06557-00

$2.57

16

EMBLEM YAMAHA

4ES-2153E-02-00

Unavailable

17

EMBLEM 1

5MW-21781-09-00

Unavailable
