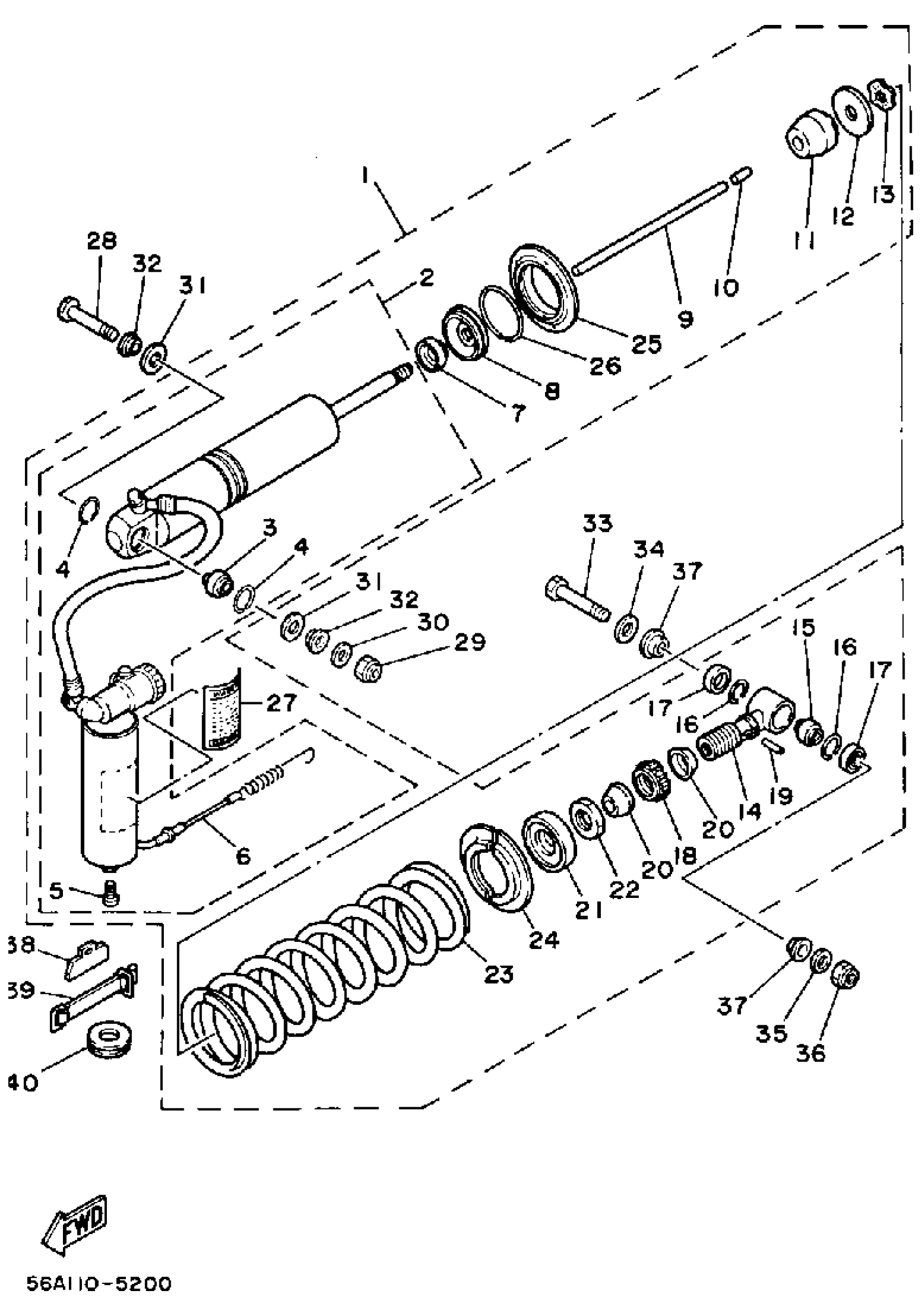

Yamaha YZ250N (YZ250N_85) 56A 1985 REAR SUSPENSION Diagram

#

Description

Price

1

SHK/ABS ASSEMBLY, REAR

(56A-22210-00-6W)

Unavailable

2

. DAMPER SUB-ASSEMBLY

56A-22401-00-00

Unavailable

3

BEARING(4GG)

93399-999T3-00

$62.99

4

CIRCLIP (23X)

93440-30113-00

$1.70

5

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

6

.. CABLE, CONTROL 1

56A-22463-00-00

Unavailable

7

SEAL,DUST

23X-22475-01-00

Unavailable

8

. CAP, CASE 001

26A-22472-00-00

Unavailable

9

ROD,PUSH

56A-22489-00-00

Unavailable

10

. PIN, DOWEL

93604-21193-00

Unavailable

11

. BUMP, STOP

39X-22493-00-00

Unavailable

12

. SUPPORT, BUMP STOP

3R4-22228-00-00

Unavailable

13

. WASHER, WAVE

90206-14067-00

Unavailable

14

. UPPER BRACKET SUB-ASSEMBLY

39X-22409-00-00

Unavailable

15

BEARING(4GG)

93399-999T3-00

$62.99

16

CIRCLIP (23X)

93440-30113-00

$1.70

17

OIL SEAL (23X)

93104-18077-00

Unavailable

18

. NUT, ADJUSTING

5X3-22497-00-00

Unavailable

19

. PIN, DOWEL

93604-26132-00

Unavailable

20

. COVER

3R4-22221-01-00

Unavailable

21

. SEAT, SPRING UPPER

23X-22213-00-00

Unavailable

22

NUT, HEXAGON (29L)

90170-20320-00

Unavailable

23

. SPRING, MXS STD

39X-22212-00-6W

Unavailable

23

SPRING, MXS SOFT

(39X-22212-10-6W)

Unavailable

23

. SPRING, MXS HARD

39X-22212-20-6W

Unavailable

24

. GUIDE, SPRING 1

23X-22214-00-00

Unavailable

25

. SEAT, SPRING LOWER

23X-22223-00-00

Unavailable

26

. CIRCLIP

93440-51103-00

Unavailable

27

. LABEL, CAUTION

56A-22499-00-00

Unavailable

28

BOLT

90109-10704-00

Unavailable

29

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

30

WASHER (7A9)

90201-100F7-00

Unavailable

31

COVER

23X-22211-00-00

Unavailable

32

COLLAR (23X)

90387-127G8-00

Unavailable

33

BOLT

90109-10700-00

Unavailable

34

WASHER, PLATE

90201-12027-00

Unavailable

35

WASHER, PLATE(6TC)

90201-10M05-00

Unavailable

36

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

37

COLLAR (23X)

90387-126H8-00

Unavailable

38

DAMPER, SUB TANK

56A-22261-00-00

Unavailable

39

HOLDER, SUB TANK

24X-22262-00-00

Unavailable

40

GROMMET

90480-25381-00

Unavailable
