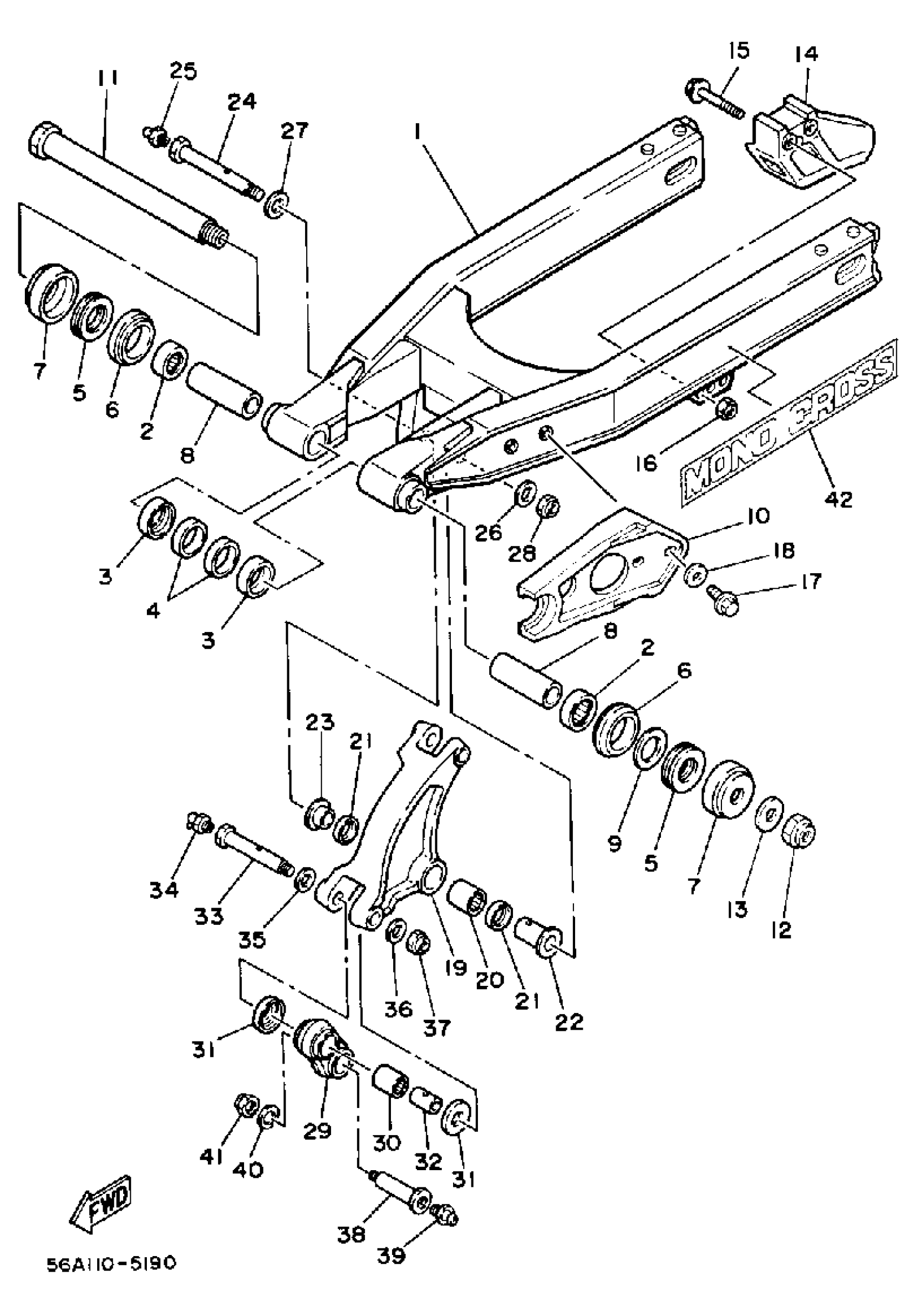

Yamaha YZ250N (YZ250N_85) 56A 1985 REAR ARM Diagram
#
1
REAR ARM
(56A-22110-00-00)
Unavailable
11
SHAFT, PIVOT
5X6-22141-01-00
Unavailable
14
SUPPORT, CHAIN
23X-22199-00-00
Unavailable
16
NUT, SELF-LOCKING
90185-08169-00
Unavailable
17
BOLT, FLANGE
95817-06020-00
Unavailable
18
WASHER, PLATE
90201-06380-00
Unavailable
19
ARM, RELAY
(39X-2217A-00-00)
Unavailable
20
BEARING, CYLINDRICAL (23X)
93317-32034-00
Unavailable
21
OIL SEAL
93109-20076-00
Unavailable
22
COLLAR
90387-147G6-00
Unavailable
23
COLLAR (23X)
90387-147G7-00
Unavailable
24
BOLT
90109-12701-00
Unavailable
25
NIPPLE, GREASE
93700-06M03-00
Unavailable
26
WASHER, PLATE (8K2)
90201-120A5-00
Unavailable
27
WASHER, PLATE(3FC)
90201-142M6-00
Unavailable
28
NUT, SELF LOCKING (23X)
90185-12119-00
Unavailable
29
ROD, CONNECTING 1
23X-2217F-00-00
Unavailable
30
BEARING, CYLINDRICAL (23X)
93315-31732-00
Unavailable
31
COVER, THRUST 2
55K-22129-00-00
Unavailable
32
COLLAR (23X)
90387-121H1-00
Unavailable
33
BOLT
90109-10702-00
Unavailable
34
NIPPLE, GREASE
93700-06005-00
Unavailable
35
WASHER, PLATE
90201-12027-00
Unavailable
36
WASHER, PLATE(6TC)
90201-10M05-00
Unavailable
37
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
38
BOLT
90109-10703-00
Unavailable
39
NIPPLE, GREASE
93700-06M03-00
Unavailable
40
WASHER (7A9)
90201-100F7-00
Unavailable
41
NUT, U
95614-10100-00
Unavailable
42
EMBLEM, REAR ARM
5X3-2218A-00-00
Unavailable
