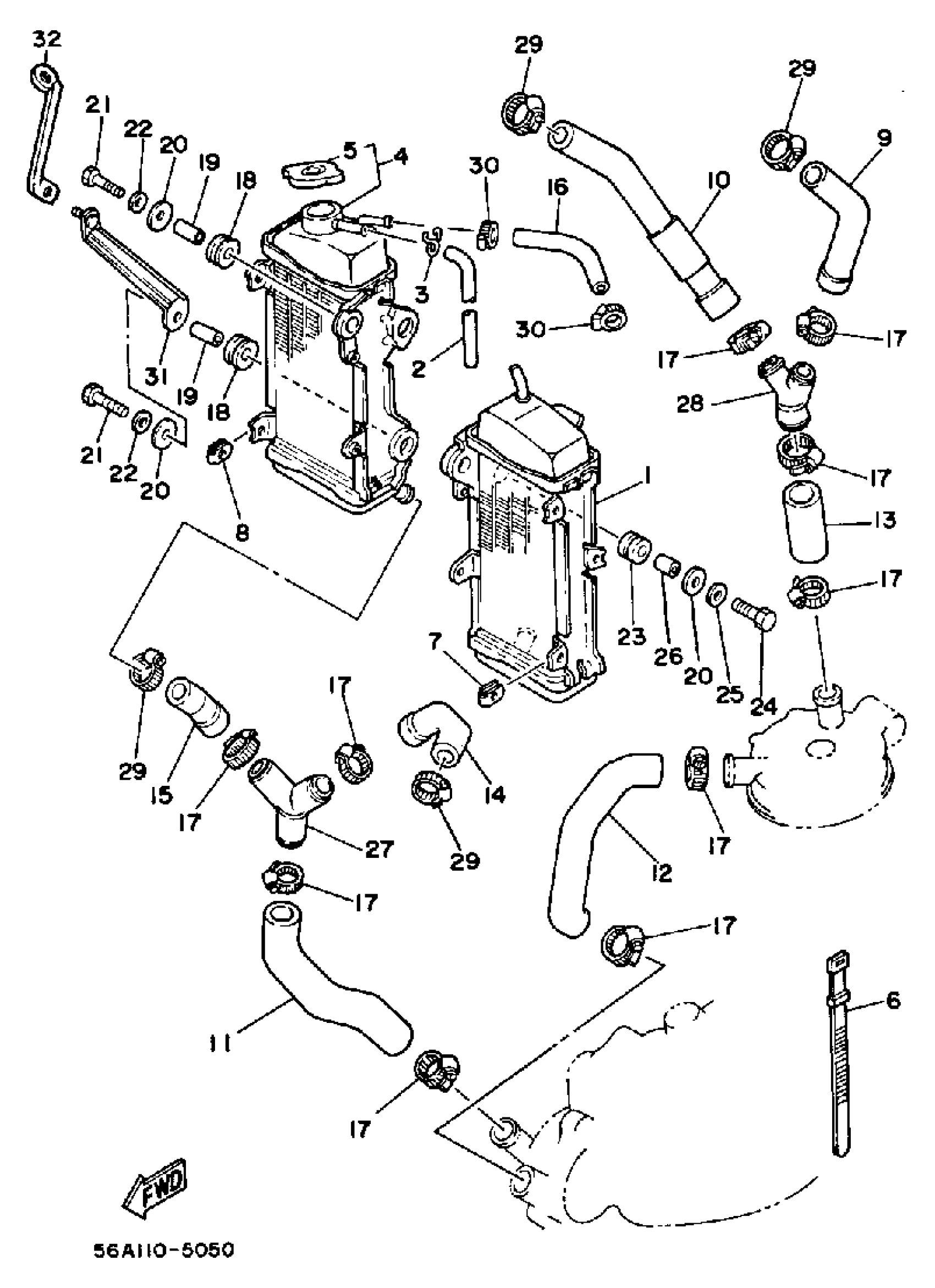

Yamaha YZ250N (YZ250N_85) 56A 1985 RADIATOR-HOSE Diagram

#

Description
Price

1

RADIATOR ASSEMBLY

39X-12460-01-00

Unavailable

2

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$14.99

3

CLIP

90467-090A2-00

$4.41

4

RADIATOR ASSEMBLY 2

39X-1240A-01-00

Unavailable

5

CAP, RADIATOR

4FL-12462-00-00

$62.99

6

BAND, SWITCH CORD

437-83936-11-00

$4.63

7

NUT

22W-21791-00-00

$9.99

8

NUT

22W-21791-00-00

$9.99

9

PIPE 1

39X-12481-00-00

Unavailable

10

PIPE 2

39X-12482-00-00

Unavailable

11

PIPE 3

39X-12483-00-00

Unavailable

12

PIPE 4

39X-12484-00-00

Unavailable

13

PIPE 3

3AK-12483-00-00

Unavailable

14

PIPE 6

39X-12476-00-00

Unavailable

15

PIPE 7

39X-12477-00-00

Unavailable

16

PIPE 8

1LX-1248A-00-00

Unavailable

17

HOSE CLAMP ASSY(3GM)

90450-38040-00

Unavailable

18

GROMMET(663)

90480-15064-00

Unavailable

19

COLLAR(2UJ)

90387-061V1-00

Unavailable

20

WASHER, PLATE (583 FUEL TANK)

90201-06570-00

Unavailable

21

BOLT, HEXAGON

97017-06030-00

Unavailable

22

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

23

GROMMET (4L0)

90480-18276-00

Unavailable

24

BOLT, HEXAGON

97017-06020-00

Unavailable

25

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

26

COLLAR

90387-06113-00

Unavailable

27

JOINT 1

24X-12469-00-00

Unavailable

28

JOINT 1

24Y-12469-00-00

Unavailable

29

CLAMP, HOSE

90460-22252-00

Unavailable

30

BAND (MADE IN CANADA)

90460-15227-00

Unavailable

31

PROTECTOR

56A-12498-00-00

Unavailable

32

PROTECTOR

56A-12498-00-00

Unavailable
