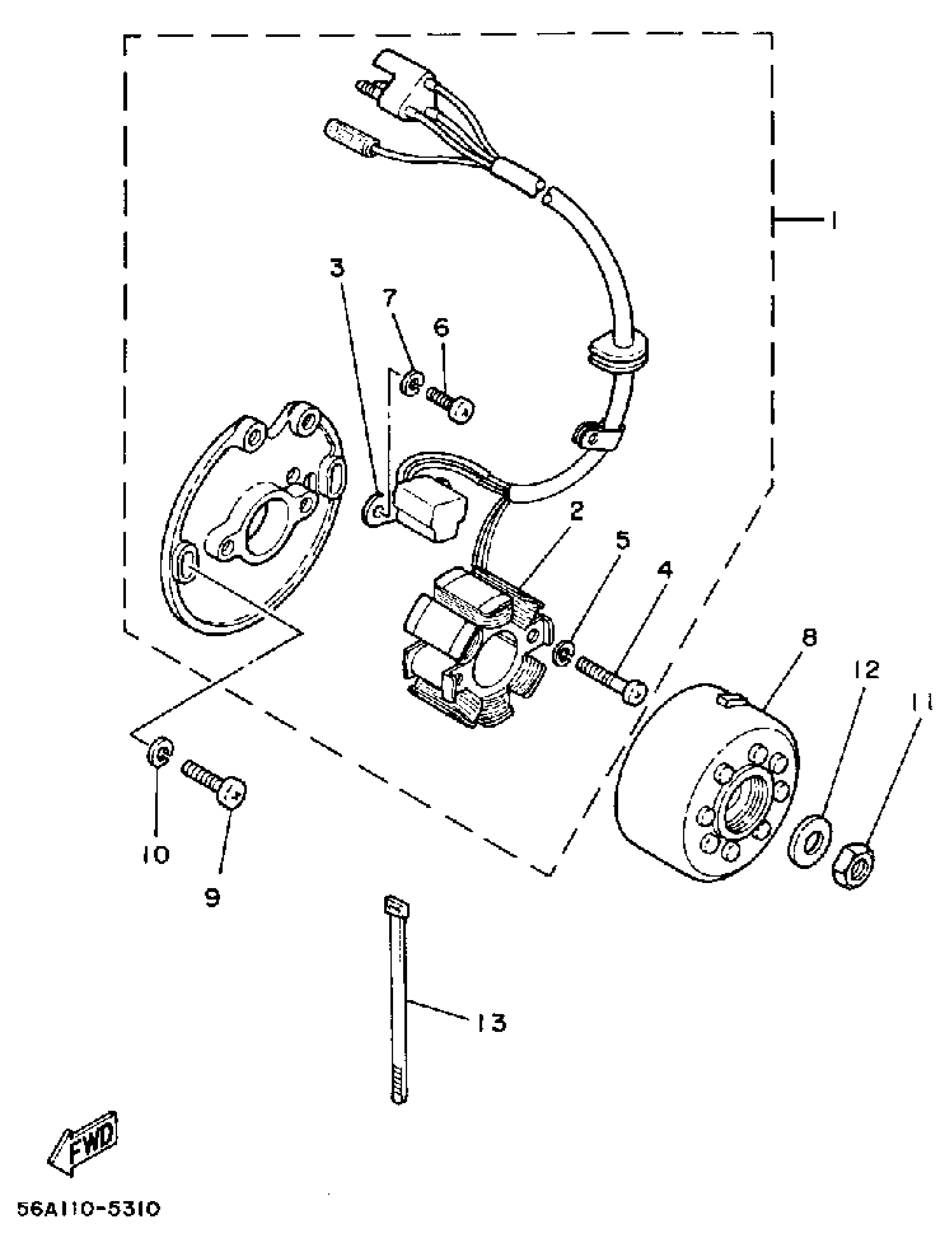

Yamaha YZ250N (YZ250N_85) 56A 1985 GENERATOR Diagram

#

Description
Price

1

STATOR ASSEMBLY

56A-85510-K1-00

Unavailable

2

. COIL, CHARGE

56A-85520-K0-00

Unavailable

3

. COIL, PULSER

56A-85580-K0-00

Unavailable

4

SCREW, PAN HEAD

(92503-05030-00)

Unavailable

5

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

6

SCREW, PAN HEAD(6B0)

97885-05016-00

$4.09

7

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

8

ROTOR ASSEMBLY

56A-85550-K0-00

Unavailable

9

SCREW PAN HEAD

98580-06020-00

$4.89

10

WASHER, PLATE (4H7)

90201-061A5-00

$5.47

11

NUT(3BM)

95314-10600-00

$1.61

12

WASHER, PLATE (3L6)

90201-10774-00

$5.81

13

BAND, SWITCH CORD

437-83936-11-00

$3.34
