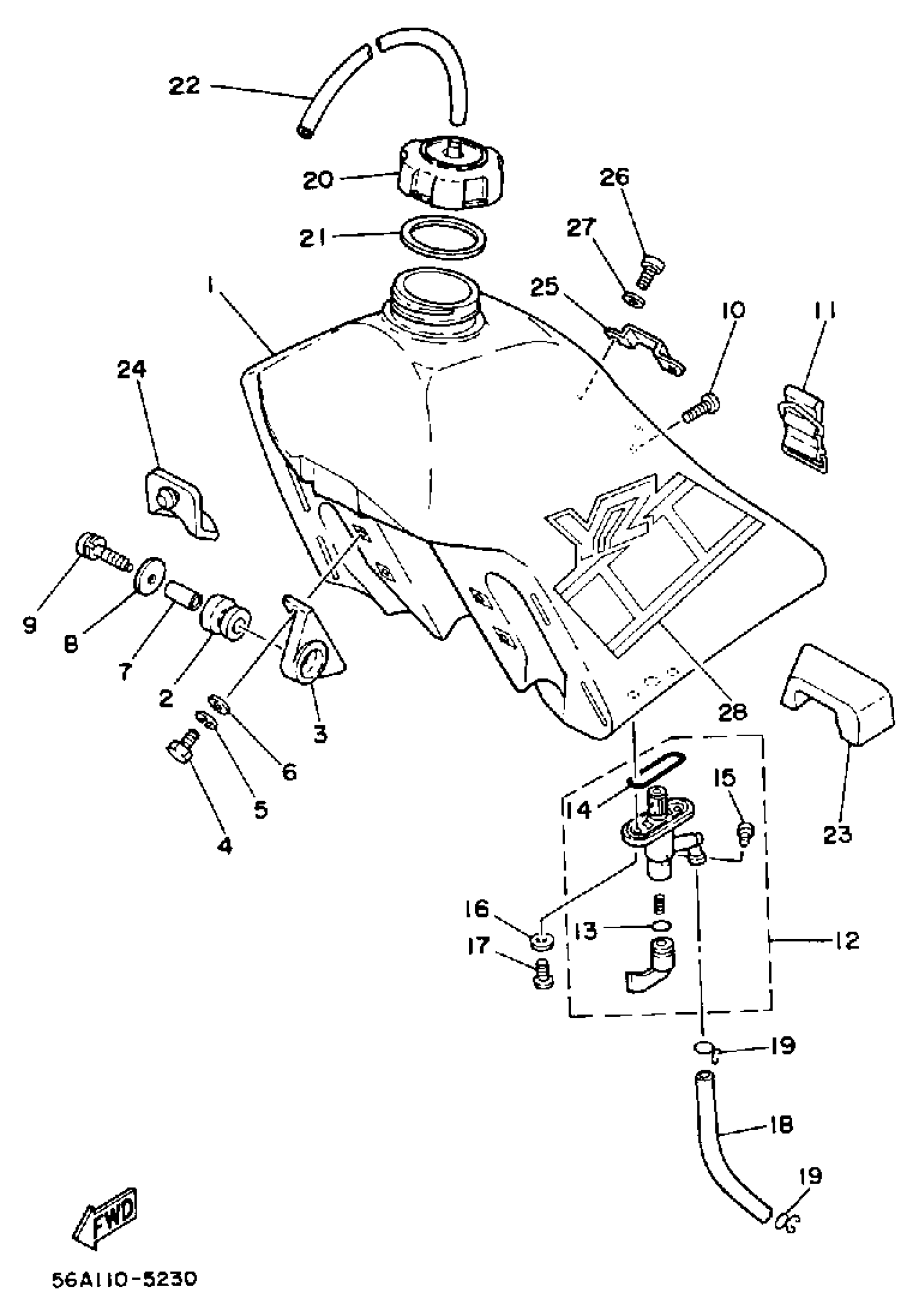

Yamaha YZ250N (YZ250N_85) 56A 1985 FUEL TANK Diagram

FUEL TANK

39X-24110-10-00

Unavailable

GROMMET(4AA)

90480-18549-00

$10.49

HOLDER DAMPER

24X-23144-00-00

Unavailable

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

WASHER, SPRING

92995-06100-00

Unavailable

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

COLLAR

90387-06387-00

Unavailable

WASHER, PLATE (J10)

90201-06697-00

$8.49

BOLT, WITH WASHER (24X)

90119-06073-00

$8.49

SCREW(3JM)

90149-06306-00

$8.49

BAND, TANK FITTING 1

59V-24173-00-00

$18.49

FUEL COCK ASSY

2K5-24500-00-00

$86.99

GASKET, BODY

214-24512-00-00

$30.99

O-RING

1A0-24512-00-00

Unavailable

. SCREW, LEVER FITTING

619-24535-00-00

Unavailable

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

SCREW 256241430000

90149-06011-00

Unavailable

HOSE (L370)

90445-112E1-00

Unavailable

CLIP

90467-100A1-00

Unavailable

BODY, CAP

5X7-24611-01-00

Unavailable

PACKING, CAP

5X7-24612-00-00

Unavailable

HOSE (L420)

90445-092K1-00

Unavailable

DAMPER, LOCATING 1

39X-24181-00-00

Unavailable

DAMPER, LOCATING 4

23X-24184-00-00

Unavailable

BRACKET, SEAT

5X6-2412F-00-00

Unavailable

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

GRAPHIC SET

56A-24250-11-00

Unavailable
