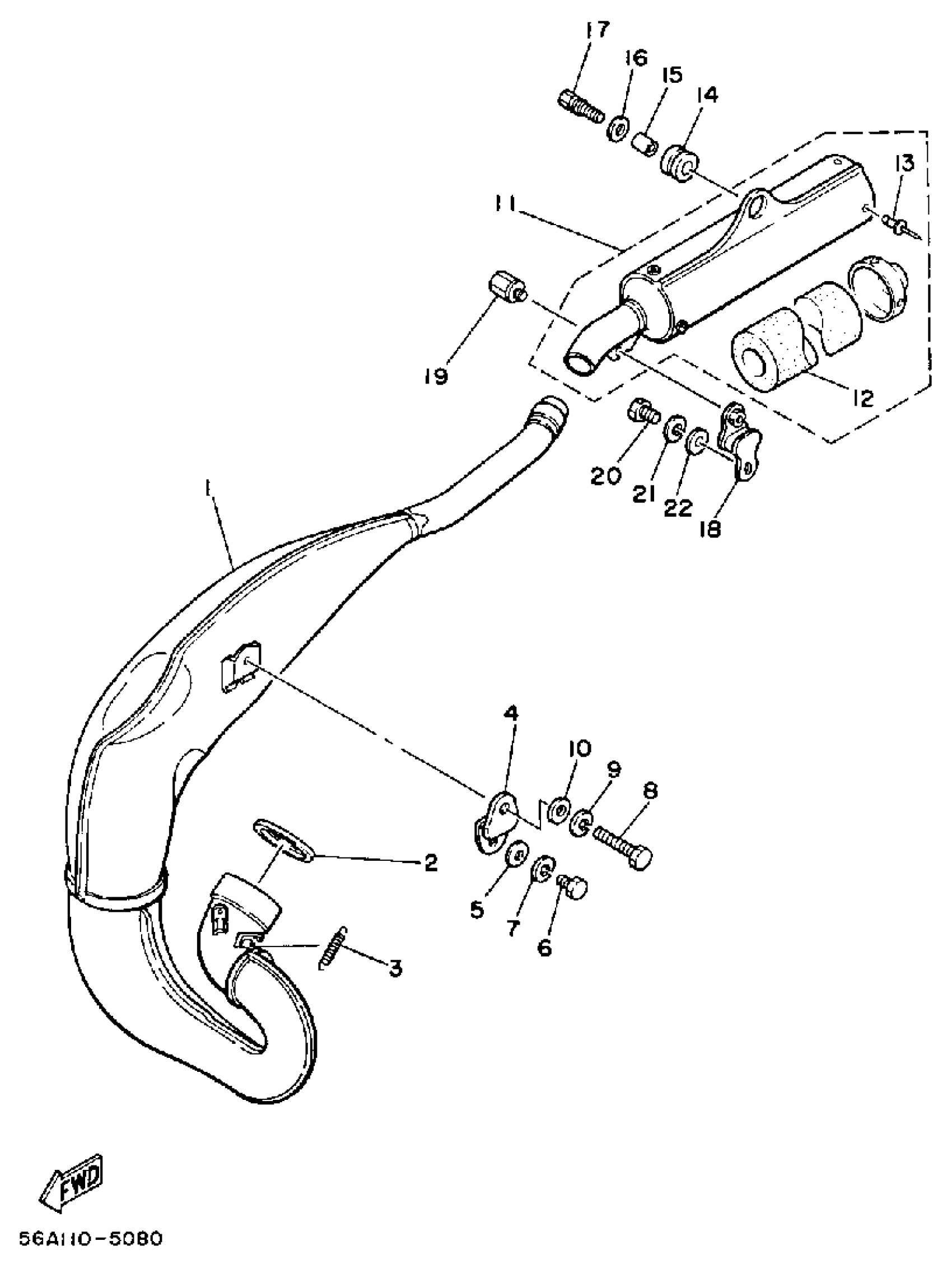

Yamaha YZ250N (YZ250N_85) 56A 1985 EXHAUST Diagram
#
Description
Price
1
EXHAUST PIPE ASSEMBLY L
56A-14610-00-00
Unavailable
2
GASKET
24Y-14613-10-00
Unavailable
4
STAY, MUFFLER 1
24Y-14771-00-00
Unavailable
8
BOLT
97303-08060-00
Unavailable
10
.. WASHER, PLATE
92990-08600-00
Unavailable
11
SILENCER, EXHAUST
56A-14753-00-00
Unavailable
12
. FIBER
56A-1469A-00-00
Unavailable
14
DAMPER, MUFFLER
39X-14747-00-00
Unavailable
15
COLLAR
90387-181A3-00
Unavailable
16
WASHER, PLATE (1A0)
90201-08612-00
Unavailable
17
BOLT, HEXAGON (2X4)
90109-08512-00
Unavailable
18
STAY, MUFFLER 1
565-14771-01-00
Unavailable
19
BOLT (3R4)
90109-06551-00
Unavailable
20
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
21
WASHER, SPRING
92995-06100-00
Unavailable
22
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
