- YZ250N (YZ250N_85) 56A 1985
CRANKSHAFT-PISTION

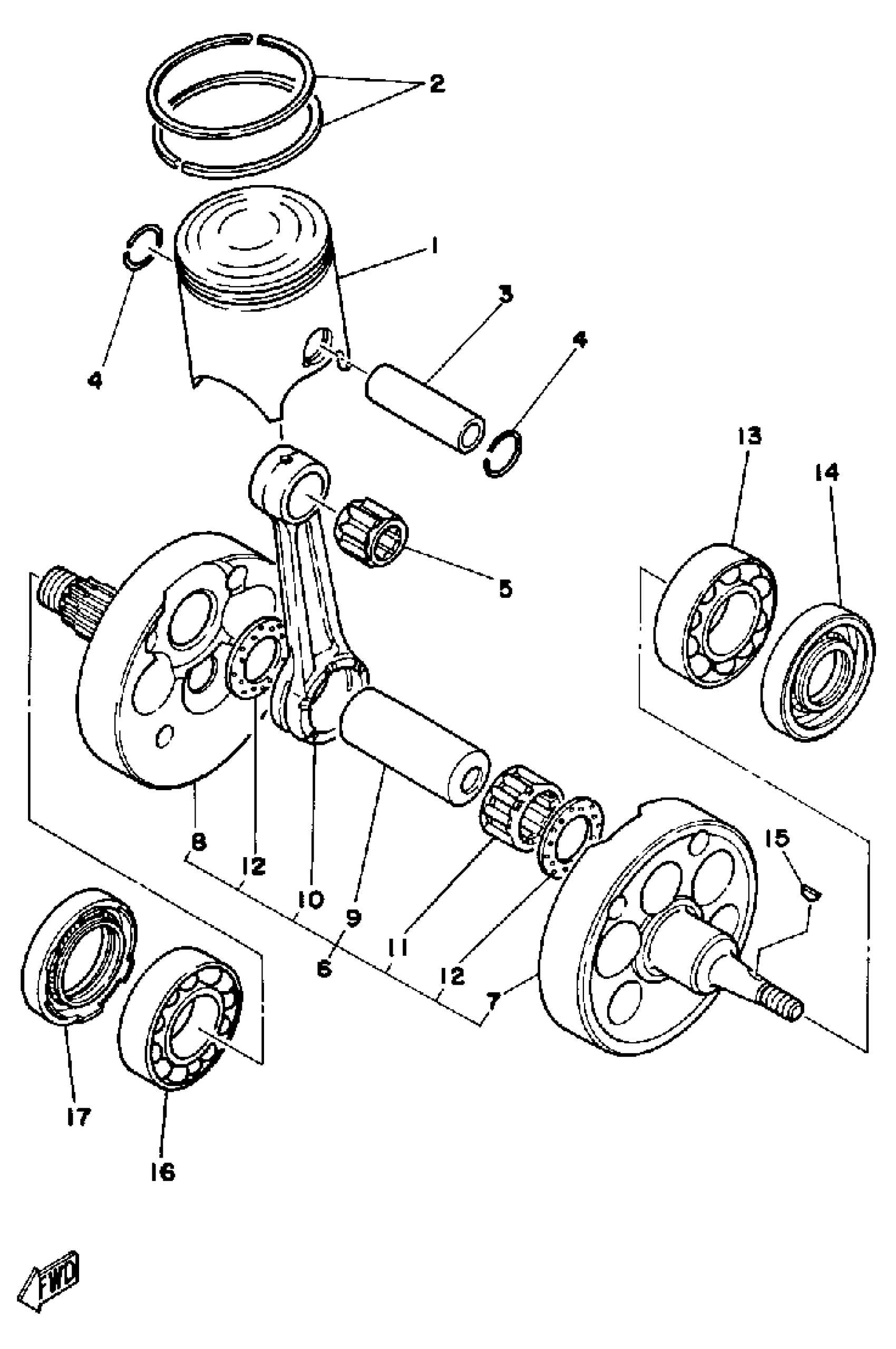

Yamaha YZ250N (YZ250N_85) 56A 1985 CRANKSHAFT-PISTION Diagram
#
1
PISTON 1 O/S 0.25
1LU-11635-01-00
Unavailable
1
. PISTON 2 O/S 050
1LU-11636-01-00
Unavailable
1
. PISTON 3 O/S 075
1LU-11637-01-00
Unavailable
1
PISTON STD
1LU-11631-01-93
Unavailable
2
PISTON RING SET (STD)
56A-11601-00-00
Unavailable
2
PISTON RING SET (0.25MM O/S)
56A-11601-10-00
Unavailable
2
PISTON RING SET (0.50MM O/S)
56A-11601-20-00
Unavailable
2
PISTON RING SET (0.75MM O/S)
56A-11601-30-00
Unavailable
3
PIN, PISTON
214-11633-00-00
Unavailable
6
CRANKSHAFT ASSEMBLY
56A-11400-01-00
Unavailable
7
. CRANK 1
24Y-11412-01-00
Unavailable
8
. CRANK 2
24Y-11422-01-00
Unavailable
10
. ROD, CONNECTING
24Y-11651-01-00
Unavailable
11
BEARING, CYLINDRICAL(4JW)
93310-425P2-00
Unavailable
12
WASHER 275116850000
90209-25085-00
Unavailable
13
BEARING (5X5)
93306-20627-00
Unavailable
14
OIL SEAL(38V)
93103-30150-00
Unavailable
15
KEY WOODRUFF 146115450000
90280-03017-00
Unavailable
16
BEARING (5X5)
93306-20627-00
Unavailable
17
PISTON 1 O/S 0.25
1LU-11635-01-00
Unavailable
17
. PISTON 2 O/S 050
1LU-11636-01-00
Unavailable
17
. PISTON 3 O/S 075
1LU-11637-01-00
Unavailable
17
PIN, PISTON
214-11633-00-00
Unavailable
17
. CONNECTING ROD ASSEMBLY
24Y-11650-01-00
Unavailable
17
. ROD, CONNECTING
24Y-11651-01-00
Unavailable
17
PISTON RING SET (STD)
56A-11601-00-00
Unavailable
17
PISTON RING SET (0.25MM O/S)
56A-11601-10-00
Unavailable
17
PISTON RING SET (0.50MM O/S)
56A-11601-20-00
Unavailable
17
PISTON RING SET (0.75MM O/S)
56A-11601-30-00
Unavailable
17
PISTON KIT
56A-11630-00-00
Unavailable
17
PISTON KIT
56A-11630-10-00
Unavailable
17
PISTON KIT
56A-11630-20-00
Unavailable
17
PISTON KIT (3RD O/S)
56A-11630-30-00
Unavailable
17
PISTON STD
1LU-11631-01-93
Unavailable
17
WASHER 275116850000
90209-25085-00
Unavailable
17
OIL SEAL (434)
93103-40091-00
Unavailable
17
BEARING, CYLINDRICAL(4JW)
93310-425P2-00
Unavailable
