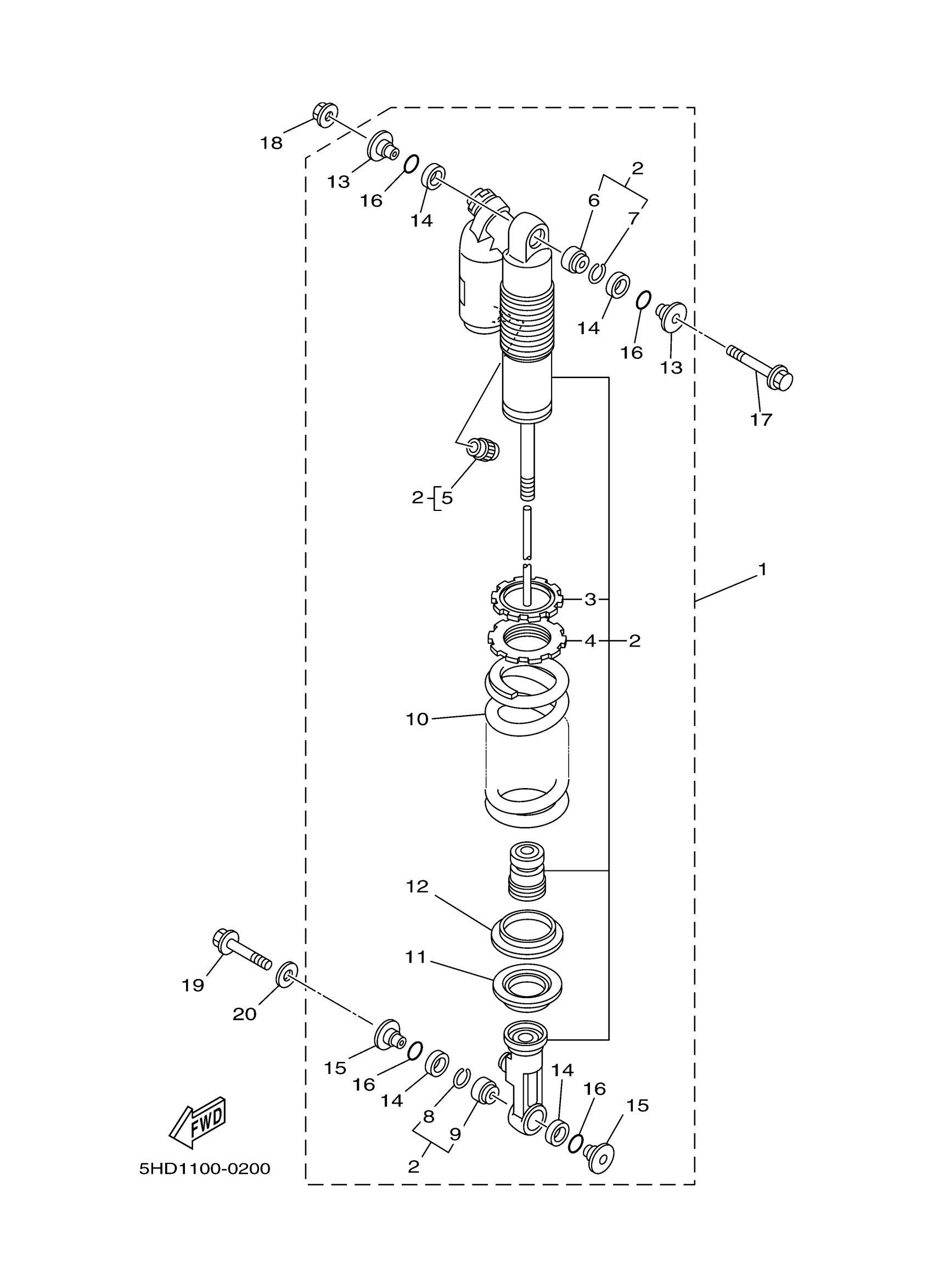

Yamaha YZ250M1 (YZ250) 5HC1 2000 REAR SUSPENSION Diagram

SHOCK ABSORBER ASSY, REAR

5MW-22210-40-00

Unavailable

DAMPER SUB ASSY

5HC-22201-00-00

Unavailable

GUIDE, SPRING 3

3SP-22234-00-00

$43.99

SEAT, SPRING UPPER

3SP-22213-00-00

$46.99

CAP, AIR VALVE

509-23184-L0-00

$6.99

BUSH, SHOCK ABSORBER LOWER

4JX-22226-00-00

$51.99

CIRCLIP

5DH-23183-00-00

$5.49

CIRCLIP

5DH-23183-00-00

$5.49

BUSH, SHOCK ABSORBER LOWER

4JX-22226-00-00

$51.99

SPRING (K=4.8)

5DH-22212-20-00

Unavailable

. GUIDE, SPRING 1

5DH-22214-00-00

Unavailable

. GUIDE, SPRING 2

5DH-22224-00-00

Unavailable

. COLLAR, DISTANCE

5DH-22253-00-00

Unavailable

SEAL, DUST

3JE-22475-00-00

$13.49

. COLLAR, DISTANCE

4EW-22253-00-00

Unavailable

SEAL, RING

4EW-22474-00-00

Unavailable

B0LT,FLANGE (1KT)

90105-10323-00

Unavailable

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

BOLT, WASHER BASED(3XJ)

90105-10614-00

Unavailable

WASHER, PLATE

90201-112U6-00

Unavailable
