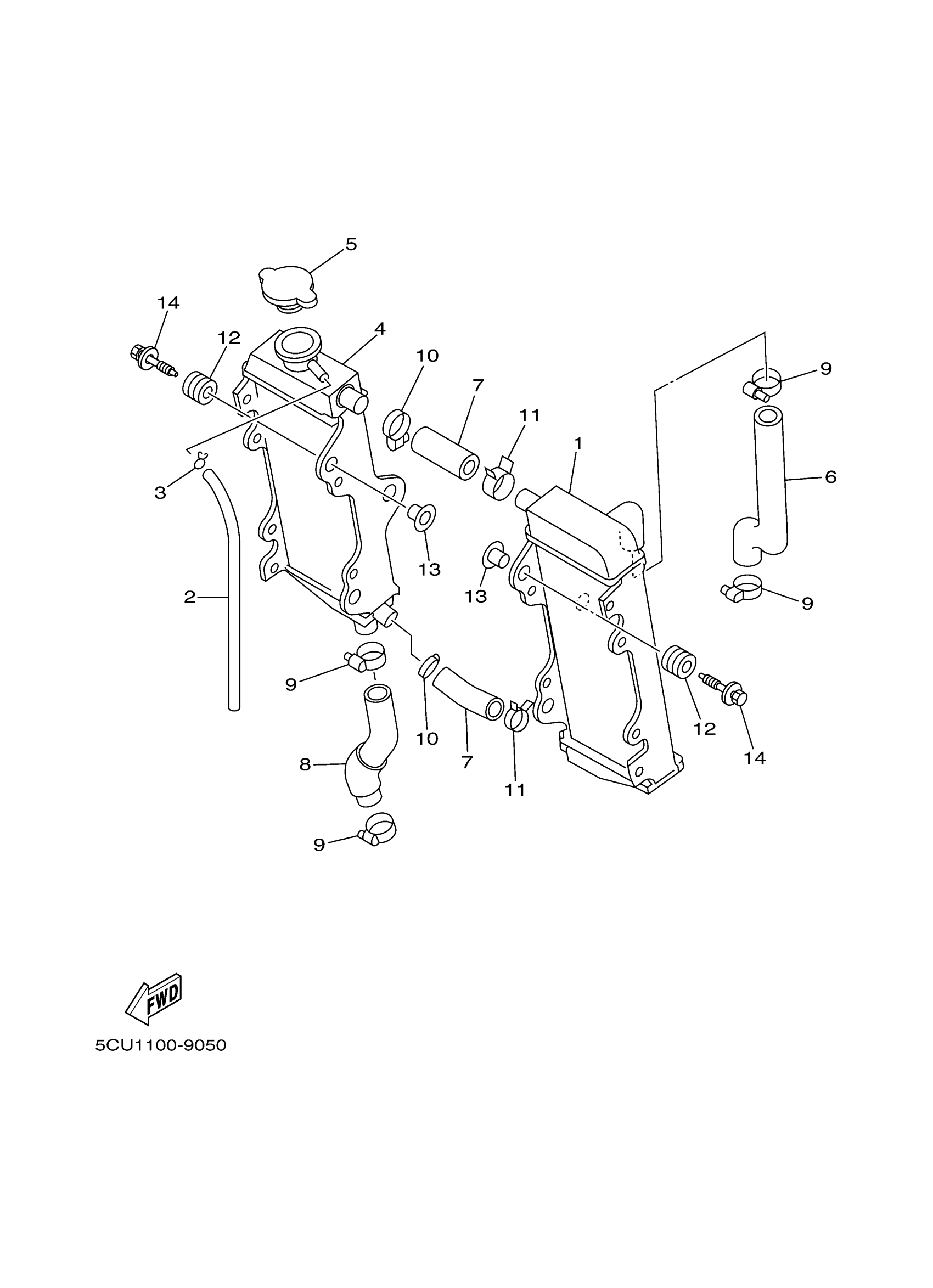

Yamaha YZ250M1 (YZ250) 5HC1 2000 RADIATOR HOSE Diagram

#

Description
Price

1

RADIATOR ASSY

4SR-1240A-10-00

Unavailable

2

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$14.99

3

CLIP

90467-090A2-00

$4.41

4

RADIATOR ASSY

4SR-12461-10-00

Unavailable

5

CAP, RADIATOR

4FL-12462-00-00

$62.99

6

PIPE 1

5CU-12481-00-00

Unavailable

7

HOSE 2

5BE-12577-01-00

Unavailable

8

PIPE 4

5CU-12484-00-00

Unavailable

9

HOSE CLAMP ASSY

90450-28001-00

$14.99

10

HOSE CLAMP ASSY(64X)

90450-22M14-00

$16.99

11

CLIP

90467-21068-00

$7.49

12

GROMMET(3RB)

90480-15528-00

$8.49

13

COLLAR

90387-0614M-00

$11.49

14

BOLT, WITH WASHER(3XP)

90119-06214-00

$8.49
