Description

Price

1

FENDER, FRONT

5HD-21511-00-00

$42.99

2

COLLAR

3JD-21748-00-00

$5.49

3

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

4

EMBLEM, YAMAHA

99241-00080-00

$13.99

5

FENDER, REAR

5BE-21611-10-00

$59.99

6

BOLT, WITH WASHER(3RB)

90119-06192-00

$8.49

7

BOLT, SMALL FLANGE

95027-06030-00

$3.98

8

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

9

NUT, SPRING (26H)

90183-06023-00

$9.49

10

COLLAR(4EW)

90387-0701A-00

$9.49

11

GUARD, FLAP

4ES-21642-01-00

$37.99

12

. BOLT, FLANGE

95027-06020-00

Unavailable

13

COLLAR

90387-06009-00

$10.49

14

SCREW, TRUSS TAP.

97707-60016-00

$1.70

15

WASHER, PLATE

90201-06557-00

$3.30

16

EMBLEM, YAMAHA

99241-00080-00

$13.99

17

EMBLEM 1

5CU-21781-00-00

Unavailable

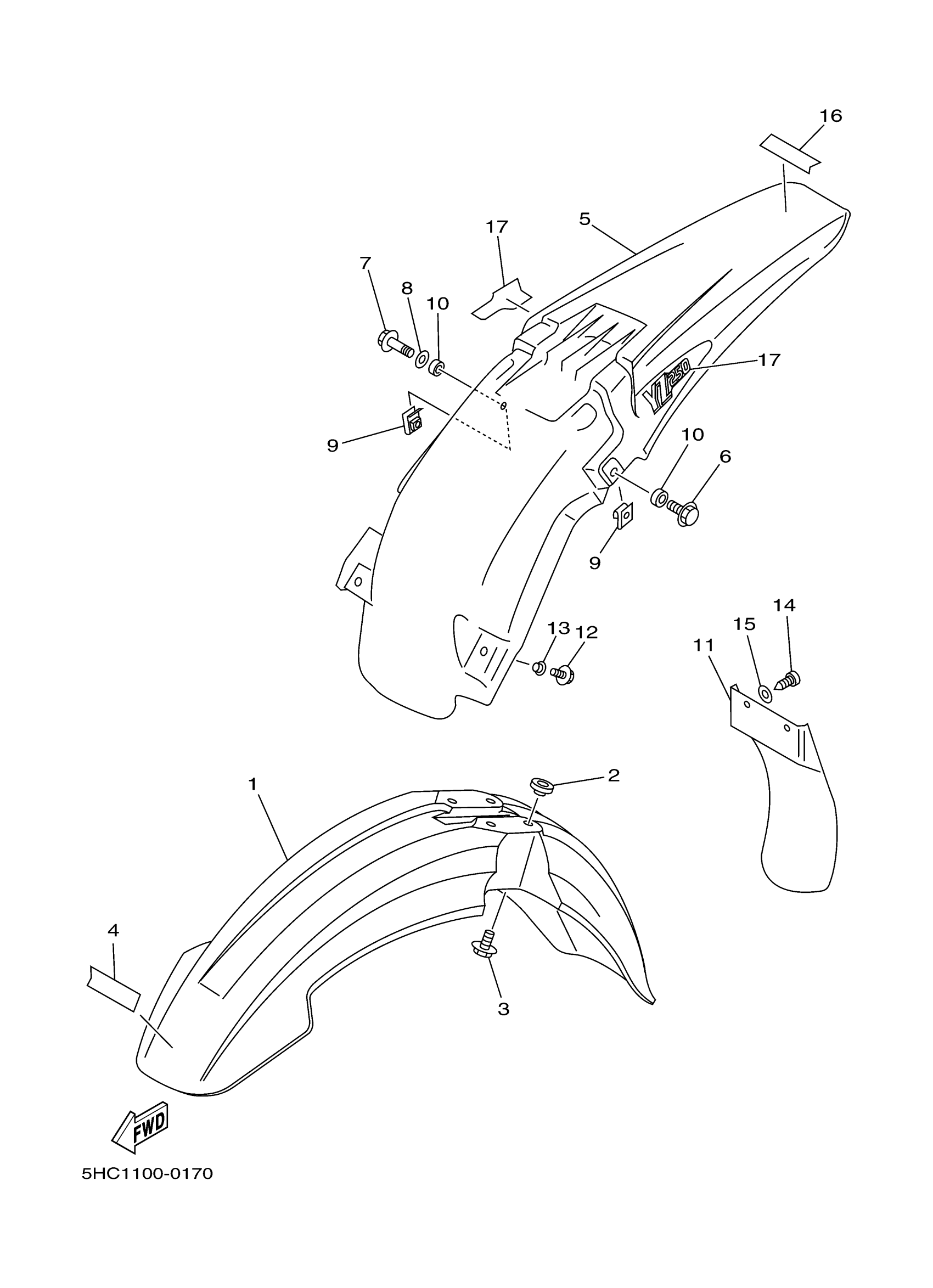

Yamaha YZ250M1 (YZ250) 5HC1 2000 FENDER Diagram

FENDER, FRONT

COLLAR

BOLT, WITH WASHER (30X)

EMBLEM, YAMAHA

FENDER, REAR

BOLT, WITH WASHER(3RB)

BOLT, SMALL FLANGE

WASHER, PLATE(36Y)

NUT, SPRING (26H)

COLLAR(4EW)

GUARD, FLAP

. BOLT, FLANGE

COLLAR

SCREW, TRUSS TAP.

WASHER, PLATE

EMBLEM, YAMAHA

EMBLEM 1
