Description

Price

1

EXHAUST PIPE ASSEMBLY 1

5CU-14610-00-00

Unavailable

2

O-RING

93210-53638-00

$17.99

3

SPRING, TENSION(3FV)

90507-20052-00

$4.99

4

STAY, MUFFLER 1

5CU-14771-01-00

$33.99

5

GROMMET(4EW)

90480-16561-00

$16.99

6

COLLAR(52E)

90387-063G3-00

$8.49

7

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

8

STAY, MUFFLER 2

483-14781-03-00

Unavailable

9

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

10

BOLT, WITH WASHER(3RB)

90119-06192-00

$8.49

11

BOLT, SMALL FLANGE

95027-06025-00

$4.16

12

BOLT, SMALL FLANGE

95027-08012-00

$9.49

13

WASHER, PLATE (12X)

90201-087F0-00

$5.60

14

JOINT, EXHAUST 1

3JE-14615-01-00

$55.99

15

SILENCER, EXHAUST

5HC-14753-10-00

Unavailable

16

BOLT, BUTTON HEAD

92017-06010-00

Unavailable

17

. FIBER

5HC-1469A-10-00

Unavailable

18

GROMMET(4EW)

90480-16561-00

$16.99

19

COLLAR(52E)

90387-063G3-00

$8.49

20

BOLT, SMALL FLANGE

95027-06025-00

$4.16

21

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

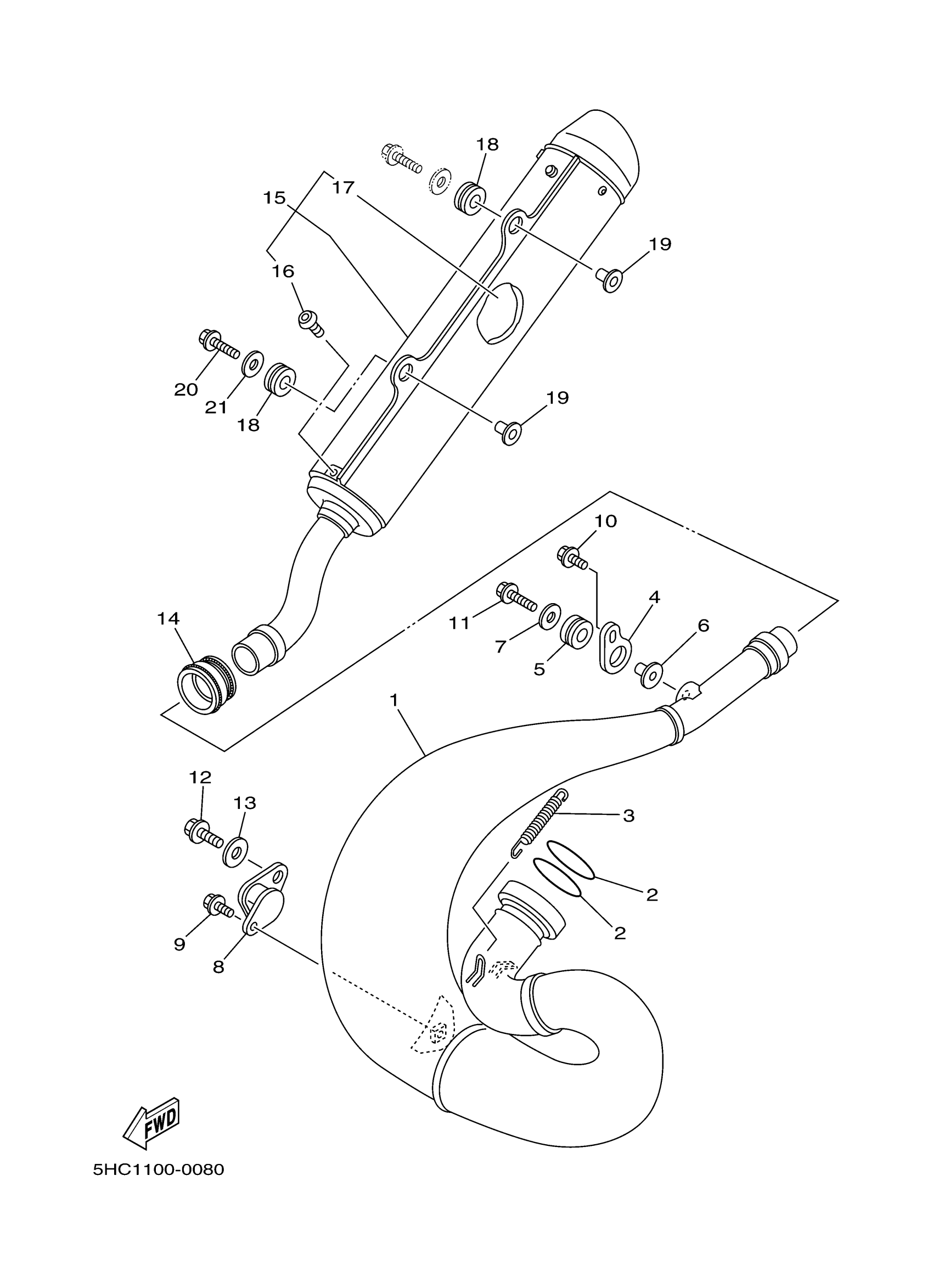

Yamaha YZ250M1 (YZ250) 5HC1 2000 EXHAUST Diagram

EXHAUST PIPE ASSEMBLY 1

O-RING

SPRING, TENSION(3FV)

STAY, MUFFLER 1

GROMMET(4EW)

COLLAR(52E)

WASHER, PLATE(36Y)

STAY, MUFFLER 2

BOLT, FLANGE(4MY)

BOLT, WITH WASHER(3RB)

BOLT, SMALL FLANGE

BOLT, SMALL FLANGE

WASHER, PLATE (12X)

JOINT, EXHAUST 1

SILENCER, EXHAUST

BOLT, BUTTON HEAD

. FIBER

GROMMET(4EW)

COLLAR(52E)

BOLT, SMALL FLANGE

WASHER, PLATE(36Y)
