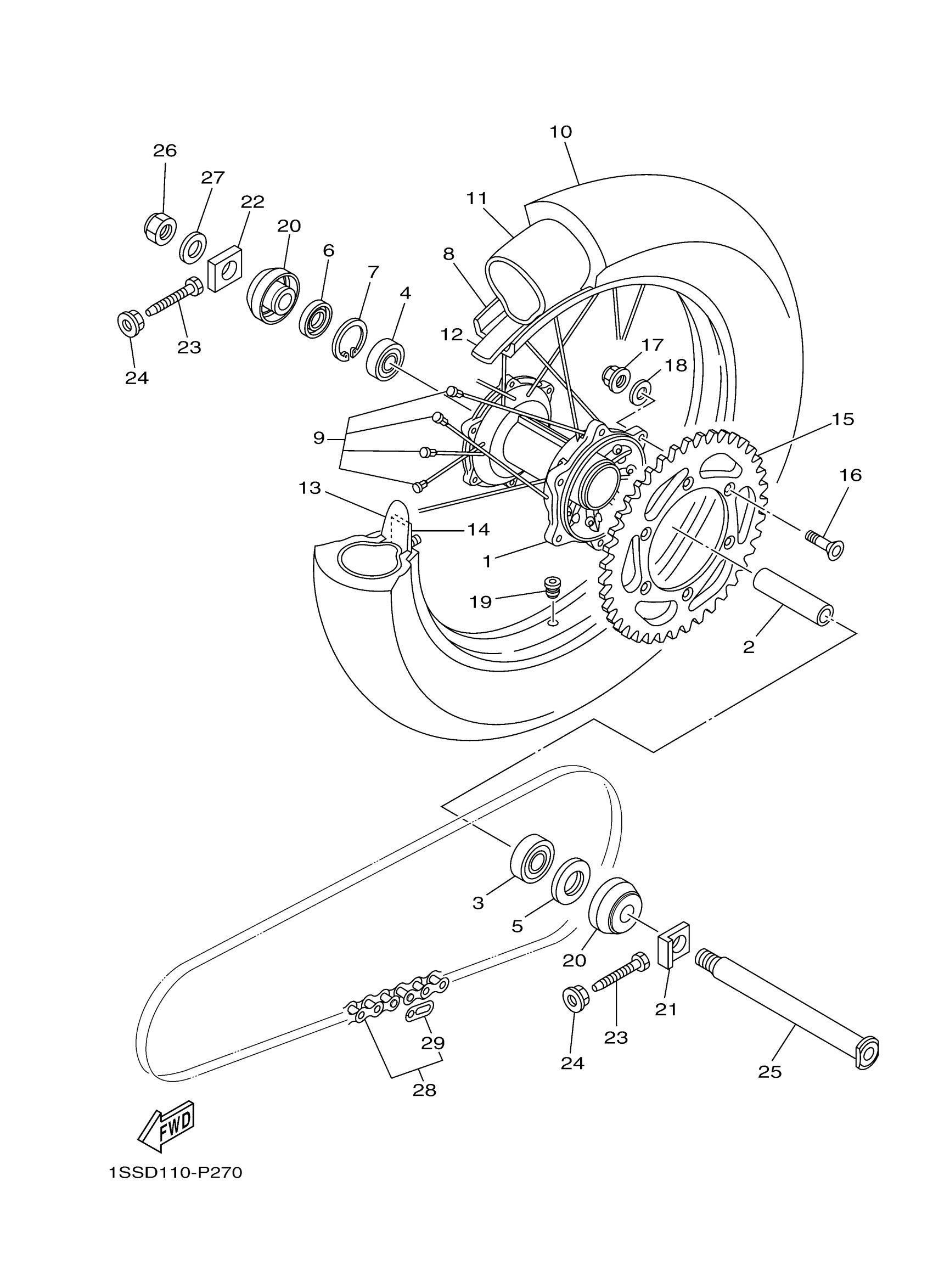

Yamaha YZ250L2 (YZ250) B9U5 2020 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

5ET-25311-00-00

$249.71

2

SPACER, BEARING

5ET-25317-00-00

$40.00

3

BEARING

93306-27212-00

$61.49

4

BEARING(85G)

93306-07202-00

$31.48

5

OIL SEAL

93106-30001-00

$9.34

6

OIL SEAL

93106-30045-00

$7.40

7

CIRCLIP

99009-45500-00

$2.33

8

RIM (2.15-19)

94421-19035-00

Unavailable

9

SPOKE SET, REAR

5HD-25304-00-00

$219.95

10

TIRE (110/90-19 62M MX52)

94111-19027-00

$159.99

11

TUBE(3JE)

94211-19273-00

$53.42

12

BAND, RIM(25-19)

94311-19155-00

$13.70

13

SPACER, BEAD

3JE-25394-00-00

$31.11

14

DAMPER

4XM-25364-00-00

$6.33

15

SPROCKET, DRIVEN (47T)

17D-25447-50-00

$66.68

15

SPROCKET, DRIVEN (48T)

17D-25448-50-00

Unavailable

15

SPROCKET, DRIVEN (49T)

17D-25449-50-00

Unavailable

15

SPROCKET, DRIVEN (50T)

17D-25450-50-00

Unavailable

15

SPROCKET, DRIVEN (51T)

17D-25451-50-00

Unavailable

15

SPROCKET, DRIVEN (52T)

17D-25452-50-00

Unavailable

16

BOLT(3RB)

90109-081G1-00

Unavailable

17

NUT, SELF-LOCKING

90185-08008-00

Unavailable

18

WASHER, PLATE

90201-08043-00

Unavailable

19

GROMMET (397)

90480-10068-00

Unavailable

20

COLLAR ASSY

5TJ-2530S-81-00

Unavailable

21

PULLER, CHAIN 1

1C3-25388-H0-00

Unavailable

22

PULLER, CHAIN 2

1C3-25389-H0-00

Unavailable

23

BOLT

90101-08006-00

Unavailable

24

NUT

90179-08019-00

Unavailable

25

AXLE, WHEEL

1C3-25381-90-00

Unavailable

26

NUT, SELF-LOCKING

90185-20002-00

Unavailable

27

WASHER, PLATE

90201-20020-00

Unavailable

28

CHAIN(DID 520DMA4

9Y582-36113-00

Unavailable

29

JOINT, CHAIN

94682-28001-00

Unavailable
