Description

Price

1

KICK SHAFT ASSEMBLY

5CU-15601-00-00

Unavailable

2

WASHER, PLATE (2K7)

90201-20685-00

$7.49

3

CIRCLIP (525)

93410-20038-00

$3.76

4

SPRING COMPRESSION168156750000

90501-16107-00

Unavailable

5

WASHER, PLATE(4GL)

90201-167P7-00

$9.49

6

CIRCLIP(13T)

99009-16400-00

$5.60

7

GUIDE, SPRING

5GR-15664-00-00

$28.99

8

SPRING, TORSION

90508-305B0-00

$14.99

9

WASHER, PLATE (25H)

90201-162H4-00

$9.49

10

GUIDE, RATCHET WHEEL

3Y6-15674-00-00

Unavailable

11

WASHER, LOCK

214-15686-00-00

$7.99

12

BOLT, HEXAGON

97017-06016-00

$8.49

13

GEAR, KICK IDLE

5CU-15651-00-00

$128.99

14

WASHER PLATE 328171160000

90201-20276-00

$8.49

15

CIRCLIP(1AR)

99009-20400-00

$8.49

16

OIL SEAL

93102-20484-00

Unavailable

17

KICK CRANK ASSY

4EW-15620-02-00

Unavailable

18

BOSS,KICK CRANK

3SP-15621-02-00

Unavailable

19

BALL

93501-04011-00

Unavailable

20

SPRING, COMPRESSION (23X)

90501-13720-00

Unavailable

21

SCREW, COUNTERSUNK (5Y1)

90152-06010-00

Unavailable

22

O-RING

93210-19216-00

Unavailable

23

BOLT, SMALL FLANGE

95027-08020-00

Unavailable

24

WASHER, PLATE (8L8)

90201-087A9-00

Unavailable

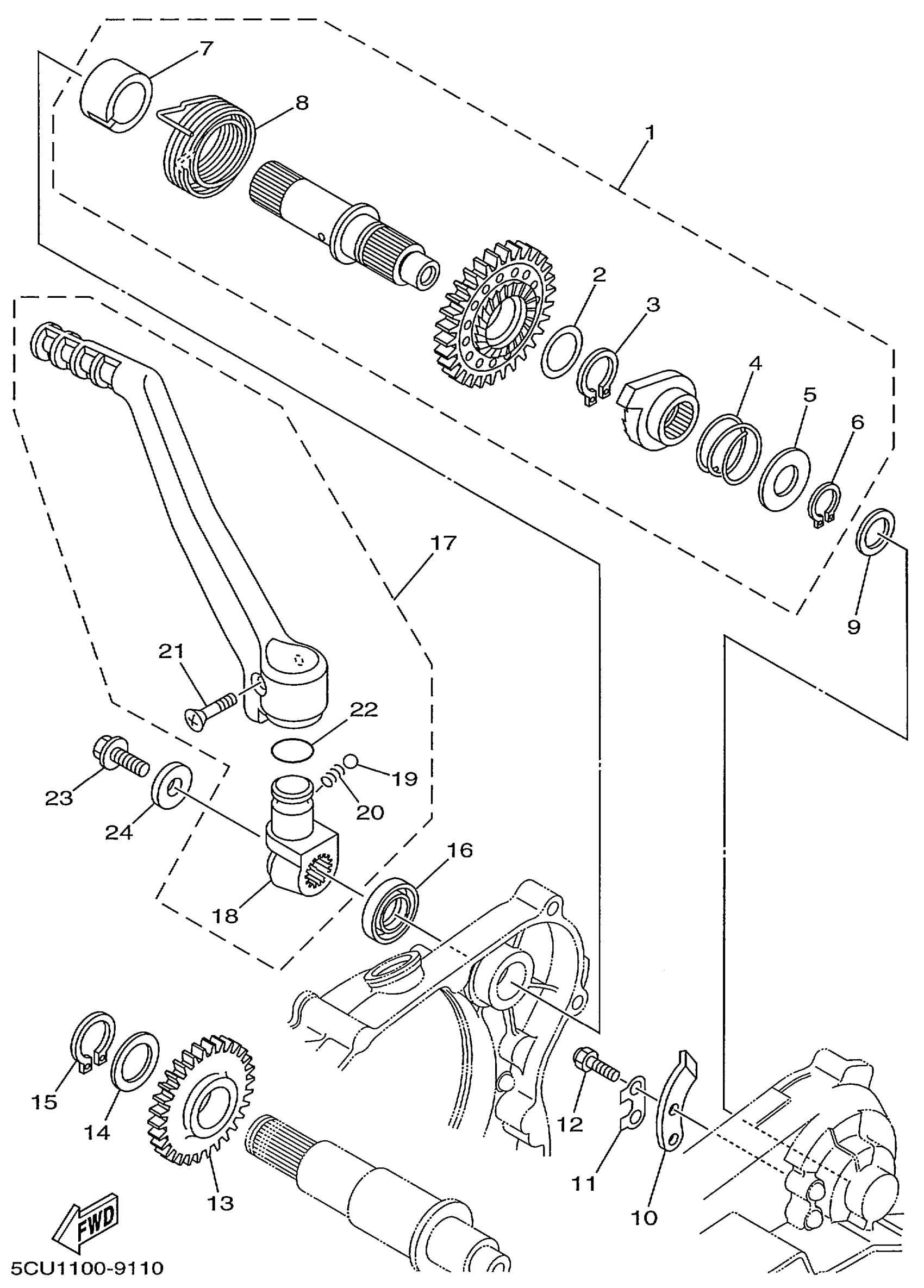

Yamaha YZ250L1 (COMPETITION) 5CU1 1999 STARTER Diagram

KICK SHAFT ASSEMBLY

WASHER, PLATE (2K7)

CIRCLIP (525)

SPRING COMPRESSION168156750000

WASHER, PLATE(4GL)

CIRCLIP(13T)

GUIDE, SPRING

SPRING, TORSION

WASHER, PLATE (25H)

GUIDE, RATCHET WHEEL

WASHER, LOCK

BOLT, HEXAGON

GEAR, KICK IDLE

WASHER PLATE 328171160000

CIRCLIP(1AR)

OIL SEAL

KICK CRANK ASSY

BOSS,KICK CRANK

BALL

SPRING, COMPRESSION (23X)

SCREW, COUNTERSUNK (5Y1)

O-RING

BOLT, SMALL FLANGE

WASHER, PLATE (8L8)
