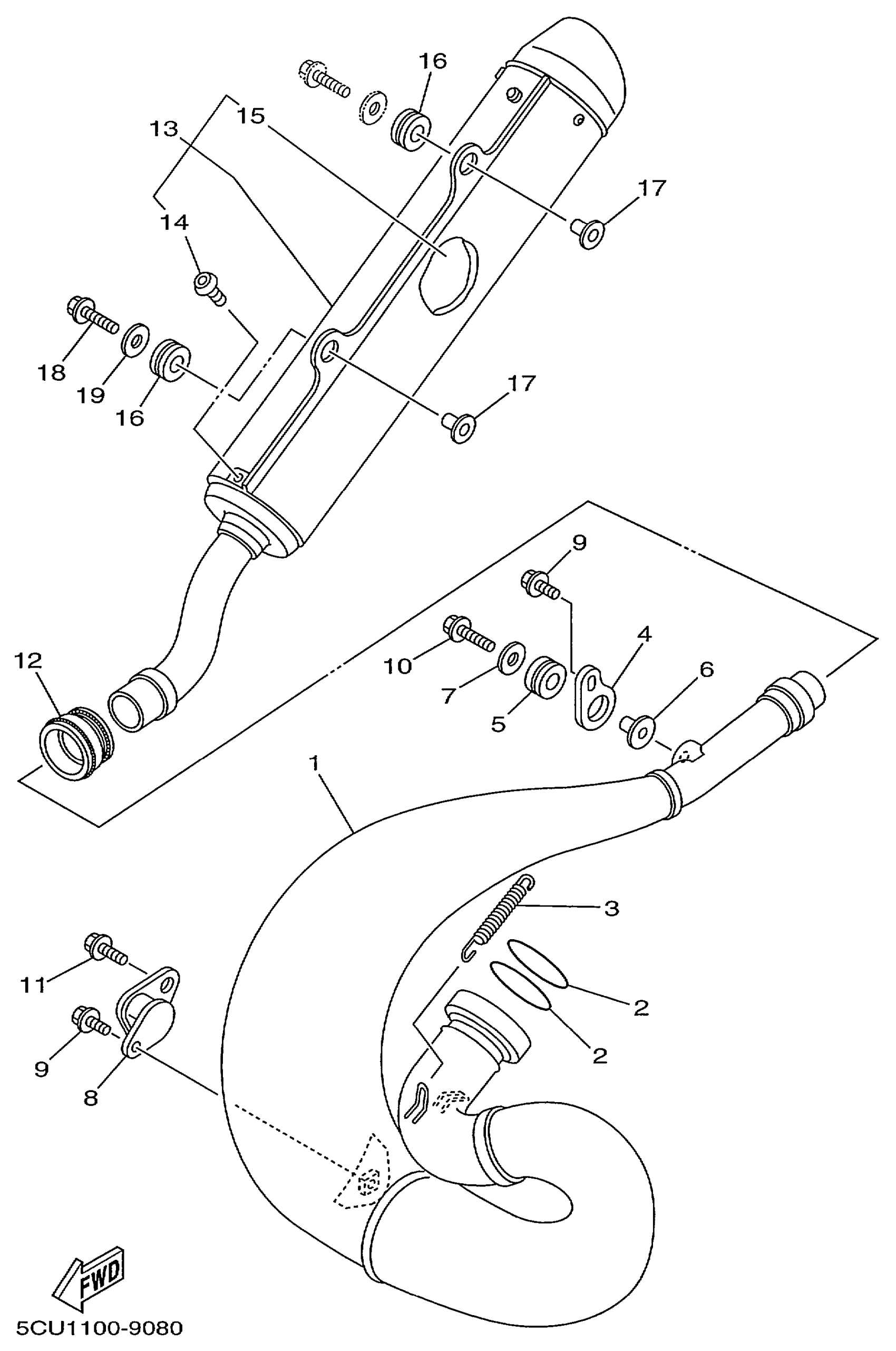

Yamaha YZ250L1 (COMPETITION) 5CU1 1999 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY 1

5CU-14610-00-00

Unavailable

2

O-RING

93210-53638-00

$17.99

3

SPRING, TENSION(3FV)

90507-20052-00

$4.99

4

STAY, MUFFLER 1

5CU-14771-01-00

$33.99

5

GROMMET(4EW)

90480-16561-00

$16.99

6

COLLAR(52E)

90387-063G3-00

$8.49

7

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

8

STAY, MUFFLER 2

483-14781-03-00

Unavailable

9

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

10

BOLT, SMALL FLANGE

95027-06025-00

$4.16

11

BOLT, SMALL FLANGE

95027-08012-00

$9.49

12

JOINT, EXHAUST 1

3JE-14615-01-00

$55.99

13

SILENCER, EXHAUST

5CU-14753-00-00

Unavailable

14

BOLT, BUTTON HEAD

92017-06010-00

$4.82

15

. FIBER

5CU-1469A-00-00

Unavailable

16

GROMMET(4EW)

90480-16561-00

$16.99

17

COLLAR(52E)

90387-063G3-00

$8.49

18

BOLT, SMALL FLANGE

95027-06025-00

$4.16

19

WASHER, PLATE(36Y)

90201-063J2-00

$5.60
