Description

Price

1

PISTON (STD)

5CU-11631-00-A0

Unavailable

1

PISTON (STD)

5CU-11631-00-B0

Unavailable

1

PISTON (STD)

5CU-11631-00-C0

Unavailable

1

PISTON (STD)

5CU-11631-00-D0

Unavailable

2

PISTON RING SET (STD)

5CU-11603-11-00

$49.99

3

PIN, PISTON

5CU-11633-10-00

$46.99

4

CIRCLIP (2F1)

93450-19052-00

$7.49

5

BRG,CYL-CAL ROLLER 15.6G KY

93310-218A6-00

$38.99

6

CRANKSHAFT ASSEMBLY

5CU-11400-00-00

Unavailable

7

. CRANKSHAFT

5CU-11410-00-00

Unavailable

8

. CRANKSHAFT

5CU-11420-00-00

Unavailable

9

PIN, CRANK 1

5CU-11681-00-00

$66.99

10

ROD, CONNECTING

5MW-11651-00-00

$170.99

11

. BEARING

93310-5240J-00

Unavailable

12

WASHER(4DP)

90209-24327-00

$44.99

13

BEARING

93306-37808-00

Unavailable

14

OIL SEAL

93102-20485-00

Unavailable

15

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

16

BEARING

93306-37808-00

Unavailable

17

OIL SEAL

93103-36182-00

Unavailable

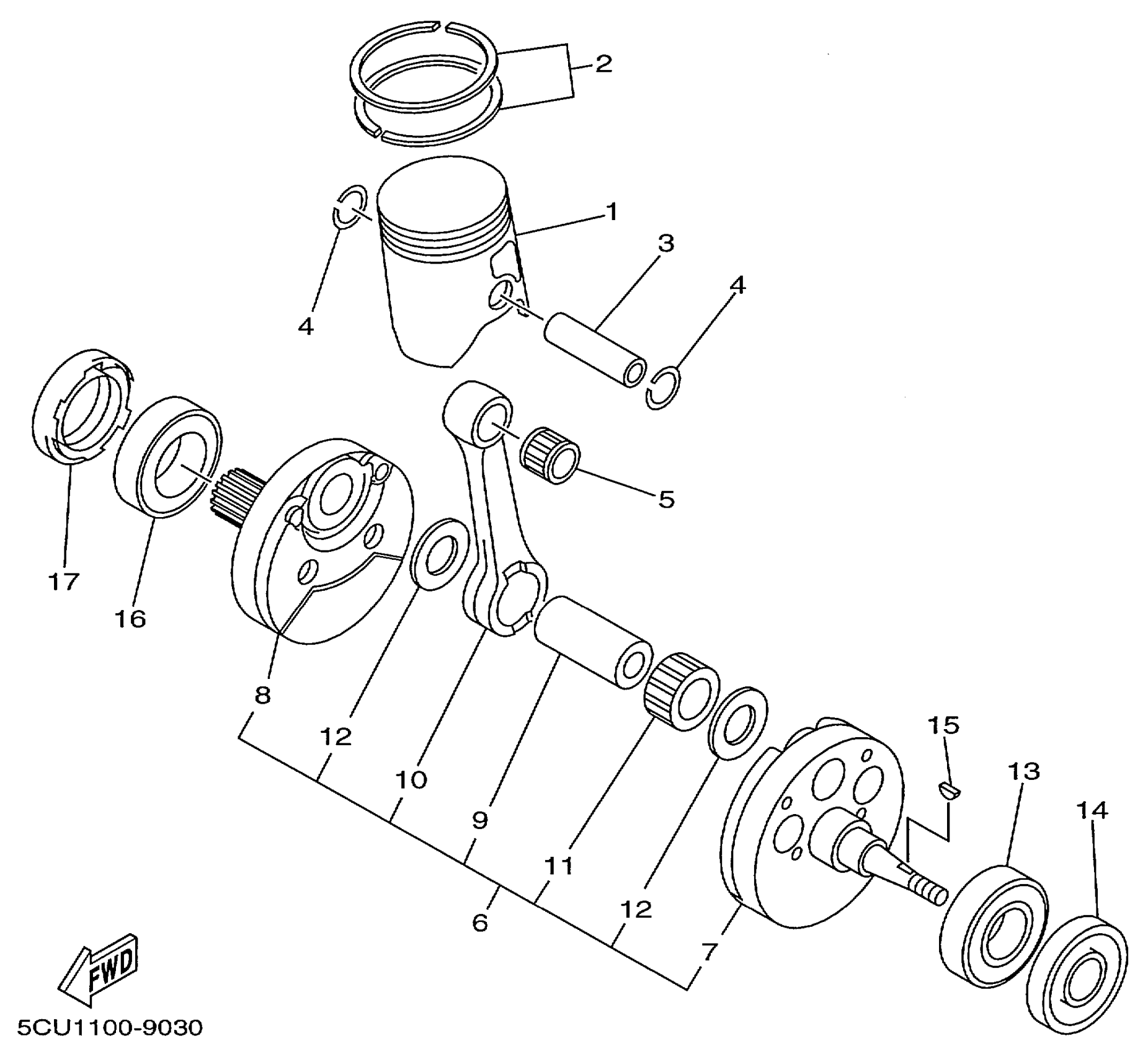

Yamaha YZ250L1 (COMPETITION) 5CU1 1999 CRANKSHAFT PISTON Diagram

PISTON (STD)

PISTON (STD)

PISTON (STD)

PISTON (STD)

PISTON RING SET (STD)

PIN, PISTON

CIRCLIP (2F1)

BRG,CYL-CAL ROLLER 15.6G KY

CRANKSHAFT ASSEMBLY

. CRANKSHAFT

. CRANKSHAFT

PIN, CRANK 1

ROD, CONNECTING

. BEARING

WASHER(4DP)

BEARING

OIL SEAL

KEY WOODRUFF 146115450000

BEARING

OIL SEAL
