Description

Price

1

CRANKCASE 1

99999-03207-00

Unavailable

2

CRANKCASE 2

5CU-15121-01-00

Unavailable

3

BOLT,SOCKET

91317-06050-00

$3.88

4

BOLT,SOCKET

91317-06060-00

$3.76

5

BOLT, SOCKET

91317-06070-00

$4.99

6

PLATE, BEARING COVER

4JT-15381-01-00

$13.49

7

SCREW, COUNTERSUNK

90151-06052-00

$8.49

8

CONNECTOR, SUCTION PIPE

353-13115-01-00

$6.99

9

HOSE (L1500)

90445-084J0-00

$18.99

10

GASKET 1

5CU-15454-00-00

$18.49

11

PIN, DOWEL(4XL)

93612-16254-00

$5.60

12

COLLAR

90387-1712Y-00

Unavailable

13

PLATE, COVER

4L0-17471-00-00

$20.99

14

SCREW, PAN

98517-06012-00

$3.78

15

HOLDER

4V4-15118-00-00

$29.99

16

HOLDER

5CU-15118-10-00

Unavailable

17

BOLT, FLANGE

95817-06012-00

Unavailable

18

PLUG, STRAIGHT SCREW

90340-12006-00

Unavailable

19

GASKET (3JD1)

90430-12207-00

Unavailable

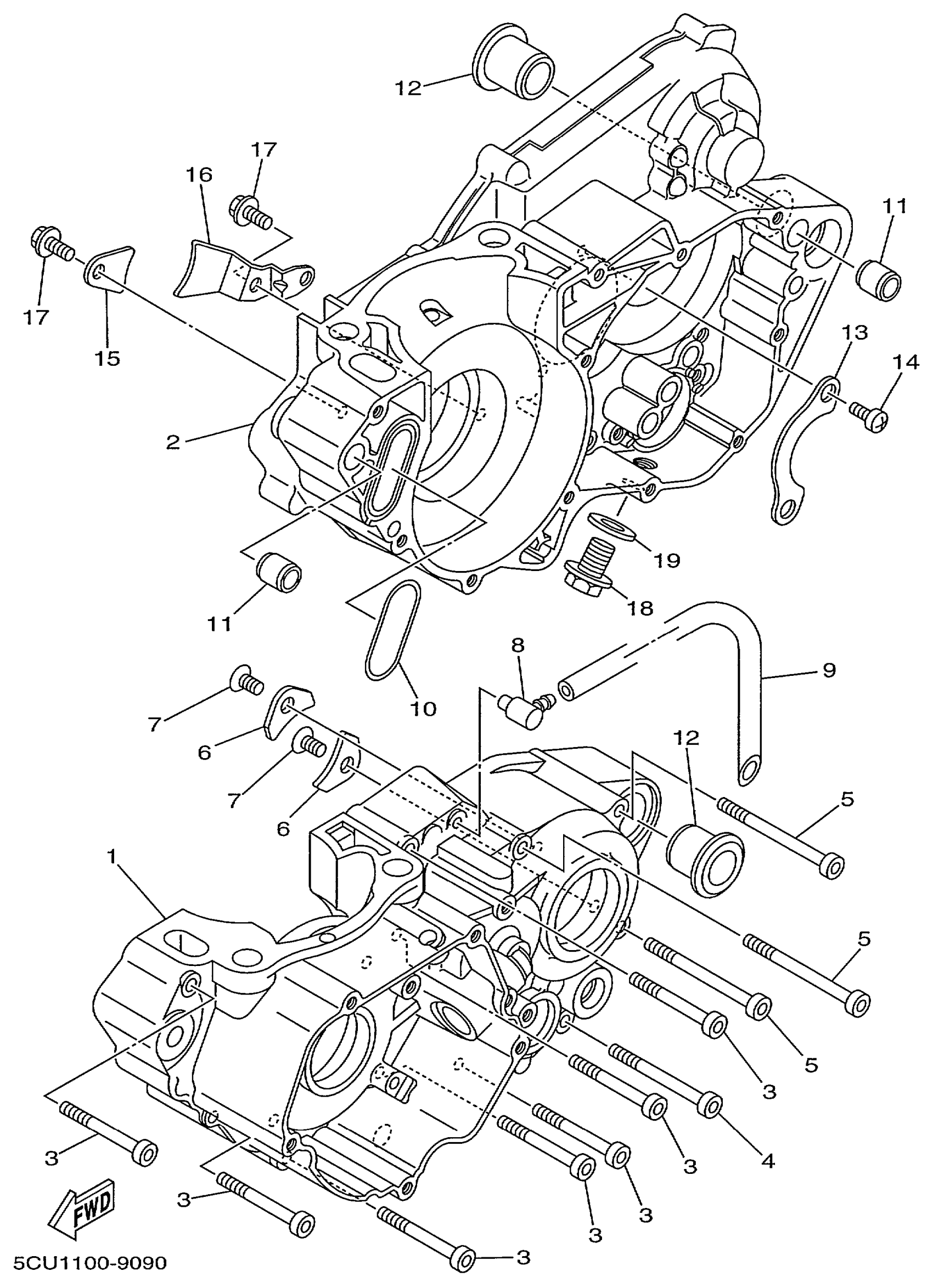

Yamaha YZ250L1 (COMPETITION) 5CU1 1999 CRANKCASE Diagram

CRANKCASE 1

CRANKCASE 2

BOLT,SOCKET

BOLT,SOCKET

BOLT, SOCKET

PLATE, BEARING COVER

SCREW, COUNTERSUNK

CONNECTOR, SUCTION PIPE

HOSE (L1500)

GASKET 1

PIN, DOWEL(4XL)

COLLAR

PLATE, COVER

SCREW, PAN

HOLDER

HOLDER

BOLT, FLANGE

PLUG, STRAIGHT SCREW

GASKET (3JD1)
