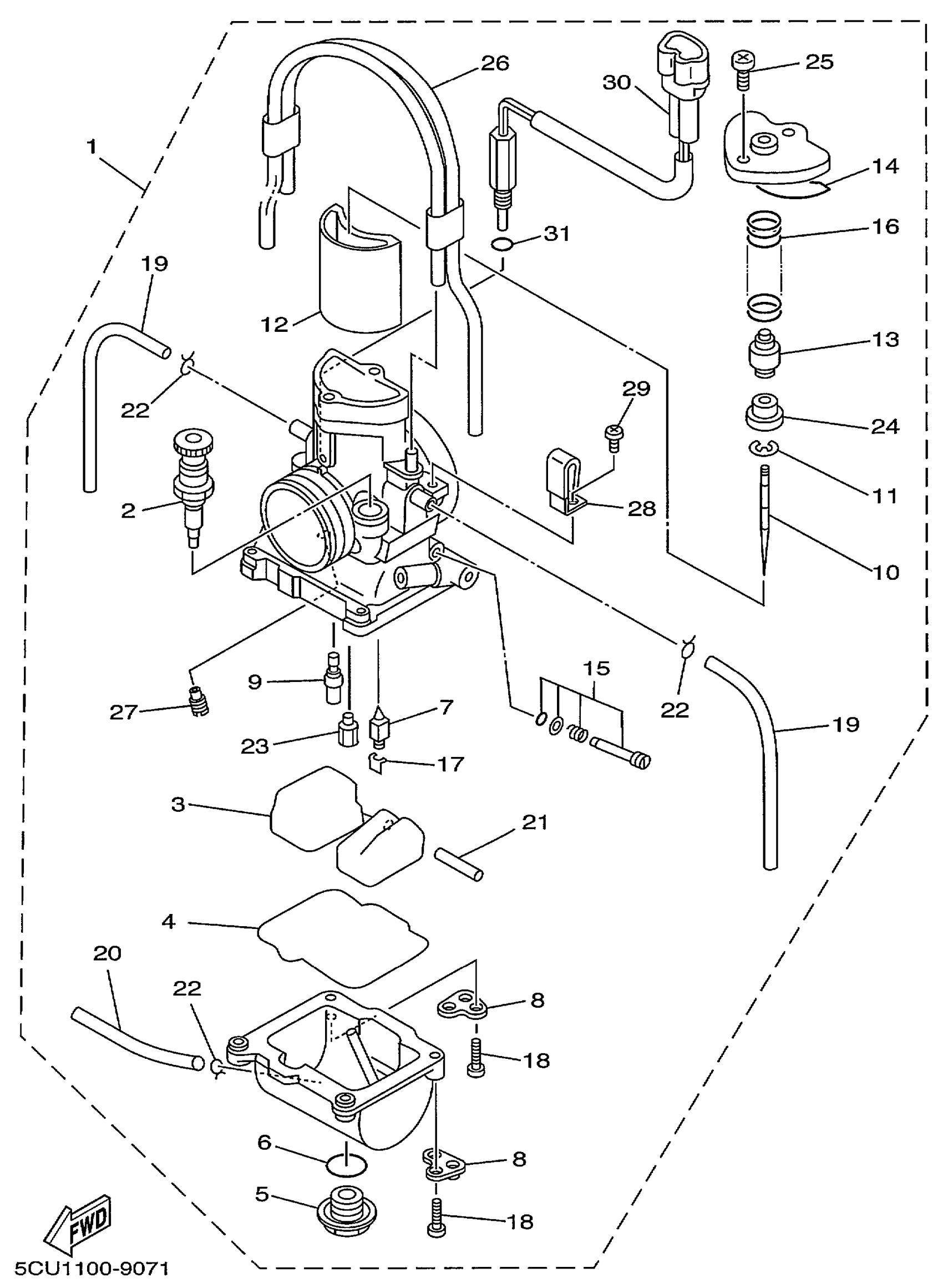

Yamaha YZ250L1 (COMPETITION) 5CU1 1999 CARBURETOR Diagram
#
1
CARBURETOR ASSEMBLY 1
5CU-14101-00-00
Unavailable
2
PLUNGER, STARTER
4SR-14171-00-00
Unavailable
9
JET (#40)
4MX-14948-03-00
Unavailable
10
. NEEDLE (N4AE)
4XL-14916-AE-00
Unavailable
10
. NEEDLE (N4AF)
4XL-14916-AF-00
Unavailable
10
. NEEDLE (N4AG)
4XL-14916-AG-00
Unavailable
10
. NEEDLE (N4AH)
4XL-14916-AH-00
Unavailable
10
. NEEDLE (N4DD)
4XL-14916-DD-00
Unavailable
10
. NEEDLE (N4DE)
4XL-14916-DE-00
Unavailable
10
. NEEDLE (N4DF)
4XL-14916-DF-00
Unavailable
10
. NEEDLE (N4DG)
4XL-14916-DG-00
Unavailable
10
. NEEDLE (N4DH)
4XL-14916-DH-00
Unavailable
10
. NEEDLE (N6ME)
4XL-14916-ME-00
Unavailable
10
. NEEDLE (N6MF)
4XL-14916-MF-00
Unavailable
10
. NEEDLE (N6MG)
4XL-14916-MG-00
Unavailable
10
. NEEDLE (N6MH)
4XL-14916-MH-00
Unavailable
10
. NEEDLE (N3VD)
4XL-14916-VD-00
Unavailable
10
. NEEDLE (N3VE)
4XL-14916-VE-00
Unavailable
10
. NEEDLE (N3VF)
4XL-14916-VF-00
Unavailable
10
. NEEDLE (N3VG)
4XL-14916-VG-00
Unavailable
10
. NEEDLE (N3VH)
4XL-14916-VH-00
Unavailable
11
CLIP
4MX-14919-00-00
Unavailable
12
. VALVE ASSEMBLY
4SR-14340-A6-00
Unavailable
12
. VALVE ASSEMBLY
5DJ-14340-A7-00
Unavailable
13
. HOLDER
4SR-14261-00-00
Unavailable
14
. GASKET
4SR-14126-00-00
Unavailable
15
PILOT SCREW SET
4SR-14105-01-00
Unavailable
16
. SPRING, THROTTLE VALVE
4MX-14131-00-00
Unavailable
17
CLIP
633-14159-00-00
Unavailable
18
SCREW, PAN HEAD(GA5)
98580-04014-00
Unavailable
19
PIPE
4XL-14197-10-00
Unavailable
20
PIPE
4XL-14196-10-00
Unavailable
21
. PIN, FLOAT ARM
663-14548-00-00
Unavailable
22
CLIP
3TJ-14137-40-00
Unavailable
23
JET, MAIN (#165)
4MX-14943-40-00
Unavailable
23
JET, MAIN (#170)
4MX-14943-41-00
Unavailable
23
JET, MAIN (#175)
4MX-14943-42-00
Unavailable
23
JET, MAIN (#180)
4MX-14943-43-00
Unavailable
23
JET, MAIN (#185)
4MX-14943-44-00
Unavailable
23
JET, MAIN (#190)
4MX-14943-45-00
Unavailable
23
JET, MAIN (#168)
4MX-14943-91-00
Unavailable
23
JET, MAIN (#172)
4MX-14943-92-00
Unavailable
23
JET, MAIN (#178)
4MX-14943-93-00
Unavailable
23
JET, MAIN (#182)
4MX-14943-94-00
Unavailable
23
JET, MAIN (#188)
4MX-14943-95-00
Unavailable
23
JET, MAIN (#162)
4MX-14943-90-00
Unavailable
24
RING
4MX-14194-00-00
Unavailable
25
SCREW, PAN HEAD
98511-04012-00
Unavailable
26
HOSE
4XL-1410E-00-00
Unavailable
27
JET (#70)
4JT-1494F-15-00
Unavailable
27
JET (#80)
4JT-1494F-19-00
Unavailable
27
JET (#90)
4JT-1494F-23-00
Unavailable
28
. PLATE
4JT-14146-00-00
Unavailable
29
. SCREW, PAN HEAD
98580-04006-00
Unavailable
30
. FUEL CUT SOLENOID VALVE
5CU-1410H-00-00
Unavailable
31
O-RING
4JT-14147-00-00
Unavailable
