Description

Price

1

CRANKCASE 1

4XL-15111-00-00

Unavailable

2

BOLT,SOCKET

91317-06050-00

$3.88

3

BOLT, SOCKET

91317-06070-00

$4.99

4

PLATE, BEARING COVER

3SP-15381-00-00

Unavailable

5

SCREW, FLAT

98707-06012-00

$8.49

6

CONNECTOR, SUCTION PIPE

353-13115-01-00

$6.99

7

HOSE (L1500)

90445-084J0-00

$18.99

8

CRANKCASE 2

4XL-15121-00-00

Unavailable

9

PIN, DOWEL(4XL)

93612-16254-00

$5.60

10

COLLAR

90387-1712Y-00

Unavailable

11

PLATE, COVER

4L0-17471-00-00

$20.99

12

SCREW, PAN

98517-06012-00

$3.78

13

HOLDER

4V4-15118-00-00

$29.99

14

BOLT, FLANGE

95817-06012-00

$1.43

15

PLUG, STRAIGHT SCREW

90340-12006-00

$8.49

16

GASKET (3JD1)

90430-12207-00

Unavailable

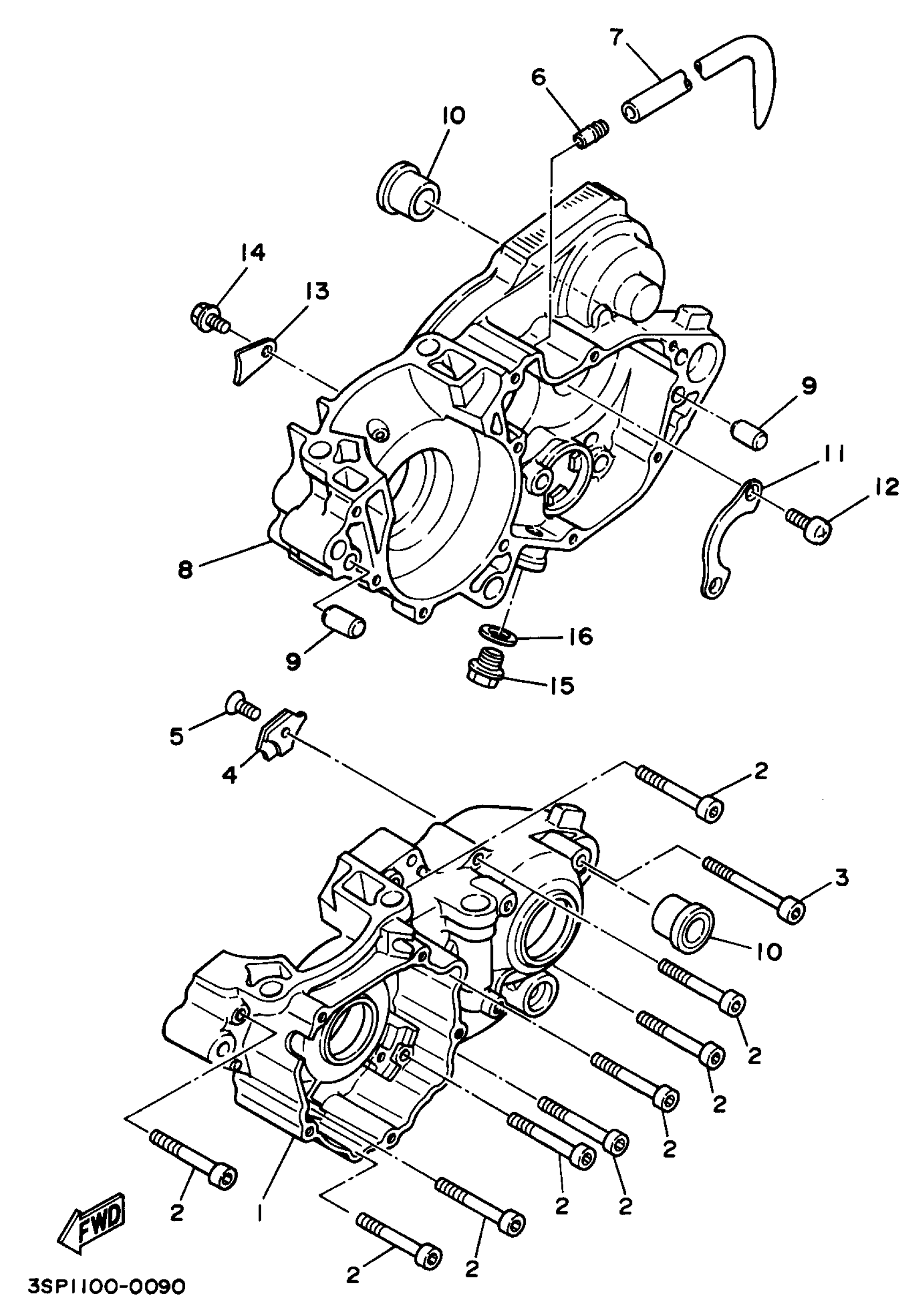

Yamaha YZ250K1 (YZ250) 1998 CRANKCASE Diagram

CRANKCASE 1

BOLT,SOCKET

BOLT, SOCKET

PLATE, BEARING COVER

SCREW, FLAT

CONNECTOR, SUCTION PIPE

HOSE (L1500)

CRANKCASE 2

PIN, DOWEL(4XL)

COLLAR

PLATE, COVER

SCREW, PAN

HOLDER

BOLT, FLANGE

PLUG, STRAIGHT SCREW

GASKET (3JD1)
