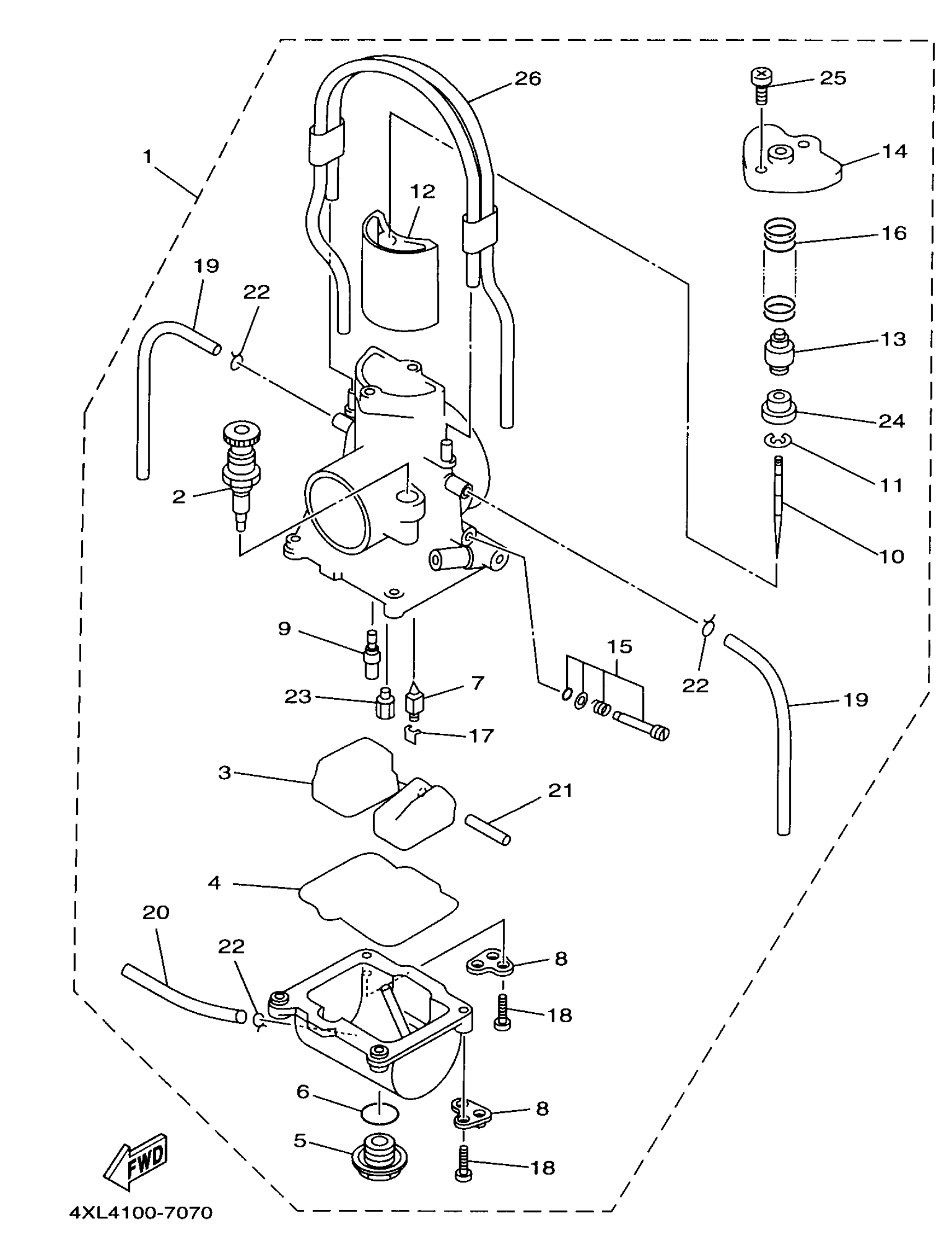

Yamaha YZ250K1 (YZ250) 1998 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

5DJ-14101-00-00

Unavailable

2

PLUNGER, STARTER

4SR-14171-00-00

Unavailable

3

FLOAT

4SR-14985-00-00

$67.99

4

GASKET, FLOAT CHAMBER

4MX-14984-00-00

$24.99

5

PLUG, SCREW

4MX-14115-00-00

$32.99

6

O-RING

4MX-14561-00-00

$6.99

7

VALVE, NEEDLE

4MX-14392-00-00

$43.99

8

PLATE

5BE-14146-00-00

$7.99

9

JET, PILOT (#42)

4MX-14948-04-00

$9.99

9

JET, PILOT (#45)

4MX-14948-05-00

$9.99

9

JET, PILOT (#48)

4MX-14948-06-00

$9.99

9

JET, PILOT (#55)

4MX-14948-09-00

$9.99

9

JET, SLOW (#38)

4MX-14948-02-00

$16.49

9

JET (#40)

4MX-14948-03-00

$17.49

10

. NEEDLE (N4AF)

4XL-14916-AF-00

Unavailable

10

. NEEDLE (N4AG)

4XL-14916-AG-00

Unavailable

10

. NEEDLE (N4AH)

4XL-14916-AH-00

Unavailable

10

. NEEDLE (N4DF)

4XL-14916-DF-00

Unavailable

10

. NEEDLE (N4DG)

4XL-14916-DG-00

Unavailable

10

. NEEDLE (N4DH)

4XL-14916-DH-00

Unavailable

10

. NEEDLE (N3VE)

4XL-14916-VE-00

Unavailable

10

. NEEDLE (N3VF)

4XL-14916-VF-00

Unavailable

10

. NEEDLE (N3VG)

4XL-14916-VG-00

Unavailable

10

. NEEDLE (N3VH)

4XL-14916-VH-00

Unavailable

11

CLIP

4MX-14919-00-00

Unavailable

12

. VALVE ASSEMBLY

4SR-14340-A6-00

Unavailable

12

. VALVE ASSEMBLY

5DJ-14340-A7-00

Unavailable

13

. HOLDER

4SR-14261-00-00

Unavailable

14

. GASKET

4SR-14126-00-00

Unavailable

15

PILOT SCREW SET

4SR-14105-01-00

Unavailable

16

. SPRING, THROTTLE VALVE

4MX-14131-00-00

Unavailable

17

CLIP

633-14159-00-00

Unavailable

18

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

19

. PIPE

4XL-14197-00-00

Unavailable

20

PIPE

4XL-14196-10-00

Unavailable

21

. PIN, FLOAT ARM

663-14548-00-00

Unavailable

22

CLIP

3TJ-14137-40-00

Unavailable

23

JET, MAIN (#165)

4MX-14943-40-00

Unavailable

23

JET, MAIN (#170)

4MX-14943-41-00

Unavailable

23

JET, MAIN (#175)

4MX-14943-42-00

Unavailable

23

JET, MAIN (#180)

4MX-14943-43-00

Unavailable

23

JET, MAIN (#185)

4MX-14943-44-00

Unavailable

23

JET, MAIN (#190)

4MX-14943-45-00

Unavailable

23

JET, MAIN (#168)

4MX-14943-91-00

Unavailable

23

JET, MAIN (#172)

4MX-14943-92-00

Unavailable

23

JET, MAIN (#178)

4MX-14943-93-00

Unavailable

23

JET, MAIN (#182)

4MX-14943-94-00

Unavailable

23

JET, MAIN (#188)

4MX-14943-95-00

Unavailable

23

JET, MAIN (#162)

4MX-14943-90-00

Unavailable

24

RING

4MX-14194-00-00

Unavailable

25

SCREW, PAN HEAD

98511-04012-00

Unavailable

26

HOSE

4XL-1410E-00-00

Unavailable
