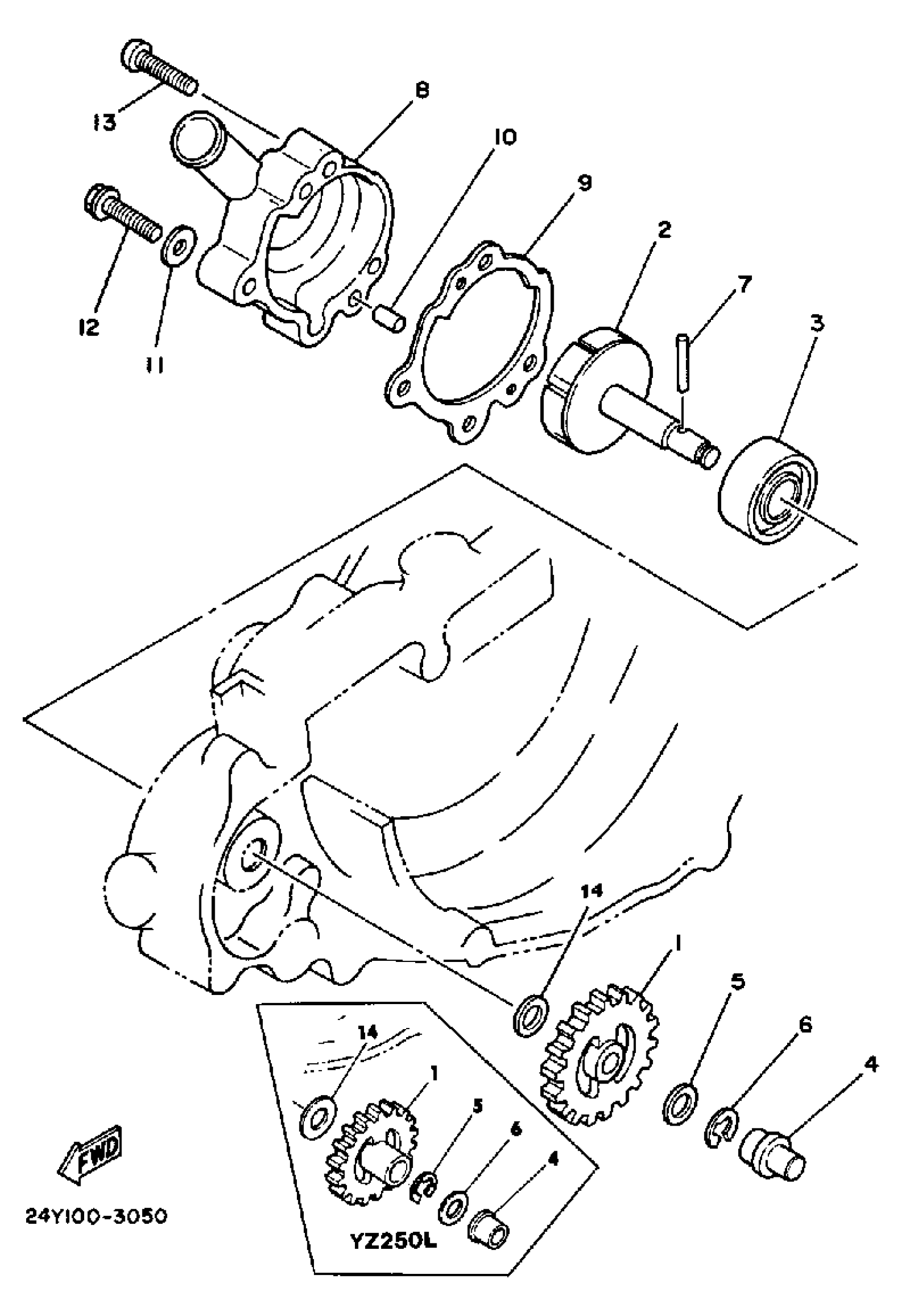

Yamaha YZ250K (YZ250K_L) 1983 WATER PUMP YZ250K L Diagram

#

Description
Price

1

GEAR, IMPELLER SHAF

24Y-12459-00-00

Unavailable

1

GEAR, IMPELLER SHAFT

39X-12459-00-00

Unavailable

2

IMPELLER SHAFT ASSEMBLYASSY

24Y-12450-00-00

Unavailable

2

IMPELLER SHAFT ASSY

39X-12450-00-00

$65.99

3

OIL SEAL

93103-10011-00

$46.99

4

PLUG, STOPPER

24Y-1245A-00-00

Unavailable

4

BUSH (214-17843-00)

90381-08002-00

$11.49

5

WASHER, PLATE (5F7)

90201-08512-00

$8.49

6

CIRCLIP

99080-07600-00

Unavailable

7

PIN,DOWEL (137)

93603-22028-00

$3.76

8

COVER, HOUSING

24Y-12422-00-00

Unavailable

8

COVER, HOUSING

39X-12422-00-00

Unavailable

9

GASKET, COVER HOUSING

5X5-12428-01-00

Unavailable

10

PIN,DOWEL (603)

93604-10011-00

$8.49

11

GASKET (4V2)

90430-06166-00

$3.76

12

BOLT, FLANGE

95817-06025-00

Unavailable

13

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

14

WASHER, PLATE (24Y)

90201-080H1-00

Unavailable

14

WASHER, PLATE(3GM)

90201-106M5-00

Unavailable
