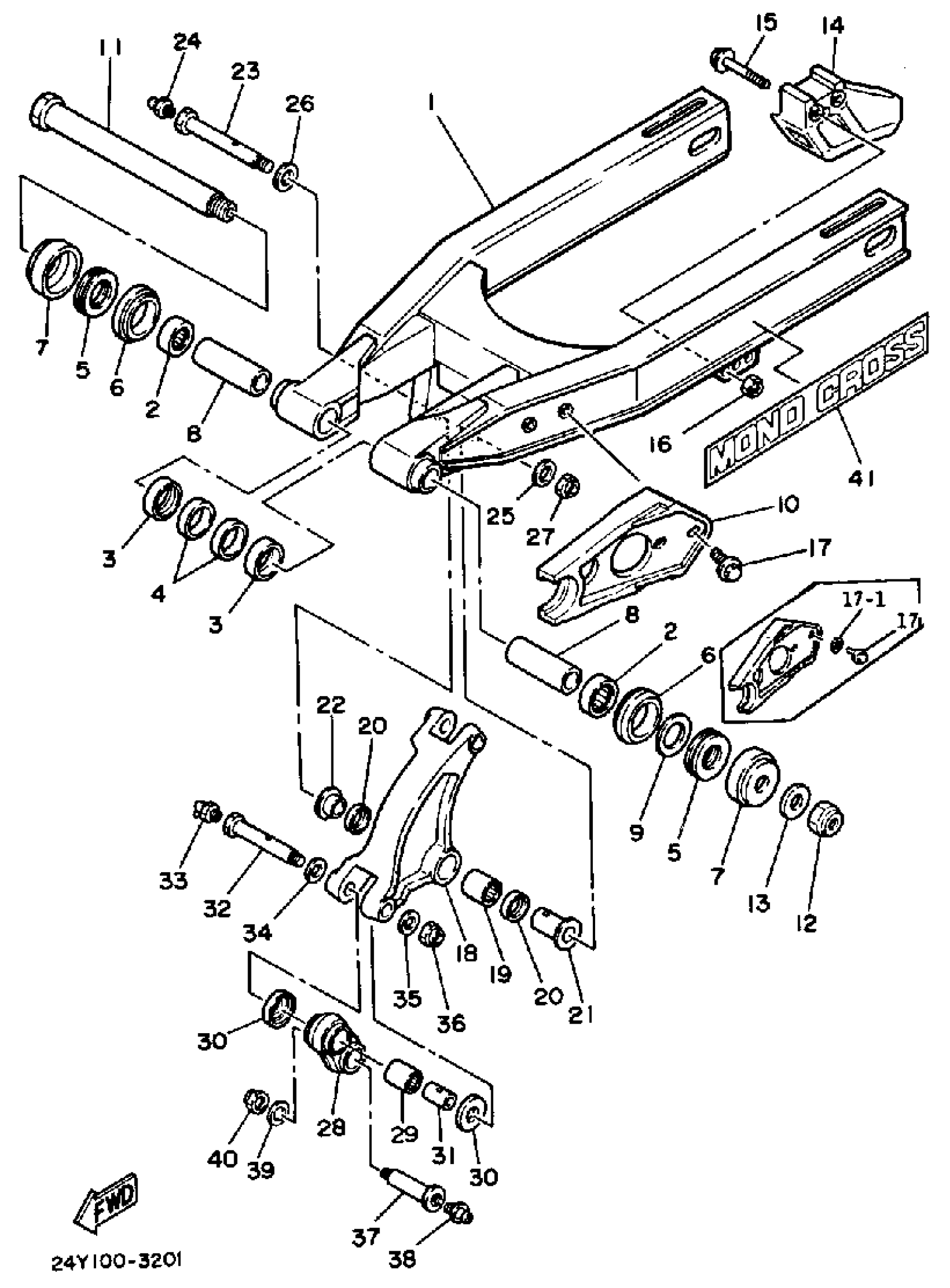

Yamaha YZ250K (YZ250K_L) 1983 SWING ARM YZ250L Diagram

#

Description
Price

1

REAR ARM

39X-22110-00-00

Unavailable

1

WASHER, PLATE

90201-06380-00

$0.60

2

BEARING, CYLINDRICAL (23X)

93317-32231-00

$44.99

3

BUSH, SOLID (23X)

90380-22111-00

$19.99

4

OIL SEAL (23X)

93106-22019-00

$11.49

5

BEARING, THRUST (3R7)

93342-22208-00

$33.99

6

OIL SEAL (35X41.5X8-483)

93108-35004-00

$15.99

7

COVER, THRUST2

3R4-22129-00-00

$32.99

8

BUSH, SOLID (3R4)

90380-16077-00

$42.99

9

SHIM,REAR ARM

240-22127-00-00

$6.99

10

SEAL, GUARD

39W-22151-00-00

$83.99

11

SHAFT, PIVOT

5X6-22141-01-00

Unavailable

12

NUT, SELF-LOCKING

90185-16002-00

$16.99

13

WASHER, PLATE (5X6)

90201-160F6-00

$8.49

14

SUPPORT, CHAIN

23X-22199-00-00

Unavailable

15

BOLT, FLANGE

95817-08055-00

Unavailable

16

NUT, SELF-LOCKING

90185-08169-00

Unavailable

17

BOLT, FLANGE

95817-06020-00

Unavailable

18

ARM, RELAY

(39X-2217A-00-00)

Unavailable

19

BEARING, CYLINDRICAL (23X)

93317-32034-00

Unavailable

20

OIL SEAL

93109-20076-00

Unavailable

21

COLLAR

90387-147G6-00

Unavailable

22

COLLAR (23X)

90387-147G7-00

Unavailable

23

BOLT

90109-12701-00

Unavailable

24

NIPPLE, GREASE

93700-06M03-00

Unavailable

25

WASHER, PLATE (8K2)

90201-120A5-00

Unavailable

26

WASHER, PLATE(3FC)

90201-142M6-00

Unavailable

27

NUT, SELF LOCKING (23X)

90185-12119-00

Unavailable

28

ROD, CONNECTING 1

23X-2217F-00-00

Unavailable

29

BEARING, CYLINDRICAL (23X)

93315-31732-00

Unavailable

30

COVER, THRUST 2

55K-22129-00-00

Unavailable

31

COLLAR (23X)

90387-121H1-00

Unavailable

32

BOLT

90109-10702-00

Unavailable

33

NIPPLE, GREASE

93700-06005-00

Unavailable

34

WASHER, PLATE

90201-12027-00

Unavailable

35

WASHER, PLATE(6TC)

90201-10M05-00

Unavailable

36

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

37

BOLT

90109-10703-00

Unavailable

38

NIPPLE, GREASE

93700-06M03-00

Unavailable

39

WASHER (7A9)

90201-100F7-00

Unavailable

40

NUT, U

95614-10100-00

Unavailable

41

EMBLEM, REAR ARM

5X3-2218A-00-00

Unavailable
