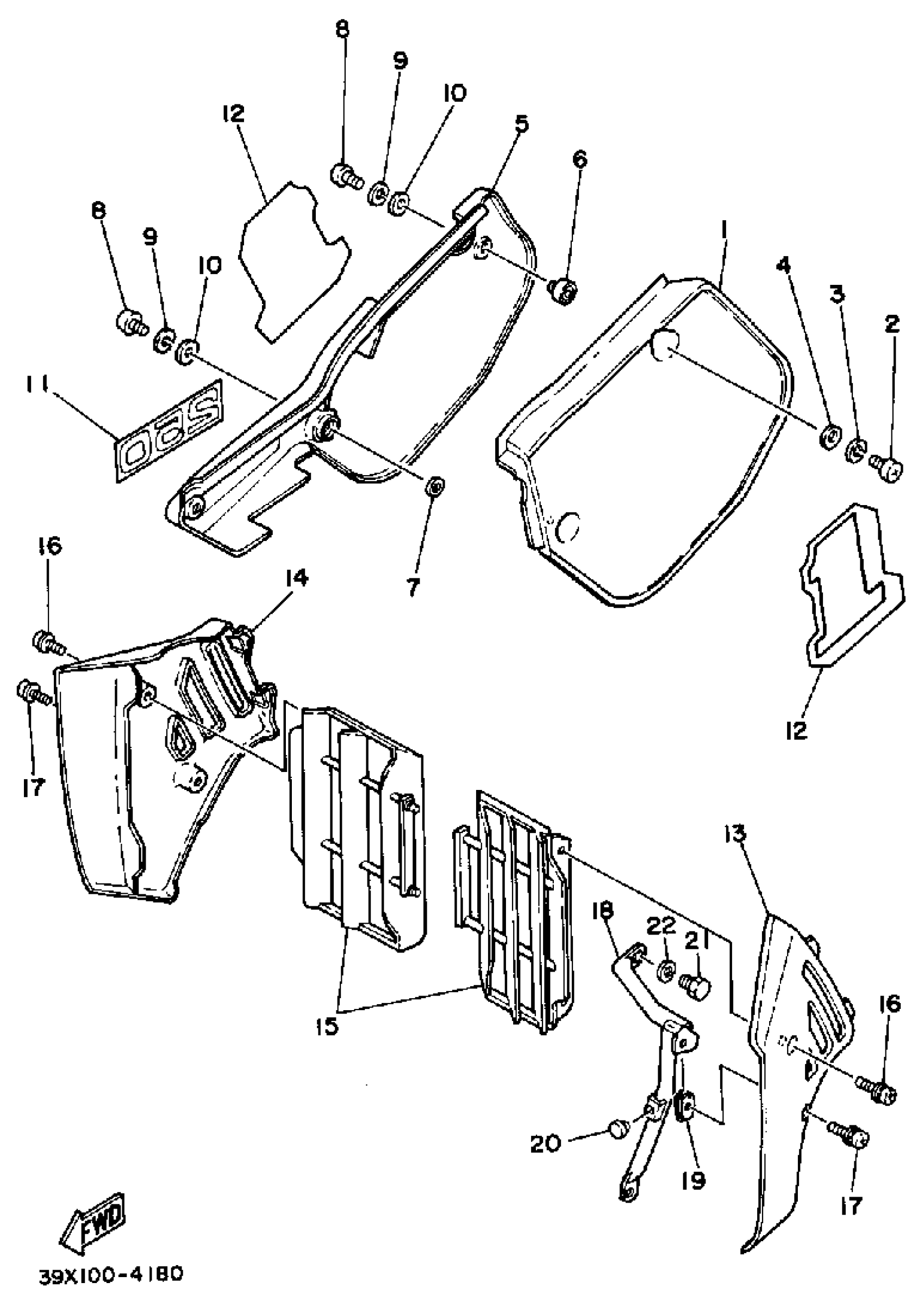

Yamaha YZ250K (YZ250K_L) 1983 SIDE COVER YZ250L Diagram

#

Description
Price

1

COVER, SIDE 1

39X-21711-01-98

Unavailable

2

SCREW, PAN

98507-06014-00

$8.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

5

COVER, SIDE 2

39X-21721-01-98

Unavailable

6

DAMPER, LOCATING 1

22W-24181-00-00

$6.99

7

WASHER, PLAIN

92990-08200-00

Unavailable

8

SCREW, PAN

98507-06014-00

$8.49

9

WASHER, SPRING

92995-06100-00

Unavailable

10

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

11

EMBLEM

39X-21737-00-00

Unavailable

12

EMBLEM 2

3R2-21782-00-00

Unavailable

13

COVER, SIDE 3

39X-21731-00-00

Unavailable

14

COVER, SIDE 4

39X-21741-00-00

Unavailable

15

PANEL 1

24Y-2172A-01-00

Unavailable

16

SCREW, WITH WASHER (22W)

90159-05073-00

Unavailable

17

SCREW, WITH WASHER (22W)

90159-05073-00

Unavailable

18

GUARD, RADIATOR

39X-2174F-00-00

Unavailable

19

NUT

22W-21791-00-00

Unavailable

20

DAMPER, RADIATOR

24X-12465-00-00

Unavailable

21

BOLT(JA9)

90101-08691-00

Unavailable

22

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
