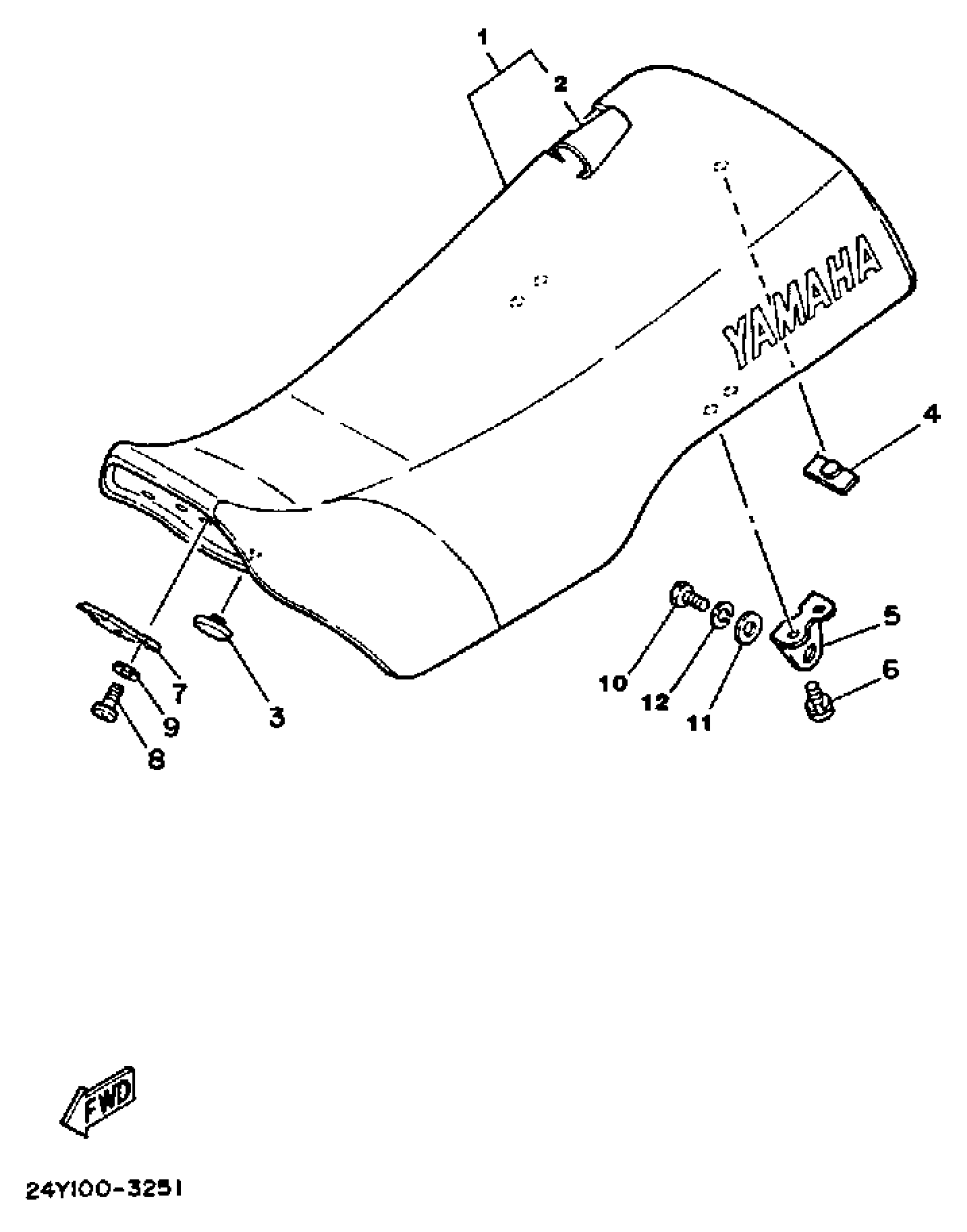

Yamaha YZ250K (YZ250K_L) 1983 SEAT YZ250L Diagram

#

Description
Price

1

SEMI-DOUBLE SEAT ASSEMBLY

39X-W2473-20-00

Unavailable

2

COVER,DOUBLE SEAT

23X-24731-10-00

Unavailable

3

PAD, SEAT

22W-24741-00-00

$8.99

4

DAMPER, SEAT

509-24724-00-00

$10.99

5

BRACKET,SEAT

39W-24738-00-00

Unavailable

6

BOLT, FLANGE

95817-06012-00

$1.43

7

. BRACKET, SEAT

5X6-24748-10-00

Unavailable

8

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

9

WASHER, PLAIN (646)

92990-06600-00

$2.80

10

BOLT(JA9)

90101-08691-00

$4.29

11

WASHER, PLATE (12X)

90201-087F0-00

$5.60

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60
