REAR WHEEL YZ250K L

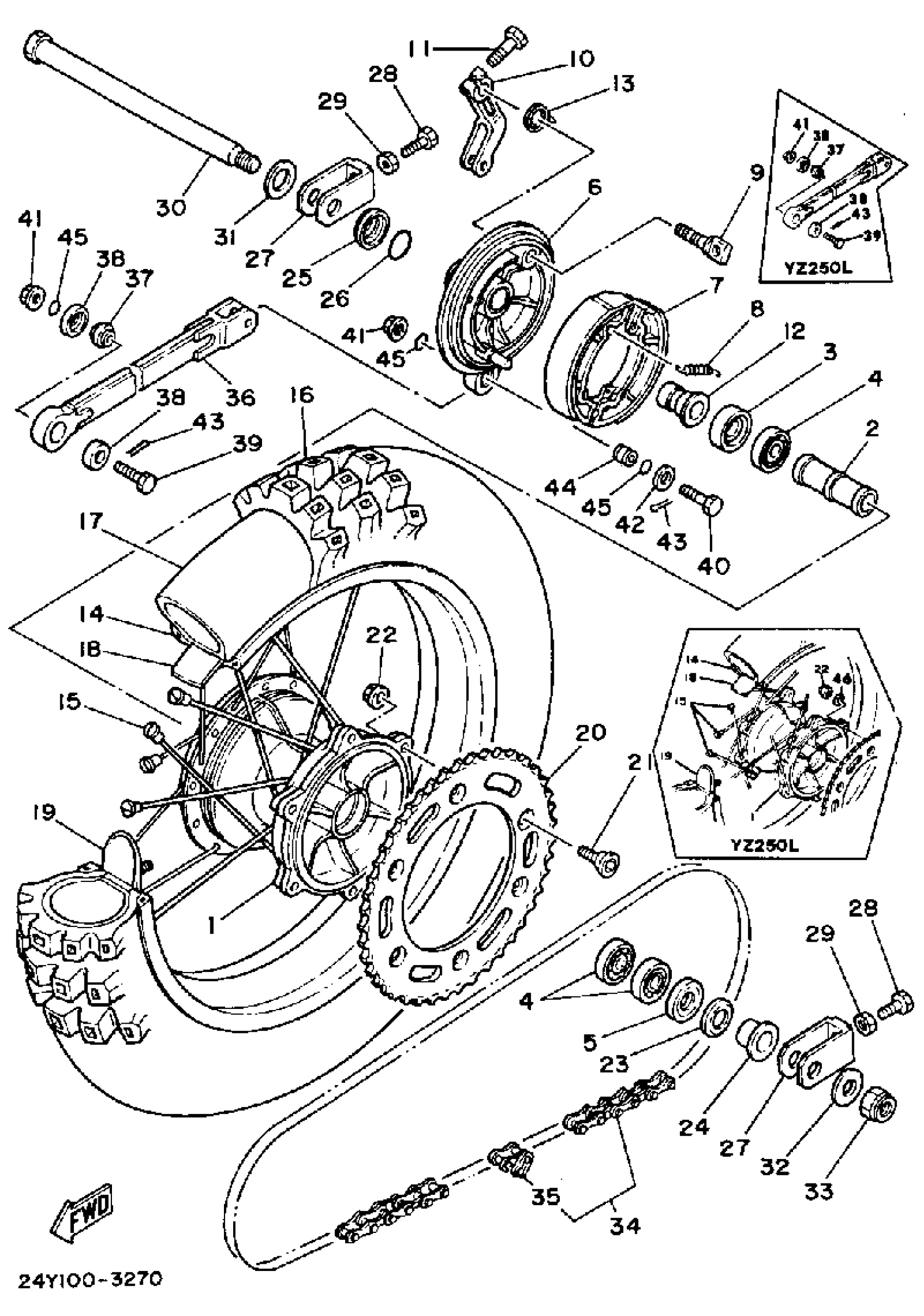

Yamaha YZ250K (YZ250K_L) 1983 REAR WHEEL YZ250K L Diagram
#
1
HUB, REAR
23X-25311-00-98
Unavailable
1
HUB, REAR
56A-25311-00-98
Unavailable
2
SPACER
90560-20226-00
Unavailable
6
PLATE, BRAKE SHOE
23X-25321-00-98
Unavailable
7
BRAKE SHOE SET-2PCS
437-W2536-00-00
Unavailable
8
SPRING (5T9)
90506-17328-00
Unavailable
9
CAMSHAFT
39X-25351-00-00
Unavailable
9
CAMSHAFT
26A-25351-00-00
Unavailable
10
LEVER, CAMSHAFT
5X4-25355-00-00
Unavailable
12
COLLAR
90387-200H1-00
Unavailable
13
SPRING, TORSION
90508-29596-00
Unavailable
14
RIM 2.15X18
94421-18354-00
Unavailable
14
RIM 2.15X18
94421-18383-00
Unavailable
15
SPOKE SET, REAR
24Y-25304-00-00
Unavailable
15
SPOKE SET, REAR
39X-25304-00-00
Unavailable
16
BS 130/80-18M38
(94113-182G3-00)
Unavailable
16
140/80-18 M32 TT
(94114-187A3-00)
Unavailable
17
TUBE (5A8)
94212-18188-00
Unavailable
18
BAND, RIM (2J4)
94340-18086-00
Unavailable
19
SPACER,BEAD
1T1-25394-01-00
Unavailable
19
SPACER, BEAD
39X-25394-00-00
Unavailable
20
SPROCKET, DRIVEN 44T
3R4-25444-01-XX
Unavailable
20
SPROCKET, DRIVEN (45T) (39W-25445-01-00)
3R4-25445-01-XX
Unavailable
20
SPROCKET, DRIVEN 46T
3R4-25446-01-XX
Unavailable
20
SPROCKET, DRIVEN 48T
3R4-25448-01-XX
Unavailable
20
SPROCKET, DRIVEN 50T
3R4-25450-01-XX
Unavailable
20
SPROCKET, DRIVEN 52T
3R4-25452-01-XX
Unavailable
21
BOLT(1TJ)
90109-081G2-00
Unavailable
22
NUT, SELF-LOCKING
90185-08169-00
Unavailable
22
NUT, U
95617-08100-00
Unavailable
23
COVER, HUB DUST
4V4-25367-00-00
Unavailable
24
COLLAR
90387-2000C-00
Unavailable
25
COVER, PLATE
23X-25327-00-00
Unavailable
26
O-RING
93210-31MJ5-00
Unavailable
27
PULLER, CHAIN 1
23X-25388-00-00
Unavailable
27
PULLER, CHAIN 1CHAIN 1
39X-25388-00-00
Unavailable
28
BOLT
90101-08060-00
Unavailable
29
. NUT
95380-08700-00
Unavailable
30
AXLE, WHEEL
23X-25381-00-00
Unavailable
31
WASHER, PLATE (90201-210G3)
90209-21243-00
Unavailable
32
WASHER, PLATE (90201-180G2)
90209-18244-00
Unavailable
33
NUT, SELF-LOCKING
90185-18009-00
Unavailable
34
CHAIN
94580-49112-00
Unavailable
34
CHAIN
9Y581-92111-00
Unavailable
35
. JOINT, CHAIN
94680-49001-00
Unavailable
35
JOINT, CHAIN
94681-68001-00
Unavailable
36
BAR, TENSION
23X-25371-00-00
Unavailable
37
BEARING,SPECIAL
23X-253N4-09-00
Unavailable
38
OIL SEAL
93112-19006-00
Unavailable
39
BOLT, WITH HOLE
90102-08034-00
Unavailable
40
BOLT
90109-08370-00
Unavailable
41
NUT, SELF-LOCKING
90185-08169-00
Unavailable
42
.. WASHER, PLATE
92990-08600-00
Unavailable
43
PIN, COTTER
91490-20025-00
Unavailable
44
COLLAR
90387-083F0-00
Unavailable
45
O-RING (648)
93210-14167-00
Unavailable
45
O-RING (648)
93210-14167-00
Unavailable
46
WASHER, PLATE(3XP)
90201-086P8-00
Unavailable
