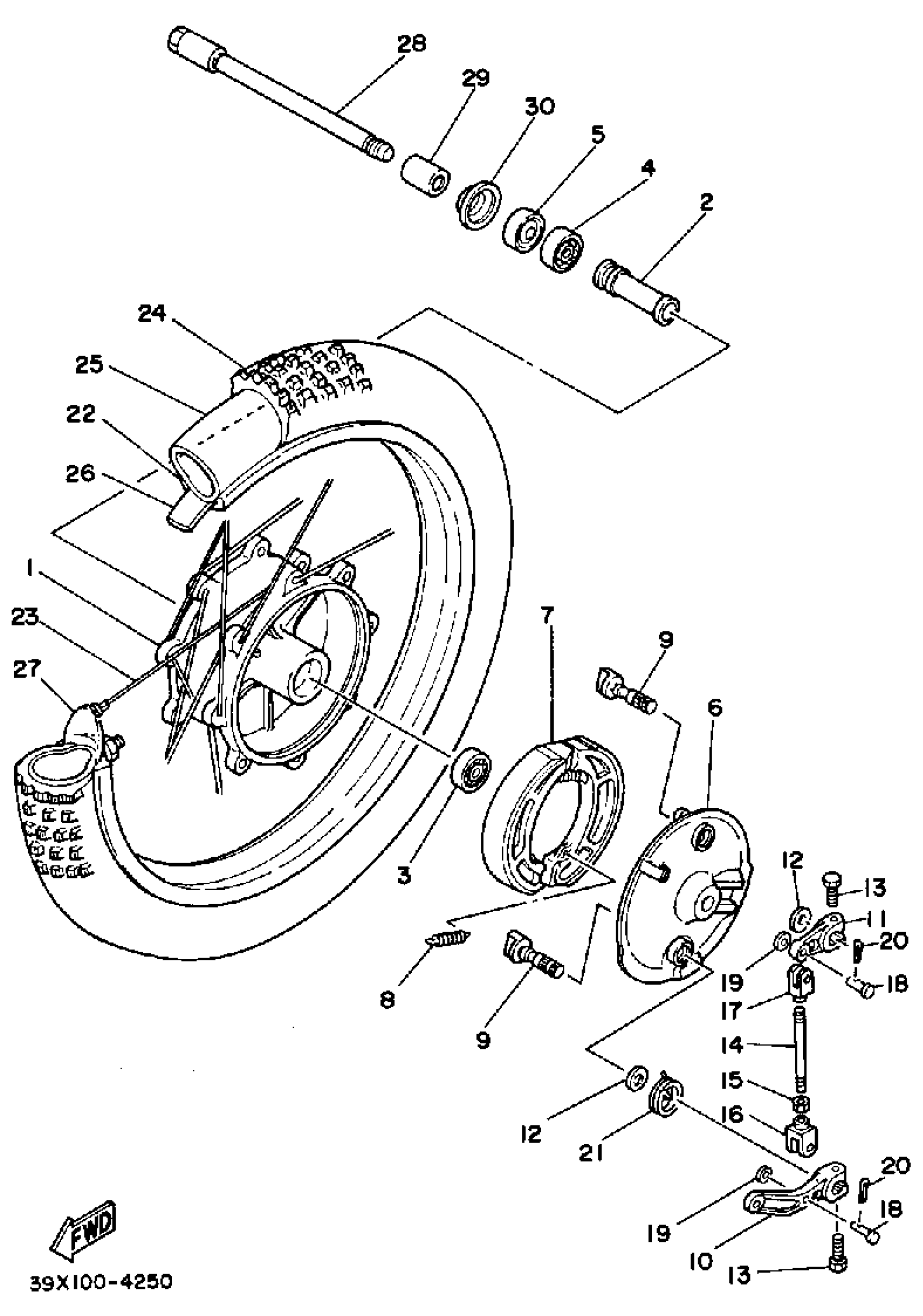

Yamaha YZ250K (YZ250K_L) 1983 FRONT WHEEL YZ250K L Diagram

#

Description
Price

1

HUB, FRONT

23X-25111-00-98

Unavailable

1

HUB, FRONT

38V-25111-00-98

Unavailable

2

SPACER

90560-15116-00

Unavailable

3

BEARING(3DL)

93306-20226-00

$38.99

4

BEARING

93306-20205-00

$38.99

5

OIL SEAL (23X)

93102-20281-00

$14.99

5

OIL SEAL(38V)

93106-20021-00

$14.99

6

PLATE, BRAKE SHOE

5X6-25121-00-98

Unavailable

7

BRAKE SHOE KIT

4V4-W253A-00-00

$29.99

8

SPRING (5T9)

90506-17328-00

Unavailable

9

CAMSHAFT

23X-25151-00-00

Unavailable

10

LEVER, CAMSHAFT

99999-02061-00

Unavailable

11

LEVER, CAMSHAFT 2

99999-02067-00

Unavailable

12

SEAL, CAMSHAFT

137-25159-00-00

Unavailable

12

OIL SEAL

93104-12003-00

$8.49

13

BOLT, HEXAGON (462)

90101-06291-00

Unavailable

14

ROD, CONNECTING

3R5-25161-00-00

Unavailable

15

NUT(650)

95380-06700-00

Unavailable

16

END, ROD 1

152-25163-00-00

Unavailable

17

END, ROD 2

152-25164-00-00

Unavailable

18

PIN, WITH HOLE (248-27228-00)

90240-06006-00

Unavailable

19

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

20

PIN, COTTER

91490-20025-00

Unavailable

21

SPRING, TORSION

90508-20425-00

Unavailable

22

RIM 1.60-21

94416-21357-00

Unavailable

22

RIM 1.60X21

94416-21382-00

Unavailable

23

SPOKE SET, FRONT

23X-25104-00-00

Unavailable

23

SPOKE SET, FRONT

39W-25104-00-00

Unavailable

24

TIRE (80/100-21-4PR)

94108-215H9-00

Unavailable

24

90/80-21 M33 TT

(94109-213A2-00)

Unavailable

25

TUBE 90190-21

94209-21229-00

Unavailable

26

BAND, RIM (2A6)

94330-21084-00

Unavailable

27

SPACER, BEAD

4V5-25194-00-00

Unavailable

28

AXLE, WHEEL

3R4-25181-01-00

Unavailable

29

COLLAR (34L)

90387-152J3-00

Unavailable

30

COVER, HUB DUST

322-25118-00-00

Unavailable
