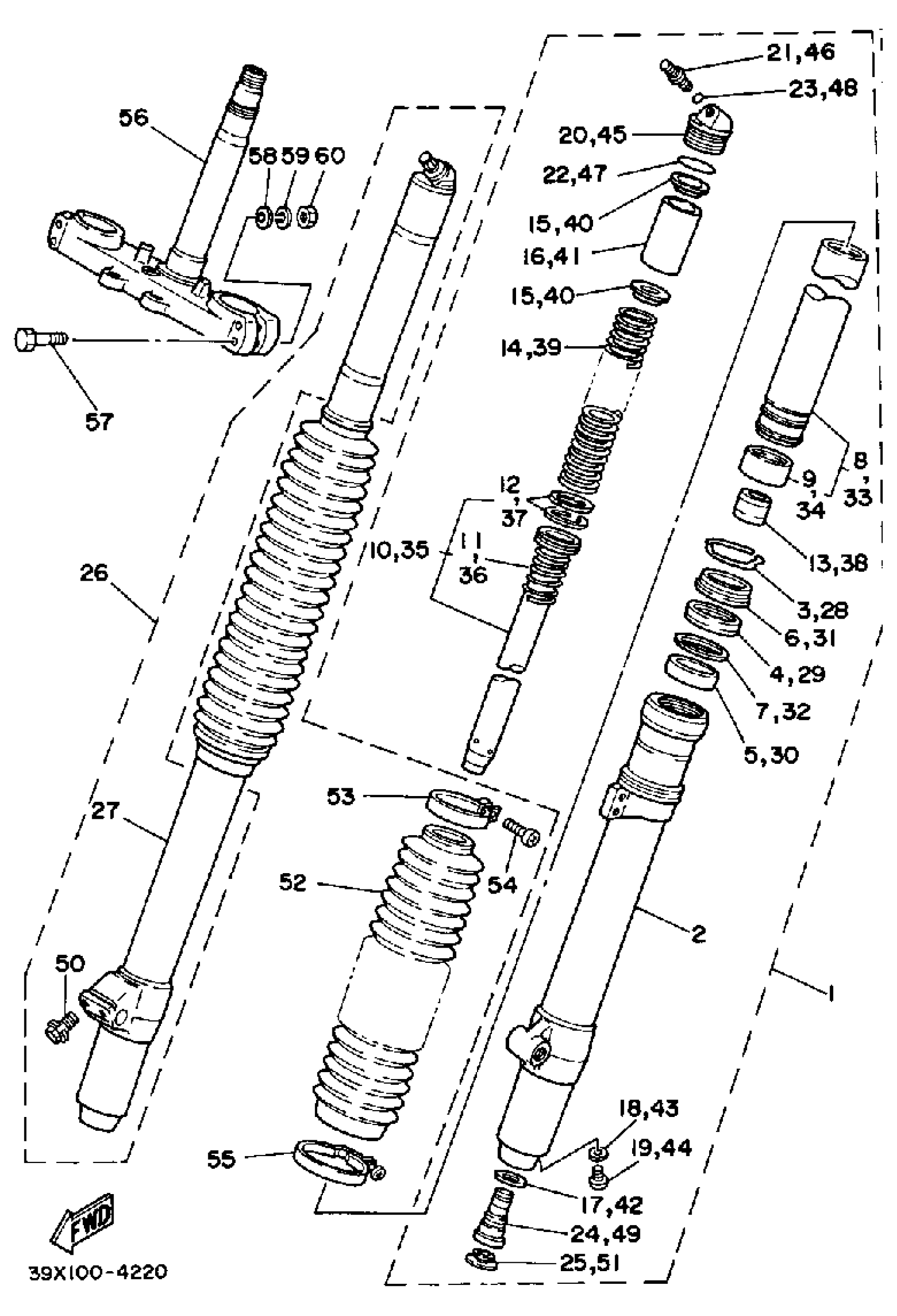

Yamaha YZ250K (YZ250K_L) 1983 FRONT FORK YZ250L Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY L

(39X-23102-L0-00)

Unavailable

2

TUBE, OUTER 1

(39X-23126-00-38)

Unavailable

3

RING, SNAP

4V4-23153-L0-00

$9.99

4

OIL SEAL

23X-23145-L0-00

$32.99

5

METAL, SLIDE 1

5EB-23125-00-00

$32.99

6

SEAL, DUST

23X-23144-L0-00

$27.99

7

WASHER

4V4-23146-L0-00

$6.99

8

. INNER TUBE 1COMP 1

39X-23110-00-00

Unavailable

9

. PISTON, FRONT FORK

4V4-23171-L0-00

Unavailable

10

CYLINDER, FRTFRK

(39X-23170-20-00)

Unavailable

11

.. SPRING, SUB

5X6-23152-L0-00

Unavailable

12

.. RING, PISTON FRONT FORK

4V4-23157-L0-00

Unavailable

13

. SPINDLE, TAPER

23X-23173-L0-00

Unavailable

14

. SPRING, FRONT FORK STD (K@0305)

39X-23141-00-00

Unavailable

14

. SPRING, FRONT FORK SOFT (K@0275)

39X-23141-10-00

Unavailable

14

SPRING, FRONT FORK HARD (K@0.325)

39X-23141-20-00

Unavailable

15

SEAT, SPRING UPPER

4V4-23142-L0-00

Unavailable

16

. SPACER

39X-23118-00-00

Unavailable

17

GASKET

23X-23158-L0-00

Unavailable

18

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

19

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

20

BOLT,CAP

43M-23111-L0-00

Unavailable

21

AIR VALVE COMP.

23X-23190-L0-00

Unavailable

22

O-RING

4V4-23188-L1-00

Unavailable

23

O-RING

3J2-23147-00-00

Unavailable

24

VALVE

43G-2316A-L0-00

Unavailable

25

. PLUG

43M-2312G-L0-00

Unavailable

26

FRONT FORK ASSEMBLY R

(39X-23103-L0-00)

Unavailable

27

TUBE, OUTER 2

(39X-23136-00-38)

Unavailable

28

RING, SNAP

4V4-23153-L0-00

$9.99

29

OIL SEAL

23X-23145-L0-00

$32.99

30

METAL, SLIDE 1

5EB-23125-00-00

$32.99

31

SEAL, DUST

23X-23144-L0-00

$27.99

32

WASHER

4V4-23146-L0-00

$6.99

33

. INNER TUBE 1COMP 1

39X-23110-00-00

Unavailable

34

. PISTON, FRONT FORK

4V4-23171-L0-00

Unavailable

35

CYLINDER, FRTFRK

(39X-23170-20-00)

Unavailable

36

.. SPRING, SUB

5X6-23152-L0-00

Unavailable

37

.. RING, PISTON FRONT FORK

4V4-23157-L0-00

Unavailable

38

. SPINDLE, TAPER

23X-23173-L0-00

Unavailable

39

. SPRING, FRONT FORK STD (K@0305)

39X-23141-00-00

Unavailable

39

. SPRING, FRONT FORK SOFT (K@0275)

39X-23141-10-00

Unavailable

40

SEAT, SPRING UPPER

4V4-23142-L0-00

Unavailable

41

. SPACER

39X-23118-00-00

Unavailable

42

GASKET

23X-23158-L0-00

Unavailable

43

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

44

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

45

BOLT,CAP

43M-23111-L0-00

Unavailable

46

AIR VALVE COMP.

23X-23190-L0-00

Unavailable

47

O-RING

4V4-23188-L1-00

Unavailable

48

O-RING

3J2-23147-00-00

Unavailable

49

VALVE

43G-2316A-L0-00

Unavailable

50

. BOLT, HEXAGON SOCKET HEAD

5X6-23181-L0-00

Unavailable

51

. PLUG

43M-2312G-L0-00

Unavailable

52

BOOT, FRONT FORK

39X-23191-00-00

Unavailable

53

BAND

43M-23192-L0-00

Unavailable

54

SCREW, PAN HEAD

98507-04018-00

Unavailable

55

BAND

3LD-23489-00-00

Unavailable

56

UNDER BRACKET

39X-23340-00-00

Unavailable

57

BOLT (1E6)

90101-08340-00

Unavailable

58

.. WASHER, PLATE

92990-08600-00

Unavailable

59

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

60

NUT(6L2)

95333-08600-00

Unavailable
