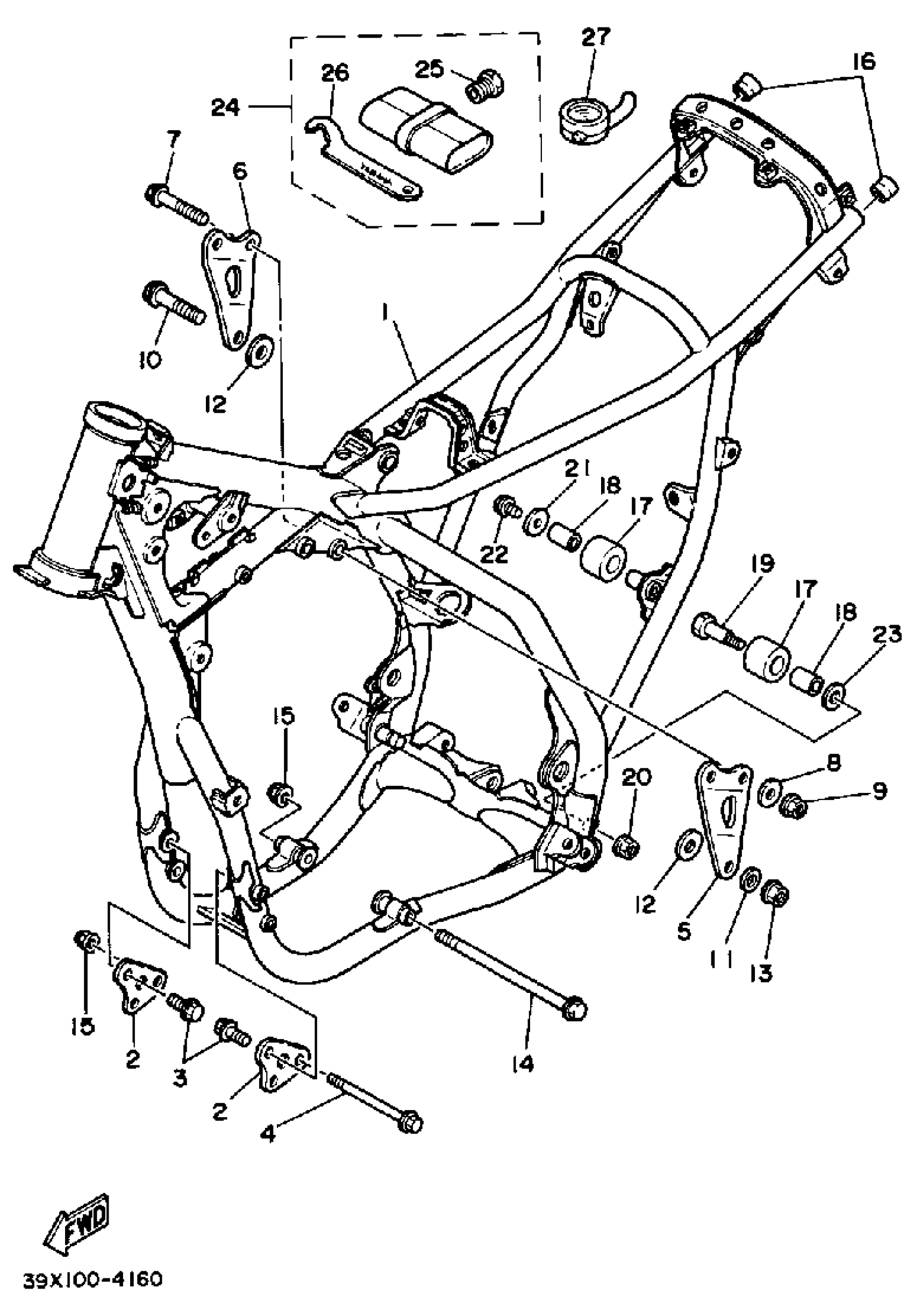

Yamaha YZ250K (YZ250K_L) 1983 FRAME TOOL YZ250L Diagram

#

Description
Price

1

FRAME

(39X-21110-00-33)

Unavailable

2

BRACKET, FRONT UPPER 1

24Y-21415-00-00

Unavailable

3

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

4

BOLT, FLANGE

95817-08100-00

$5.60

5

BRACKET, REAR UPPER 1

39X-21425-00-00

Unavailable

6

BRACKET, REAR UPPER 2

39X-21426-00-00

Unavailable

7

BOLT, FLANGE

95817-08055-00

$4.21

8

WASHER 6464313202

90202-08022-00

$4.14

9

NUT, SELF-LOCKING

90185-08169-00

$8.49

10

BOLT, FLANGE(87Y)

95817-10055-00

$5.60

11

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

12

WASHER, PLATE (3J6)

90201-100A1-00

$8.49

13

NUT, SELF-LOCKING

90185-10170-00

$9.49

14

BOLT, FLANGE

95817-08180-00

Unavailable

15

NUT, SELF-LOCKING

90185-08169-00

$8.49

16

PLUG (2K5)

90339-13005-00

Unavailable

17

TENSIONER

30X-22178-00-00

Unavailable

18

BUSH

4V4-22184-00-00

Unavailable

19

BOLT (23X)

90109-08705-00

Unavailable

20

NUT, SELF-LOCKING

90185-08169-00

$8.49

21

WASHER, PLATE(8AT)

90201-081R9-00

Unavailable

22

BOLT, FLANGE

95817-08012-00

Unavailable

23

WASHER, PLATE

90201-13013-00

Unavailable

24

TOOL KIT

39W-W2810-00-00

Unavailable

25

PULLER, ROTOR

(2K7-85555-00-00)

Unavailable

26

SPANNER,SPECIAL

1HX-28135-00-00

Unavailable

27

GAUGE, AIR

2X4-2811A-01-00

Unavailable
