Description

Price

1

FENDER, FRONT

5X6-21511-01-00

$43.99

2

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

3

COLLAR (8G8)

90387-06681-00

$9.49

4

BOLT(3DM)

97024-06020-00

$8.49

5

WASHER(6TA)

92907-06700-00

$1.86

6

FENDER, REAR

3R4-21611-00-00

$86.99

6

FENDER, REAR

3R4-21611-10-00

Unavailable

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

8

WASHER(6TA)

92907-06700-00

$1.86

9

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

10

GUARD, MUD

39X-21620-00-00

Unavailable

11

BAND, SWITCH CORD

437-83936-01-00

$7.99

12

GUARD, FLAP

39X-21642-00-00

$80.99

13

BOLT (661)

97013-06012-00

$5.60

14

WASHER, PLAIN (646)

92990-06600-00

$2.80

15

PLATE 1

4V2-21543-01-00

Unavailable

16

BOLT, HEXAGON

97017-06020-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

WASHER, PLATE

90201-06M08-00

Unavailable

19

NUT, SELF-LOCKING

95617-06100-00

Unavailable

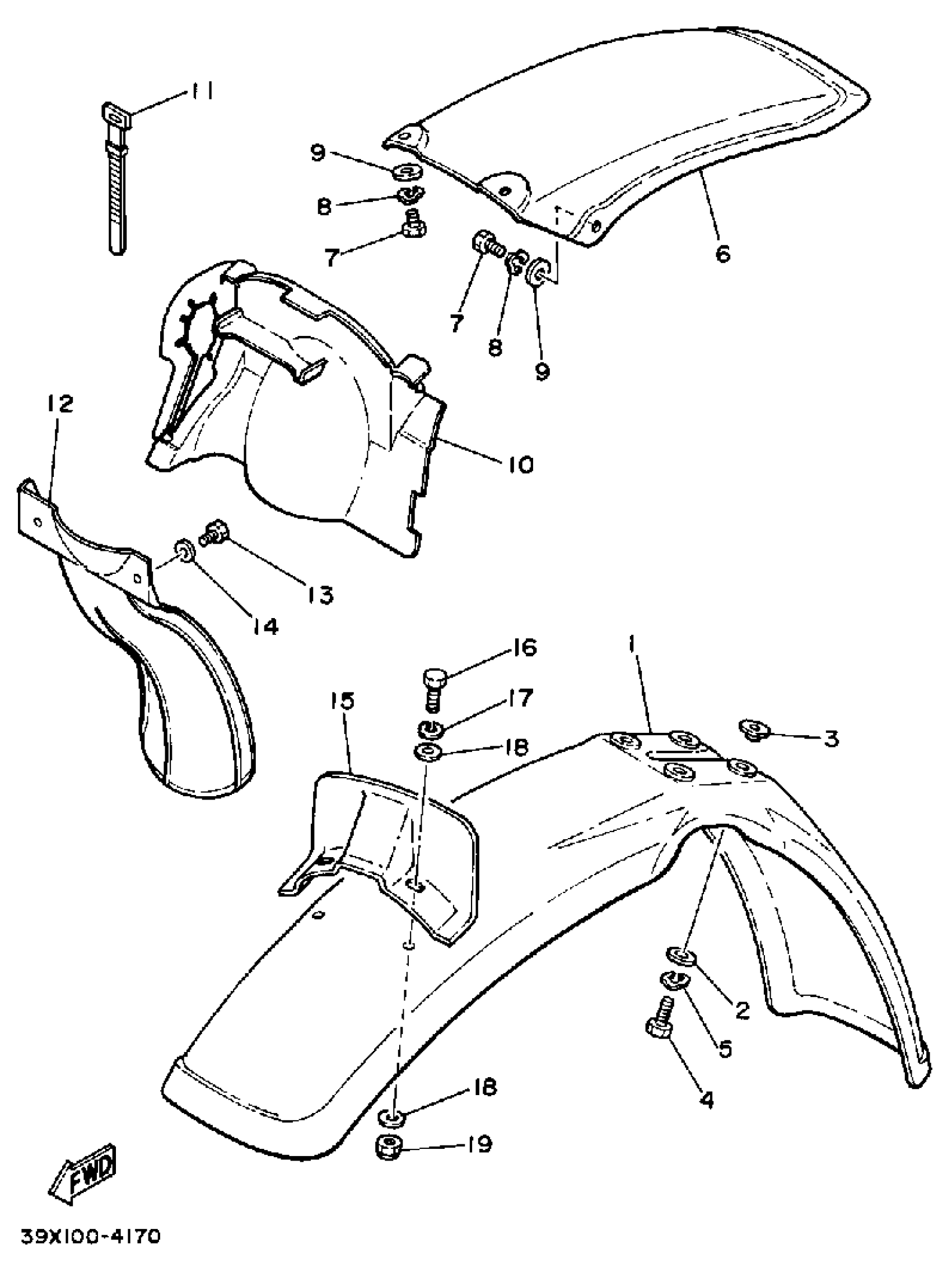

Yamaha YZ250K (YZ250K_L) 1983 FENDER YZ250L Diagram

FENDER, FRONT

WASHER, PLATE (583 REAR FENDER

COLLAR (8G8)

BOLT(3DM)

WASHER(6TA)

FENDER, REAR

FENDER, REAR

BOLT, HEXAGON DEEP RECESS

WASHER(6TA)

WASHER, PLATE (583 REAR FENDER

GUARD, MUD

BAND, SWITCH CORD

GUARD, FLAP

BOLT (661)

WASHER, PLAIN (646)

PLATE 1

BOLT, HEXAGON

WASHER, SPRING

WASHER, PLATE

NUT, SELF-LOCKING
