Description

Price

1

FENDER, FRONT

5X6-21511-01-00

$43.99

2

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

3

WASHER (3R8)

90209-06187-00

$8.49

4

BOLT(3DM)

97024-06020-00

$8.49

5

WASHER(6TA)

92907-06700-00

$1.86

6

FENDER, REAR

3R4-21611-00-00

$86.99

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

8

WASHER(6TA)

92907-06700-00

$1.86

9

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

10

MUD GUARD COMP

23X-21620-00-00

Unavailable

11

BAND, SWITCH CORD

437-83936-01-00

$7.99

12

GUARD, FLAP

23X-21642-00-00

Unavailable

13

PLATE 1

4V2-21543-01-00

Unavailable

14

BOLT, HEXAGON

97017-06020-00

$4.06

15

WASHER, SPRING

92995-06100-00

Unavailable

16

WASHER, PLATE

90201-06M08-00

Unavailable

17

NUT, SELF-LOCKING

95617-06100-00

Unavailable

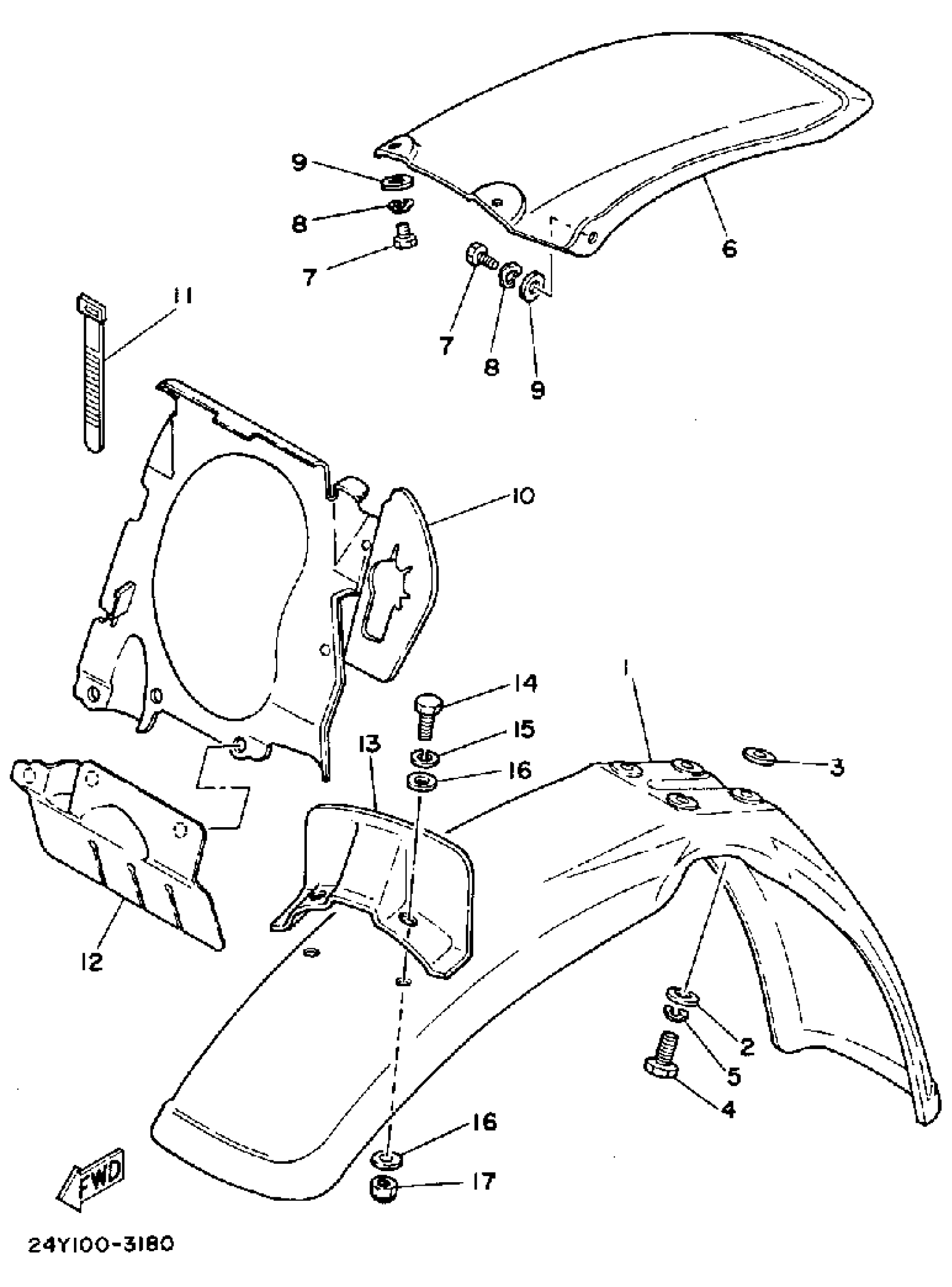

Yamaha YZ250K (YZ250K_L) 1983 FENDER YZ250K Diagram

FENDER, FRONT

WASHER, PLATE (583 REAR FENDER

WASHER (3R8)

BOLT(3DM)

WASHER(6TA)

FENDER, REAR

BOLT, HEXAGON DEEP RECESS

WASHER(6TA)

WASHER, PLATE (583 REAR FENDER

MUD GUARD COMP

BAND, SWITCH CORD

GUARD, FLAP

PLATE 1

BOLT, HEXAGON

WASHER, SPRING

WASHER, PLATE

NUT, SELF-LOCKING
