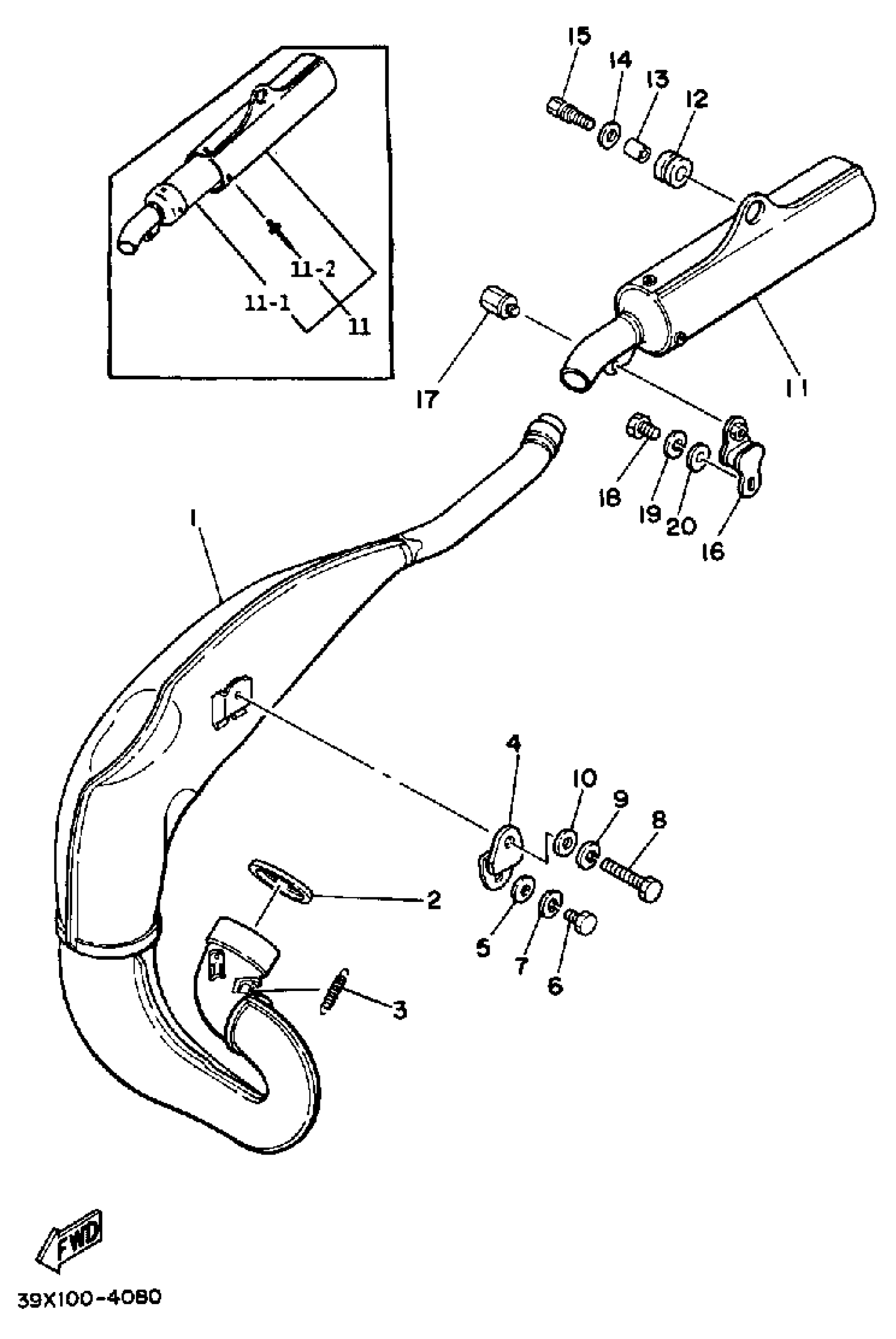

Yamaha YZ250K (YZ250K_L) 1983 EXHAUST YZ250L Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L

(39X-14610-00-00)

Unavailable

1

FIBER

(39X-1469A-00-00)

Unavailable

2

GASKET

24Y-14613-10-00

Unavailable

2

. RIVET, BLIND

90267-40115-00

Unavailable

3

SPRING, TENSION (1W4)

90507-20030-00

$14.99

4

STAY, MUFFLER 1

24Y-14771-00-00

Unavailable

5

WASHER, PLATE (12X)

90201-087F0-00

$5.60

6

BOLT(JA9)

90101-08691-00

$4.29

7

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

8

BOLT (663)

97013-08060-00

$4.41

9

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

10

.. WASHER, PLATE

92990-08600-00

Unavailable

11

SILENCER, EXHAUST

56A-14753-00-00

Unavailable

12

DAMPER, MUFFLER

39X-14747-00-00

Unavailable

13

COLLAR

90387-081A3-00

Unavailable

14

WASHER, PLATE (1A0)

90201-08612-00

Unavailable

15

BOLT, HEXAGON (2X4)

90109-08512-00

Unavailable

16

STAY, MUFFLER 1

565-14771-01-00

Unavailable

17

BOLT (3R4)

90109-06551-00

Unavailable

18

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

WASHER, PLAIN (646)

92990-06600-00

Unavailable
