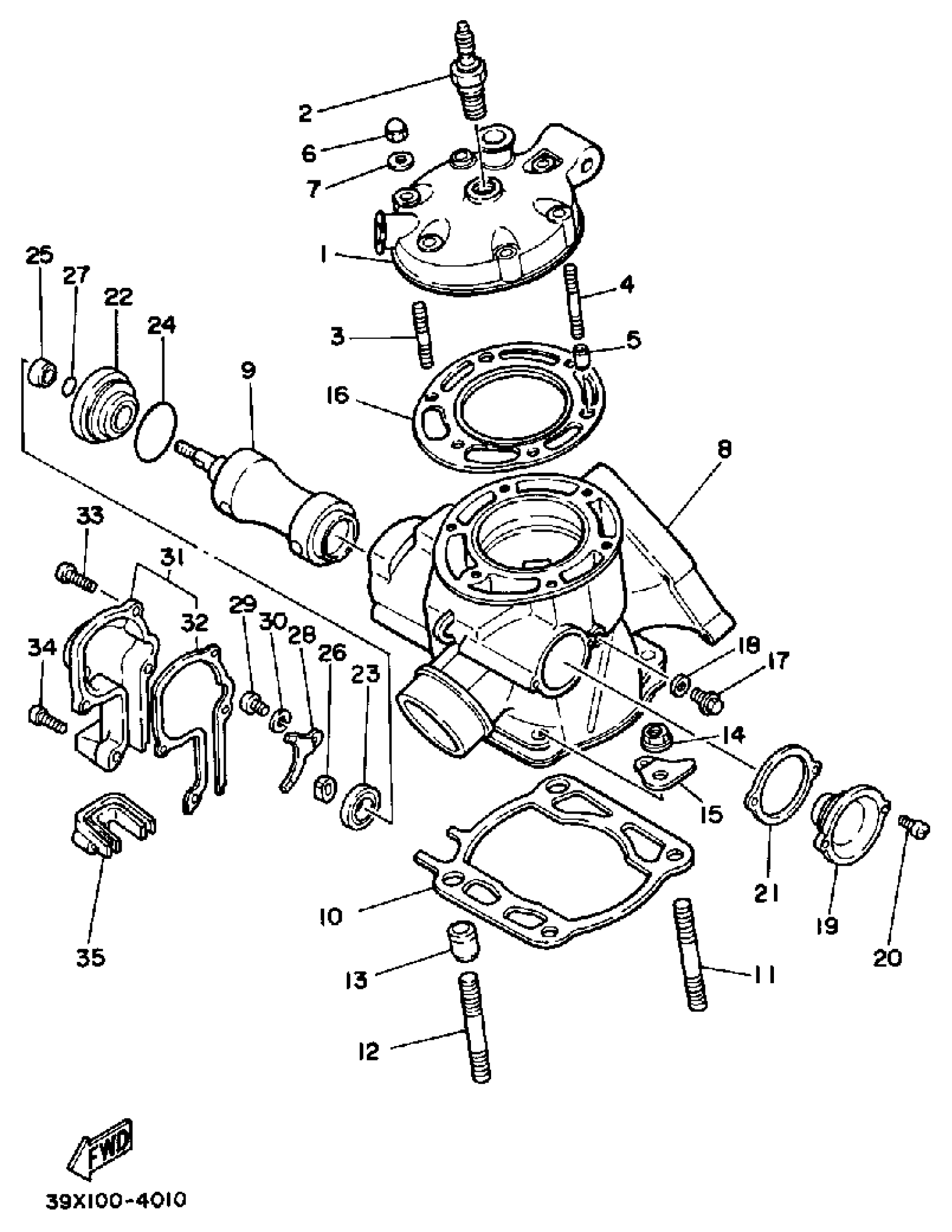

Yamaha YZ250K (YZ250K_L) 1983 CYLINDER YZ250L Diagram

#

Description
Price

1

HEAD, CYLINDER 1

39X-11111-00-00

Unavailable

2

B8EG NGK SPLUG 4PK

B8E-G0000-00-00

Unavailable

3

BOLT, STUD (5V6)

90116-08394-00

$11.49

4

BOLT, STUD (5X4)

90116-08392-00

$4.51

5

PIN, DOWEL(3VD)

99530-10114-00

$2.55

6

NUT, CROWN (4G0)

90176-08026-00

$14.99

7

WASHER, PLATE 3411117500

90201-08087-00

$3.71

8

CYLINDER 1

39X-11311-00-00

Unavailable

9

VALVE 1

39X-1131A-00-00

Unavailable

10

GASKET, CYLINDER

39X-11351-02-00

Unavailable

11

BOLT, STUD

90116-10313-00

Unavailable

12

BOLT, STUD (3R4)

90116-10314-00

$4.46

13

PIN, DOWEL

99530-14016-00

$3.80

14

NUT, FLANGE(3BM)

95704-10500-00

$4.29

15

HOOK, SPRING

39X-14619-00-00

Unavailable

16

GASKET, CYL.HEAD

56A-11181-01-00

Unavailable

17

BOLT, FLANGE

95817-06012-00

Unavailable

18

GASKET (4V2)

90430-06166-00

Unavailable

19

HOLDER 1

39X-W1132-00-00

Unavailable

20

SCREW, PAN

98517-05012-00

Unavailable

21

GASKET, HOLDER

5X5-1131N-01-00

Unavailable

22

HOLDER 2

5X5-W1133-00-00

Unavailable

23

OIL SEAL (5X4)

93104-16074-00

Unavailable

24

O-RING (5X4)

93210-35512-00

Unavailable

25

COLLAR(3JE)

90387-102W0-00

Unavailable

26

BOSS, COLLAR

5X5-11937-00-00

Unavailable

27

O-RING (341)

93210-09192-00

Unavailable

28

PLATE, THRUST 1

56A-11915-00-00

Unavailable

29

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

30

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

31

HOUSING 2

39X-11992-01-00

Unavailable

32

GASKET,YPVS HOUSIN

39X-11993-01-00

Unavailable

33

SCREW, PAN HEAD

98517-05020-00

Unavailable

34

SCREW, PAN HEAD

90157-05M19-00

Unavailable

35

SEAL, HOUSING

39X-11995-00-00

Unavailable
