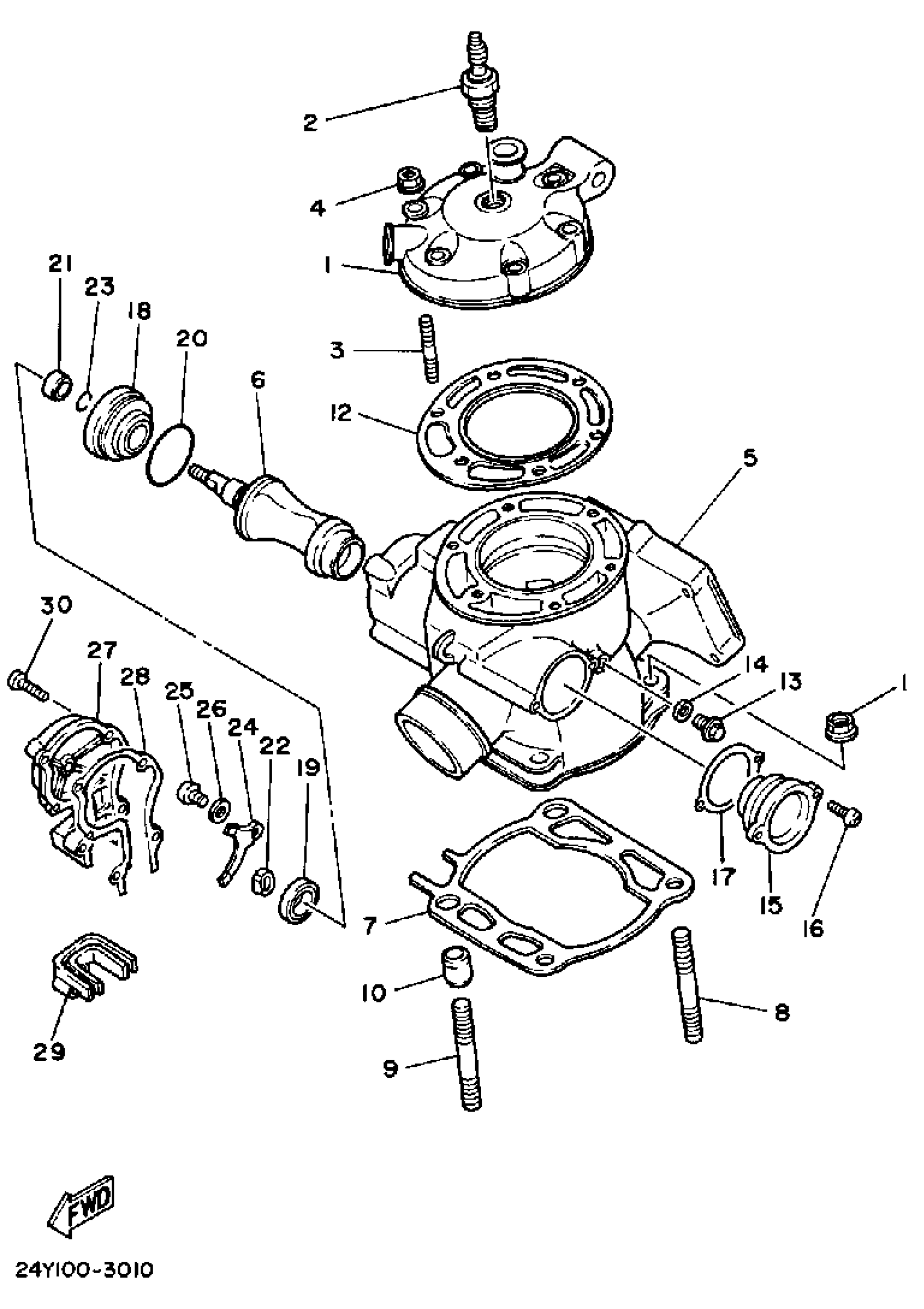

Yamaha YZ250K (YZ250K_L) 1983 CYLINDER YZ250K Diagram

#

Description
Price

1

HEAD, CYLINDER 1

(24Y-11111-00-00)

Unavailable

2

B8EG NGK SPLUG 4PK

B8E-G0000-00-00

Unavailable

3

BOLT, STUD (5V6)

90116-08394-00

$11.49

4

NUT(55X)

90179-08491-00

$8.49

5

CYLINDER 1

24Y-11311-00-00

Unavailable

6

VALVE 1

24Y-1131A-00-00

Unavailable

7

GASKET, CYLINDER

39X-11351-02-00

Unavailable

8

BOLT, STUD

90116-10313-00

Unavailable

9

BOLT, STUD (3R4)

90116-10314-00

$4.46

10

PIN, DOWEL

99530-14016-00

$3.80

11

NUT, FLANGE(3BM)

95704-10500-00

$4.29

12

GASKET8CYL AD1

24Y-11181-01-00

Unavailable

13

BOLT, FLANGE

95817-06012-00

$1.43

14

GASKET (4V2)

90430-06166-00

$3.76

15

HOLDER 1

24Y-W1132-00-00

Unavailable

16

SCREW, PAN

98517-05012-00

Unavailable

17

GASKET, HOLDER

5X5-1131N-01-00

Unavailable

18

HOLDER 2

5X5-W1133-00-00

Unavailable

19

OIL SEAL (5X4)

93104-16074-00

Unavailable

20

O-RING (5X4)

93210-35512-00

Unavailable

21

COLLAR(3JE)

90387-102W0-00

Unavailable

22

BOSS, COLLAR

5X5-11937-00-00

Unavailable

23

O-RING (341)

93210-09192-00

Unavailable

24

PLATE, THRUST 1

56A-11915-00-00

Unavailable

25

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

26

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

27

HOUSING 2

24Y-11992-01-00

Unavailable

28

GASKET,YPVS HOUSIN

24Y-11993-01-00

Unavailable

29

SEAL, HOUSING

5X5-11995-00-00

Unavailable

30

SCREW, PAN HEAD

98517-05020-00

Unavailable
