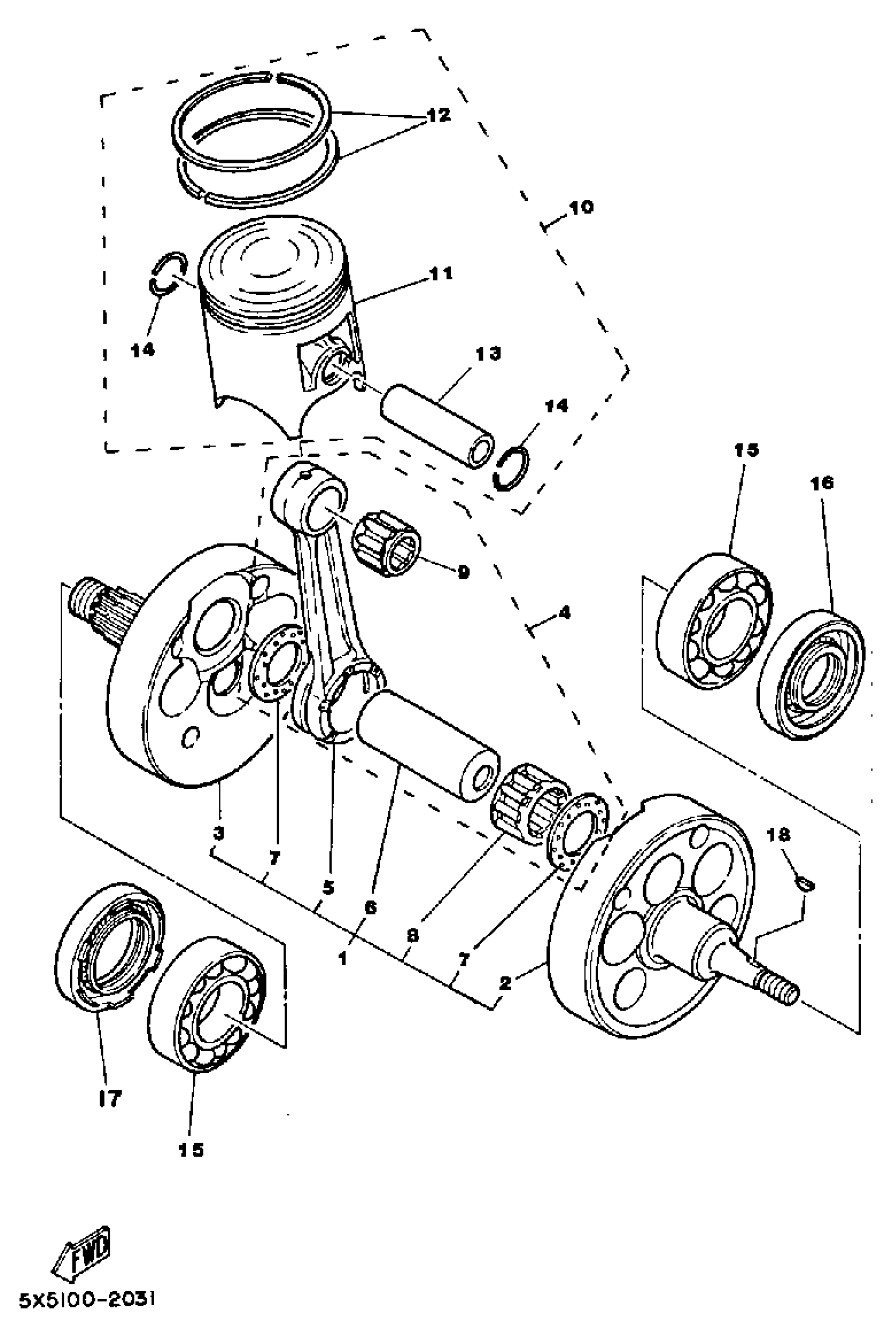

Yamaha YZ250K (YZ250K_L) 1983 CRANK PISTON YZ250L Diagram

CRANKSHAFT ASSEMBLY

24Y-11400-01-00

Unavailable

. CRANK 1

24Y-11412-01-00

Unavailable

. CRANK 2

24Y-11422-01-00

Unavailable

. CONNECTING ROD ASSEMBLY

24Y-11650-01-00

Unavailable

. ROD, CONNECTING

24Y-11651-01-00

Unavailable

PIN, CRANK

2X4-11681-00-00

$81.99

WASHER 275116850000

90209-25085-00

$12.49

BEARING, CYLINDRICAL(4JW)

93310-425P2-00

Unavailable

BEARING,CON-ROD SMALLEND(2X5)

93310-418E9-00

$48.99

PISTON KIT STD

39X-11630-00-00

Unavailable

. PISTON STD

39X-11631-00-94

Unavailable

PISTON RING SET (STD)

56A-11601-00-00

Unavailable

PIN, PISTON

214-11633-00-00

Unavailable

CIRCLIP (2F1)

93450-19052-00

$7.49

BEARING (5X5)

93306-20627-00

$75.99

OIL SEAL(38V)

93103-30150-00

Unavailable

OIL SEAL (434)

93103-40091-00

Unavailable

PISTON RING SET (0.50MM O/S)

56A-11601-20-00

Unavailable

PISTON RING SET (0.75MM O/S)

56A-11601-30-00

Unavailable

PISTON RINGSET 4TH (4TH O/S)

39X-11601-40-00

Unavailable

PISTON KIT 1ST

39X-11630-10-00

Unavailable

PISTON KIT 2ND

39X-11630-20-00

Unavailable

PISTON KIT 3RD

39X-11630-30-00

Unavailable

PISTON KIT 4TH

39X-11630-40-00

Unavailable

PISTON 1 O/S 0.25 (1ST O/S 0.25MM)

39X-11635-00-00

Unavailable

PISTON 2 O/S 0.50 (2ND O/S 0.50MM)39X-11637-00-00

39X-11636-00-00

Unavailable

PISTON 4 O/S 1.00 (4TH O/S 1.00MM)

39X-11638-00-00

Unavailable

PISTON RING SET (0.25MM O/S)

56A-11601-10-00

Unavailable

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable
